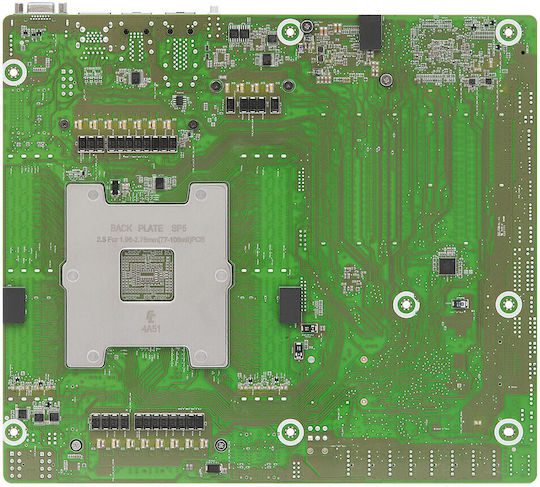

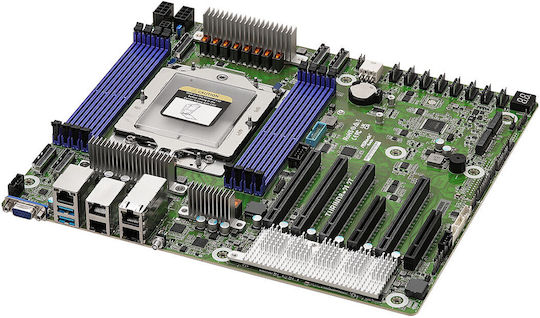

ASRock TURIND8-2L2T SoC Motherboard SSI CEB with AMD SP5 Socket TURIND8-2L2T
Motherboards

ASRock TURIND8-2L2T SoC Motherboard SSI CEB with AMD SP5 Socket TURIND8-2L2T

Key features:

  • 8 DDR5 Ram slots up to 6400
  • Support for PCI Express 5.0 x16
  • VGA connections
  • Slots for 10x Sata III
  • 2 USB 3.2 ports
See full description

  • Socket

    The processor socket type.

    The processor we choose should have the same socket in order to fit into the motherboard.

    In addition to the socket, the motherboard chipset must also be supported by the processor.

  • Size

    The size of the motherboard is expressed with a code name (standard).
    2. We make sure that the computer case in which the motherboard will be installed supports the corresponding standard in order to fit it.

    SSI CEB

    Typical layout for servers/workstations, similar to E-ATX.

  • Usage

    Server

    Motherboards designed for use in server computers.

  • Chipset

    The motherboard chip that manages connections with motherboard components (e.g. CPU, RAM memory, hard disk, USB ports).

    The processor we choose must support the motherboard chipset in order to be 100% compatible with each other and to fully utilize the motherboard connections.

    If the motherboard chipset is supported by the processor, then the socket will also be compatible.



  • Memory

    Memory Type and RAM Slots

    Indicates the type of RAM memory supported by the motherboard (e.g., DDR4, DDR5) and the number of slots (DIMM slots) for the modules, which determines how much memory can be installed in total.
  • See all
Review the product
Product report

Description

Description

The Asrock TURIND8-2L2T is a specialized motherboard in CEB form factor, designed for workstations and compact servers with a single processor. Based on the Socket SP5, it offers a powerful platform for modern AMD EPYC™ processors, combining DDR5 memory support with extensive PCIe expansion options. With integrated high-speed networking and flexible NVMe/SATA storage interfaces, it provides the ideal balance between expandability and space-saving for professional CAD, virtualization, and engineering environments.

Support for Socket SP5 and AMD EPYC™

The TURIND8-2L2T is designed around the Socket SP5, offering full compatibility with the latest generation of server processors. This platform enables the utilization of a vast number of cores and threads from a single processor, making it ideal for demanding tasks such as content creation and complex engineering computations. The SP5 architecture ensures that your system will have the necessary computing power to handle modern workloads with maximum efficiency.

Compact CEB Form Factor and Ergonomics

The CEB (Compact Electronics Bay) design allows the motherboard to occupy less space than traditional server boards, without sacrificing expansion capabilities. This size makes it ideal for compact rackmount systems or tower workstations where space is limited. Asrock has followed the industry-standard mounting for connectors and headers, significantly simplifying the installation process in compatible chassis and reducing assembly complexity.

Next Generation DDR5 Memory

The motherboard fully supports industry-standard DDR5 memory modules, offering significantly higher bandwidth and speeds compared to the previous DDR4 generation. DDR5 technology is essential for managing large data sets and improving performance in virtualization environments. With support for multiple memory channels from the SP5 processor, the TURIND8-2L2T ensures that data flow to the CPU remains uninterrupted and extremely fast under any conditions.

Extensive PCIe Expansion Options

For professionals who require additional power, the board features multiple PCIe expansion slots in a standard layout. This allows the installation of high-end graphics cards for CAD applications, AI accelerators, or additional network cards and storage controllers. The arrangement of the slots has been designed to allow proper airflow between the cards, ensuring that your hardware stays cool even during intensive computing tasks. 12" inches (expansion slot size).

Networking and High-Demand Storage

Asrock has equipped the motherboard with integrated high-speed Ethernet interfaces, typical for the class of workstation and server motherboards. This networking ensures ultra-fast file transfers and stable connection to corporate networks. At the same time, the onboard connectors for NVMe and SATA devices offer flexibility in the choice of storage media, allowing the creation of high-speed arrays for file services or compute tasks that require instant access to large-scale data.

Standard Connectivity and Integration

The TURIND8-2L2T follows the standard ATX-compatible power connector layout, making it easy to connect with most power supplies on the market. The system headers for chassis integration are placed in easily accessible locations, ensuring clean cable management. It is the ideal foundation for custom systems where absolute balance between expandability and space efficiency is required, offering the professional reliability demanded by modern businesses and design engineers.

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Product Details

Size
SSI CEB

Size

The size of the motherboard is expressed with a code name (standard).
2. We make sure that the computer case in which the motherboard will be installed supports the corresponding standard in order to fit it.

SSI CEB
Typical layout for servers/workstations, similar to E-ATX.
Type
Server

Type

Server
Motherboards designed for use in server computers.

Processor

Supported Processors
AMD
Models
Epyc
Socket
SP5

Socket

The processor socket type.

The processor we choose should have the same socket in order to fit into the motherboard.

In addition to the socket, the motherboard chipset must also be supported by the processor.

Chipset

Model
SoC

Model

The motherboard chip that manages connections with motherboard components (e.g. CPU, RAM memory, hard disk, USB ports).

The processor we choose must support the motherboard chipset in order to be 100% compatible with each other and to fully utilize the motherboard connections.

If the motherboard chipset is supported by the processor, then the socket will also be compatible.



Memory

Memory type
DDR5

Memory type

The type of RAM memory that is compatible with the motherboard.

DDR5

The latest memory type, with speed starting from 4000 MT/s.
Quantity
8 DIMM Slots
Memory Speeds
6400

Memory Speeds

The supported RAM memory speeds.

The RAM and processor that will be installed in the computer should be able to reach these speeds, while special settings may be required to reach maximum speeds.
Memory Channels
Quad Channel

Memory Channels

Quad Channel
The installation of four identical RAM memory modules that will work in parallel and provide more speed to applications that require a lot of memory (e.g. video editing) is possible. For example, if four identical 4GB RAM memories are installed in a quad channel motherboard, they will have better performance than installing one 16GB or two 8GB ones.

Internal Connectors

PCI Express x16 5.0
4 Slot

PCI Express x16 5.0

The available PCI Express x16 5.0 expansion card slots of the motherboard.
SATA III 6Gb/s
10 Port

SATA III 6Gb/s

Modern hard drive connection standard.

Most SSD hard drives require this standard to perform at their maximum potential.
M.2 Type
2 PCIe 5.0 Ports

M.2 Type

The number and type of available slots for installing M.2 SSD units.
M.2 Slots
0

External Connectors

Rear USB-A outputs
2 USB 3.2 Ports
Ethernet (LAN)
4

Ethernet (LAN)

The number of ethernet ports for wired connection to a network that the motherboard has on its back panel.
Screen Connections
VGA

Specifications

RGB Lighting
No
WiFi/Bluetooth
No

Top Specs

Memory
8x DDR5

Memory

Memory Type and RAM Slots

Indicates the type of RAM memory supported by the motherboard (e.g., DDR4, DDR5) and the number of slots (DIMM slots) for the modules, which determines how much memory can be installed in total.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

Product Details

Size
SSI CEB

Size

The size of the motherboard is expressed with a code name (standard).
2. We make sure that the computer case in which the motherboard will be installed supports the corresponding standard in order to fit it.

SSI CEB
Typical layout for servers/workstations, similar to E-ATX.
Type
Server

Type

Server
Motherboards designed for use in server computers.

Processor

Supported Processors
AMD
Models
Epyc
Socket
SP5

Socket

The processor socket type.

The processor we choose should have the same socket in order to fit into the motherboard.

In addition to the socket, the motherboard chipset must also be supported by the processor.

Chipset

Model
SoC

Model

The motherboard chip that manages connections with motherboard components (e.g. CPU, RAM memory, hard disk, USB ports).

The processor we choose must support the motherboard chipset in order to be 100% compatible with each other and to fully utilize the motherboard connections.

If the motherboard chipset is supported by the processor, then the socket will also be compatible.



Memory

Memory type
DDR5

Memory type

The type of RAM memory that is compatible with the motherboard.

DDR5

The latest memory type, with speed starting from 4000 MT/s.
Quantity
8 DIMM Slots
Memory Speeds
6400

Memory Speeds

The supported RAM memory speeds.

The RAM and processor that will be installed in the computer should be able to reach these speeds, while special settings may be required to reach maximum speeds.
Memory Channels
Quad Channel

Memory Channels

Quad Channel
The installation of four identical RAM memory modules that will work in parallel and provide more speed to applications that require a lot of memory (e.g. video editing) is possible. For example, if four identical 4GB RAM memories are installed in a quad channel motherboard, they will have better performance than installing one 16GB or two 8GB ones.

Internal Connectors

PCI Express x16 5.0
4 Slot

PCI Express x16 5.0

The available PCI Express x16 5.0 expansion card slots of the motherboard.
SATA III 6Gb/s
10 Port

SATA III 6Gb/s

Modern hard drive connection standard.

Most SSD hard drives require this standard to perform at their maximum potential.
M.2 Type
2 PCIe 5.0 Ports

M.2 Type

The number and type of available slots for installing M.2 SSD units.
M.2 Slots
0

External Connectors

Rear USB-A outputs
2 USB 3.2 Ports
Ethernet (LAN)
4

Ethernet (LAN)

The number of ethernet ports for wired connection to a network that the motherboard has on its back panel.
Screen Connections
VGA

Specifications

RGB Lighting
No
WiFi/Bluetooth
No

Top Specs

Memory
8x DDR5

Memory

Memory Type and RAM Slots

Indicates the type of RAM memory supported by the motherboard (e.g., DDR4, DDR5) and the number of slots (DIMM slots) for the modules, which determines how much memory can be installed in total.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

Description

The Asrock TURIND8-2L2T is a specialized motherboard in CEB form factor, designed for workstations and compact servers with a single processor. Based on the Socket SP5, it offers a powerful platform for modern AMD EPYC™ processors, combining DDR5 memory support with extensive PCIe expansion options. With integrated high-speed networking and flexible NVMe/SATA storage interfaces, it provides the ideal balance between expandability and space-saving for professional CAD, virtualization, and engineering environments.

Support for Socket SP5 and AMD EPYC™

The TURIND8-2L2T is designed around the Socket SP5, offering full compatibility with the latest generation of server processors. This platform enables the utilization of a vast number of cores and threads from a single processor, making it ideal for demanding tasks such as content creation and complex engineering computations. The SP5 architecture ensures that your system will have the necessary computing power to handle modern workloads with maximum efficiency.

Compact CEB Form Factor and Ergonomics

The CEB (Compact Electronics Bay) design allows the motherboard to occupy less space than traditional server boards, without sacrificing expansion capabilities. This size makes it ideal for compact rackmount systems or tower workstations where space is limited. Asrock has followed the industry-standard mounting for connectors and headers, significantly simplifying the installation process in compatible chassis and reducing assembly complexity.

Next Generation DDR5 Memory

The motherboard fully supports industry-standard DDR5 memory modules, offering significantly higher bandwidth and speeds compared to the previous DDR4 generation. DDR5 technology is essential for managing large data sets and improving performance in virtualization environments. With support for multiple memory channels from the SP5 processor, the TURIND8-2L2T ensures that data flow to the CPU remains uninterrupted and extremely fast under any conditions.

Extensive PCIe Expansion Options

For professionals who require additional power, the board features multiple PCIe expansion slots in a standard layout. This allows the installation of high-end graphics cards for CAD applications, AI accelerators, or additional network cards and storage controllers. The arrangement of the slots has been designed to allow proper airflow between the cards, ensuring that your hardware stays cool even during intensive computing tasks. 12" inches (expansion slot size).

Networking and High-Demand Storage

Asrock has equipped the motherboard with integrated high-speed Ethernet interfaces, typical for the class of workstation and server motherboards. This networking ensures ultra-fast file transfers and stable connection to corporate networks. At the same time, the onboard connectors for NVMe and SATA devices offer flexibility in the choice of storage media, allowing the creation of high-speed arrays for file services or compute tasks that require instant access to large-scale data.

Standard Connectivity and Integration

The TURIND8-2L2T follows the standard ATX-compatible power connector layout, making it easy to connect with most power supplies on the market. The system headers for chassis integration are placed in easily accessible locations, ensuring clean cable management. It is the ideal foundation for custom systems where absolute balance between expandability and space efficiency is required, offering the professional reliability demanded by modern businesses and design engineers.

Manufacturer

Manufacturer Details

Warnings & Safety Information
