Shunt Bridge for Misc Industrial Building Equipment ee10927
Misc Industrial Building Equipment

Shunt Bridge for Misc Industrial Building Equipment ee10927

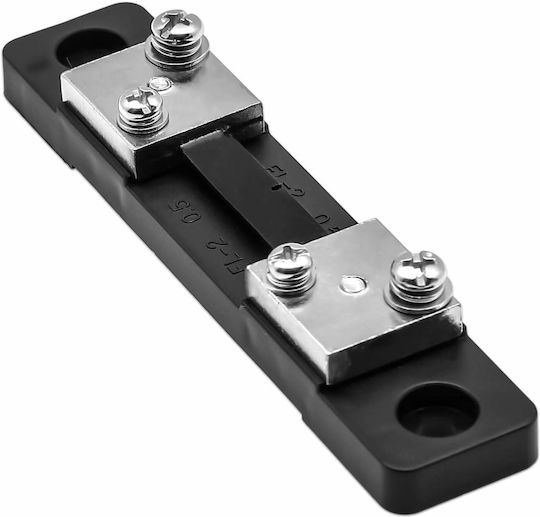

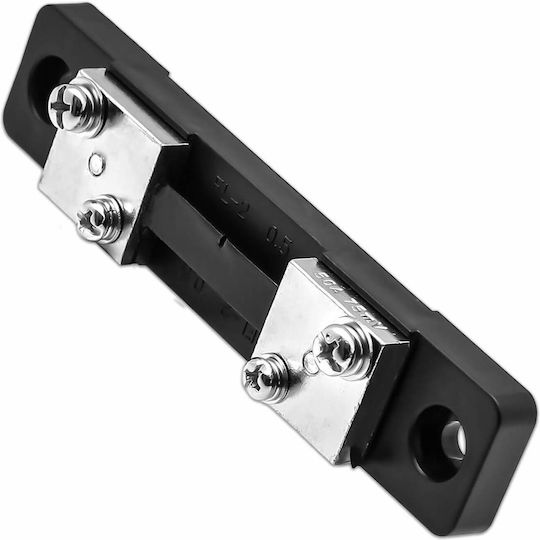

The Shunt ee10927 measures current in DC applications when used with ammeters, BMS units, inverters, and battery systems. It provides a voltage drop of 75 mV DC and has Class 0.5 accuracy (0.5%).

It...

The Shunt ee10927 measures current in DC applications when used with ammeters, BMS units, inverters, and battery systems. It provides a voltage drop of 75 mV DC and has Class 0.5 accuracy (0.5%).

It is made of metal and plastic and features a mounting base with holes spaced 59 mm apart. The power cables connect to the large terminals, while the measurement...

See full description See full description
5 00 €
Delivery by Mon, 09 Nov
14,00 €   shipping cost
Sent from Greece
From ElectronicaEshop 5.0 (16)
5.0 (16 reviews)
Greece
1 piece
See Industrial Materials on the page of ElectronicaEshop

Shop selection criteria

Why do we recommend buying from this shop?

We don’t only look at the price. We weigh different factors to find an offer that combines a good price, fast delivery and a reliable purchase.

  • Product price

    We calculate the total price you will pay and any discounts available from the shop.

  • Shipping & delivery time

    We check how quickly the product can be shipped and when you will receive it, based on your address.

  • Shop reliability

    We look at how often shops complete their orders successfully and how consistently they serve their customers.

  • Official reseller

    Where available, we take into account whether the shop is an official reseller of the brand.

Learn more about invoicing
Review the product
Product report

Description

Description

The Shunt ee10927 measures current in DC applications when used with ammeters, BMS units, inverters, and battery systems. It provides a voltage drop of 75 mV DC and has Class 0.5 accuracy (±0.5%).

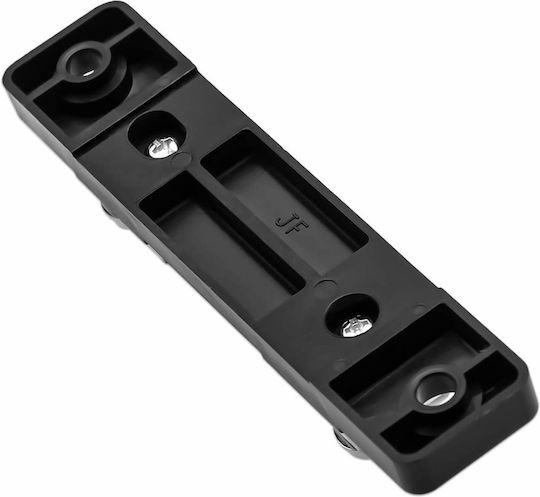

It is made of metal and plastic and features a mounting base with holes spaced 59 mm apart. The power cables connect to the large terminals, while the measurement cables connect to the small screws.

  • Type: FL-2
  • Maximum current: 50 A
  • Output voltage: 75 mV DC
  • Accuracy: Class 0.5 (±0.5%)
  • Materials: Metal and plastic
  • Mounting hole spacing: 59 mm

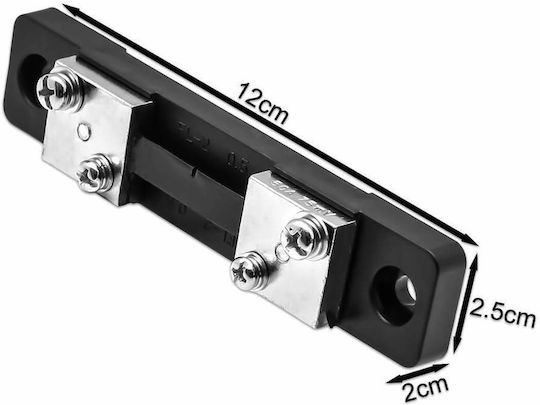

  • Dimensions: 12 × 2.5 × 2 cm
  • Dimensions of metal connection plate: 23 × 22 mm
  • Weight: 0.067 kg
  • Color: Black and silver
  • Package contents: 1 Shunt

Manufacturer

OEM

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Type
Bridge

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

The Shunt ee10927 measures current in DC applications when used with ammeters, BMS units, inverters, and battery systems. It provides a voltage drop of 75 mV DC and has Class 0.5 accuracy (±0.5%).

It is made of metal and plastic and features a mounting base with holes spaced 59 mm apart. The power cables connect to the large terminals, while the measurement cables connect to the small screws.

  • Type: FL-2
  • Maximum current: 50 A
  • Output voltage: 75 mV DC
  • Accuracy: Class 0.5 (±0.5%)
  • Materials: Metal and plastic
  • Mounting hole spacing: 59 mm
  • Dimensions: 12 × 2.5 × 2 cm
  • Dimensions of metal connection plate: 23 × 22 mm
  • Weight: 0.067 kg
  • Color: Black and silver
  • Package contents: 1 Shunt
