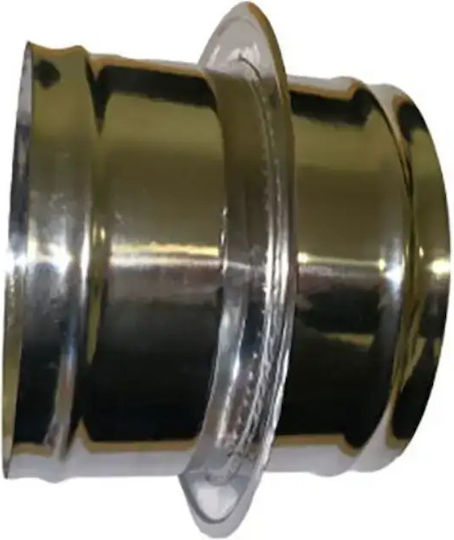

The single-wall adapter for dual-wall female construction is made from stainless, non-magnetic steel AISI 304 BA. In accordance with the European Union directive for construction products 89/106/EEC, the chimney has undergone the necessary inspections and complies with all requirements for CE marking, according to the standards EN 1856-1 and EN 1856-2. The certification has been carried out by the recognized body Dedal – Attestation and Certification Ltd. and quality control has been performed through the management systems ISO 9001:2015 of SGS TUV SAAR.
Available diameters Ø:
- Φ80/130
- Φ100/150
- Φ125/180
- Φ130/180
- Φ150/200
- Φ180/230
- Φ200/250
- Φ230/300
- Φ250/300
- Φ300/350
- Φ350/400
General characteristics:
- Self-welding of ducts and fittings
- Male – female configuration
- Steel thickness: 0.40 mm
- Insulation with 25 mm ceramic wool, density 96 kg/m³
- Easy assembly of ducts
- Sealed with high-temperature silicone flange 200°C
- Resistance to continuous temperatures 600°C
- Resistance to temperatures up to 800°C for short periods
It is recommended to use the single-wall adapter for dual-wall female construction in pellet units, oil boilers, energy fireplaces, energy stoves, and gas boilers, for outdoor installation.
- Product Number
- PT717449
- Type
- Reducers
- Material
- Inox
- Colour
- -
- Diameter
- 250 mm
