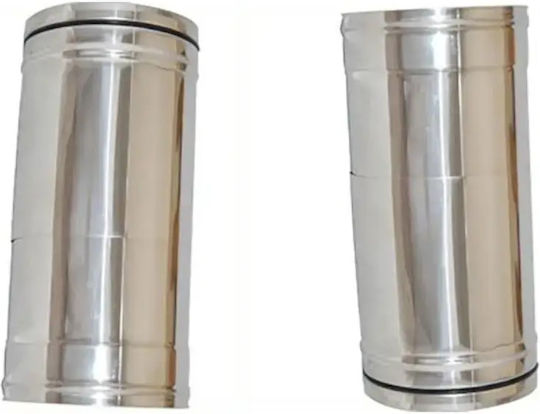

Telescope Pipe Made of Stainless Steel Inox Single Wall

The telescopic single wall pipe is manufactured from stainless, non-magnetic steel AISI 304 BA. According to the European Union directive for construction products 89/106/EEC, the chimney has undergone the required inspections and meets all the conditions of CE marking requirements, in accordance with EN 1856-1 and EN 1856-2. The certification has been carried out by the recognized body Dedal – Attestation and Certification Ltd., and quality control has been established through the ISO 9001:2015 management systems of SGS TUV SAAR.

Available Diameters Ø:

• Φ80
• Φ100
• Φ120
• Φ125
• Φ130
• Φ150
• Φ160
• Φ180
• Φ200
• Φ230
• Φ250
• Φ300
• Φ350
• Φ400

Available Straight Lengths:

• 0.50m with extension from 0.25 to 0.40m
• 1.00m with extension from 0.50 to 0.90m
• 2.00m with extension from 1 to 1.90m

General Characteristics:

• Self-welding of pipes and fittings
• Male – female configuration
• Steel thickness: 0.40 mm
• Easy assembly of pipes
• Sealed with a high-temperature silicone flange 200°C
• Resistant to continuous temperatures of 400°C
• Resistant for short periods to temperatures up to 600°C

It is recommended to use the telescopic pipe in Pellet units, oil boilers, energy fireplaces, energy stoves, and gas boilers.
