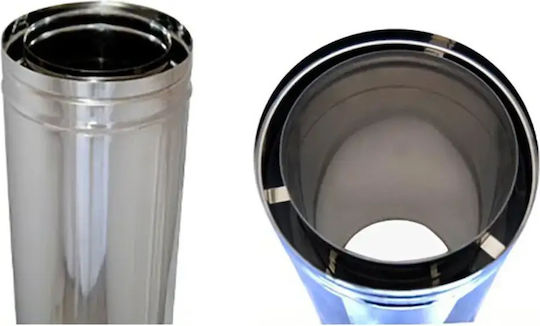

Congestive double-walled stainless steel flue pipe

The concentric double-walled flue pipe is made from stainless steel, non-magnetic AISI 304 BA. Based on the European Union directive for construction products 89/106/EEC, the chimney has undergone the required testing and complies with all the conditions of the CE marking requirements, according to EN 1856-1 and EN 1856-2. The recognized agency Dedal – Attestation and Certification Ltd. has certified it, and quality control has been conducted through SGS TUV SAAR's ISO 9001:2015 management systems.

Available diameters Ø:

• Ø80/130
• Ø100/150
• Ø130/180
• Ø130/200
• Ø150/200
• Ø180/230
• Ø200/250
• Ø230/300
• Ø250/300
• Ø300/350

Available straight lengths:

• 0.25m
• 0.50m
• 1.00m

General features:

• Self-welding of pipes and fittings
• Male – female connection design
• Steel thickness: 0.40 mm
• Easy assembly of pipes
• Sealed with silicone gasket for temperatures up to 200°C
• Maximum flue gas temperature at device outlet: 200°C

It is recommended to use the concentric double-walled flue pipe for energy-efficient gas fireplaces and oil boilers.
