Universal Power Supplies

Features:

• Input: 100-240VAC
• SMPS Adapter (wall-mounted)
• Operating temperature up to 60°C
• Cooling through natural air circulation
• Full load testing at 100%
• Output: DC Voltage 12V
• Voltage Tolerance: ±0.5V
• Nominative Current: 0-3A
• Nominative Power: 60W
• Ripple and Noise: 120mVp-p
• Input Voltage Range: 100-240VAC
• Frequency Range: 50-60Hz
• Power Factor: PF 0.5/220VAC (full load)
• Efficiency at full load (typical): 80%
• Maximum AC Current: 0.61A
• Input current limit: 4.7A (under minimal AC input and full load)
• Starting current: <50A
• Protection: Short circuit with Hiccup mode protection, automatically restores after fault correction.
• Overload: Hiccup mode, automatically restores after fault correction.
• Vibration: 10-500Hz 2G 10min
• Burn-in Test: Input Voltage: 220V 50Hz, Nominal Output Current at 25°C, Burn-in 2h

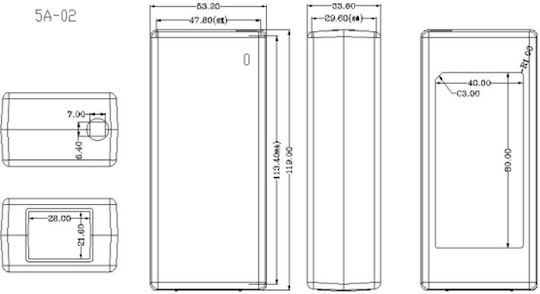

• Dimensions: 118x53x34mm (LxWxH)
