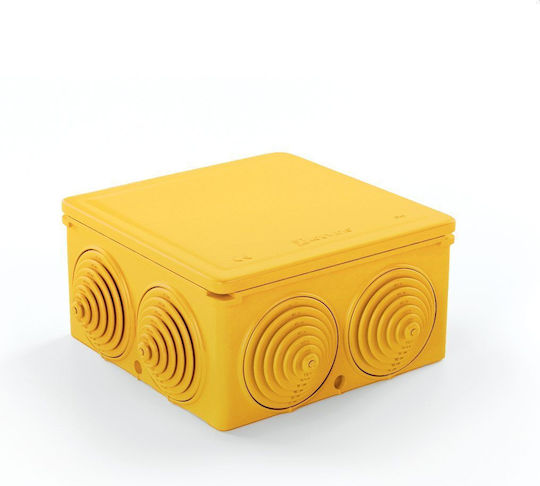

Square Waterproof Junction Box Supersol Plus ISR with removable stepped covers.

• Application field: Intended for surface electrical installations.
• Application standard: EN 60670-22
• Compliance instructions: 2014/35/EU (LVD), 2011/65/EU (RoHS)
• Color: RAL 1023 Yellow
• Special stepped covers for easy cable entry.
• Crimped covers ensuring IP 55 waterproofness.
• 4 entries (knock outs) with dimensions Ø20 to Ø32 for pipes or cables.
• Guides for horizontal/vertical alignment of the boxes.
• Connection number guide according to cable cross-section.
• Design for drainage.
• Special ports for mounting hanging accessories.
• Materials are self-extinguishing and heat resistant up to 650°C.
• Permissible operating voltage up to 800V.
• Does not release toxic or corrosive gases in case of fire.
• Built-in anti-static technology for electrostatic protection.
• Scratch-resistant technology to reduce surface wear.

Basic features:

• Primary material: PO blend
• Temperature resistance range: -25°C to +60°C
• Electrical properties with electrical insulation characteristics.
• Number of holes: 7
• Type of holes: Rubber stepped covers
• Waterproof rating: IP55
• Number of removable outlets: 4
• Pipe alignment: Yes
• Drain opening: Yes
• Heat resistance: 650°C
• Halogen-free: Does not release toxic or corrosive gases in case of fire.
