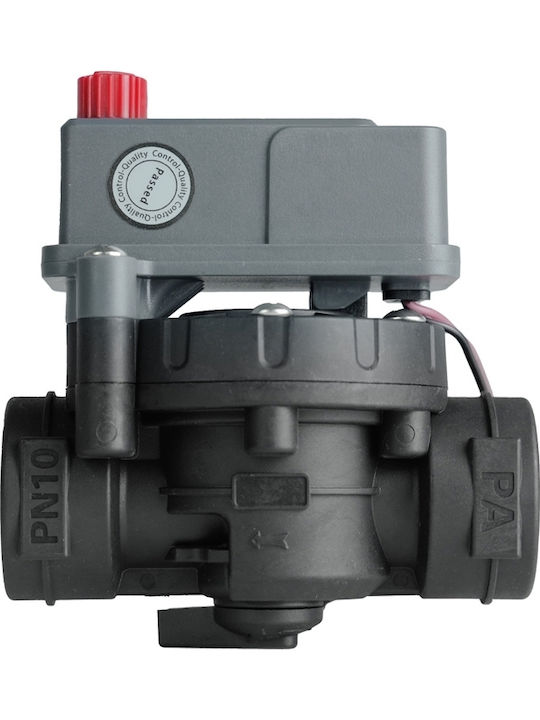

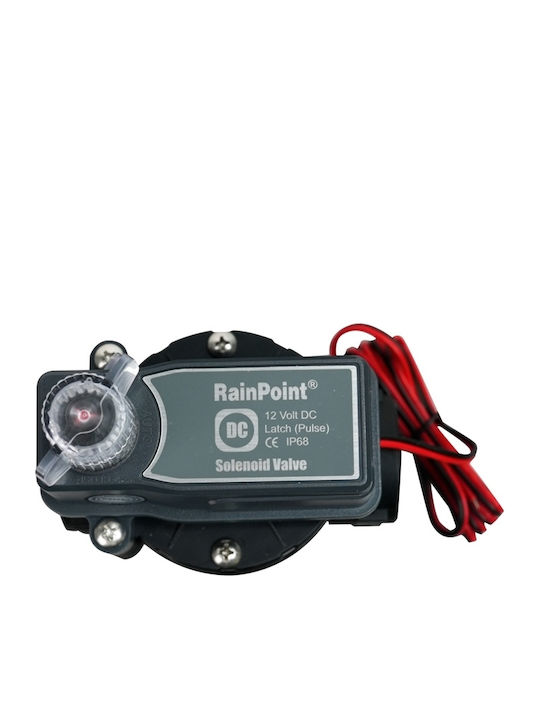

1" DC Irrigation Solenoid Valve

The solenoid valve is named RainPoint BIV025ESC-DC and features a 1" thread. It operates at 9-24 V DC voltage and uses latching technology, allowing effective control of water flow with minimal energy consumption.

• Pressure range: 0.2-10 bar
• Water-resistant design: IP68
• Precise water flow control: The solenoid valve allows precise control of water supply to the irrigation system using a pulse coil (DC Latch).
• Wide installation compatibility: Equipped with standard 1" BSP connections for easy integration into various irrigation systems.
• Reliability in demanding conditions: Solid construction and high IP68 rating for resistance to moisture and environmental conditions.
• Operating temperature: Up to 60°C

Manufacturer: RainPoint

Model: BIV025ESC-DC

Diameter: 1"

Control type: Pulse (DC Latch)

Pulse duration: 200 ms

Minimum capacity: 4700 F

Operating pressure: 0.2-10 bar
