Noark Rail Switch 230V
Electrical Panel Push Buttons Switches

Noark Rail Switch 230V

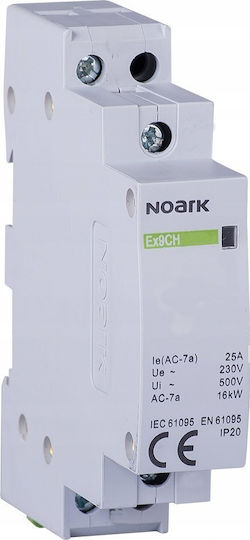

The Noark 107017 modular contactor switches power and control circuits in residential, commercial and industrial electrical installations. It operates quietly and has a contact status indicator on the...

The Noark 107017 modular contactor switches power and control circuits in residential, commercial and industrial electrical installations. It operates quietly and has a contact status indicator on the front.

  • Rated switching voltage: 230 V AC
  • Coil voltage: 230 V AC
  • Poles: 2

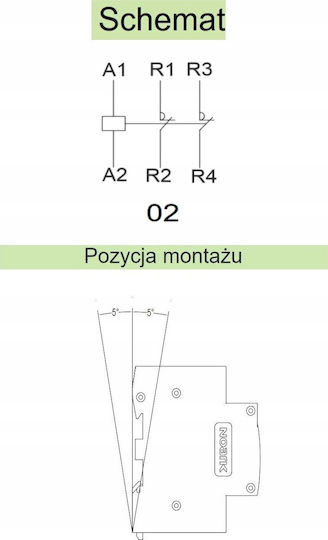

  • Contact type: 2 normally closed (NC)
  • Rated current: 25 A
  • Utilization category: AC-7a
    • ...
See Description & Specifications See Description & Specifications

Learn more about invoicing
Review the product
Product report

Description & Specifications

The Noark 107017 modular contactor switches power and control circuits in residential, commercial and industrial electrical installations. It operates quietly and has a contact status indicator on the front.

  • Rated switching voltage: 230 V AC
  • Coil voltage: 230 V AC
  • Poles: 2
  • Contact type: 2 normally closed (NC)
  • Rated current: 25 A
  • Utilization category: AC-7a
  • AC-7a utilization category power: 16 kW
  • Frequency: 50/60 Hz
  • Rated insulation voltage: 500 V
  • Rated impulse withstand voltage: 4 kV
  • Electrical endurance: 100,000 switching operations
  • Mechanical endurance: 1,000,000 switching operations
  • Maximum switching frequency: 300 per hour
  • Coil duty cycle: 100%
  • Ambient temperature: -5 to +40 °C, with derating from +40 to +70 °C
  • Mounting: TH-35 mm DIN rail
  • Terminals: Screw terminals
  • Terminal connection cross-section: 1–4 mm²
  • Screw tightening torque: 0.8 Nm
  • 18 mm modules: 1

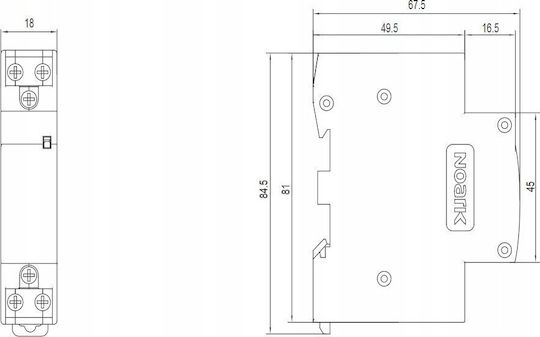

  • Dimensions: 18 × 84.5 × 67.5 mm
  • Protection rating: IP20
  • Certification: CE
  • Standard: IEC / EN 61095
