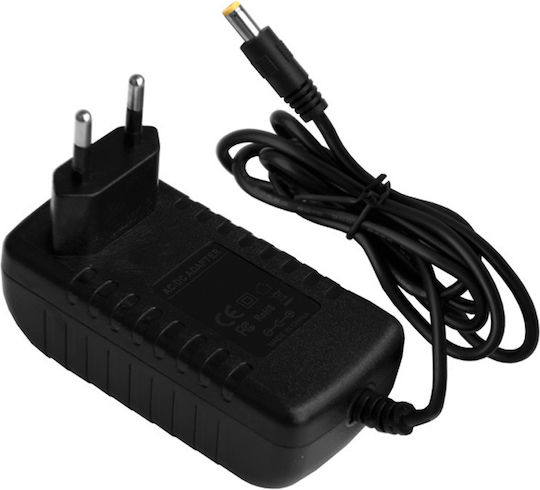

The W6011001-051 LED power supply converts the 100–240 V AC input voltage to a 5 V DC output, with a power rating of 15 W and an output current of up to 3 A. Its SMPS design is suitable for wall mounting and is cooled by natural air circulation.
It includes short-circuit and overload protection, with hiccup-mode operation that automatically recovers once the fault condition is cleared. It has been tested under full load for 2 hours at 25 °C.
- Type: SMPS
- Mounting: Wall-mounted
- Input voltage: 100–240 V AC
- Input frequency: 50–60 Hz
- Maximum input current: 0.61 A
- Input current limit: 1.2 A
- Output voltage: 5 V DC
- Output voltage tolerance: ±0.5 V
- Output current: 0–3 A
- Power: 15 W
- Ripple and noise: 120 mVp-p
- Power factor: PF 0.5 at 220 V AC under full load
- Efficiency at full load: 80%
- Operating temperature: 60 °C
- Cooling: Natural air circulation
- Protection: Short-circuit and overload protection

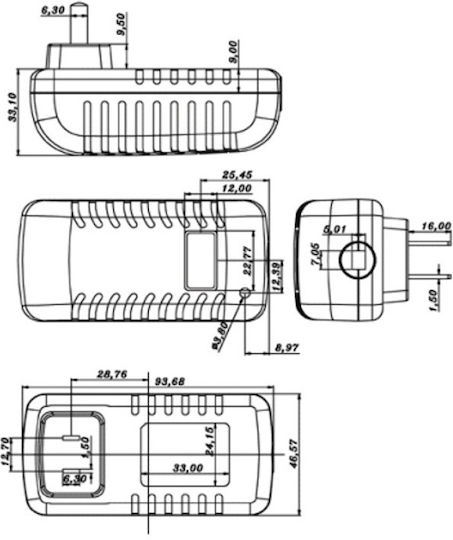

- Dimensions: 74 × 40 × 30 mm
Manufacturer
OEM- Output (DC)
- 5 V
- Power
- 15 W
