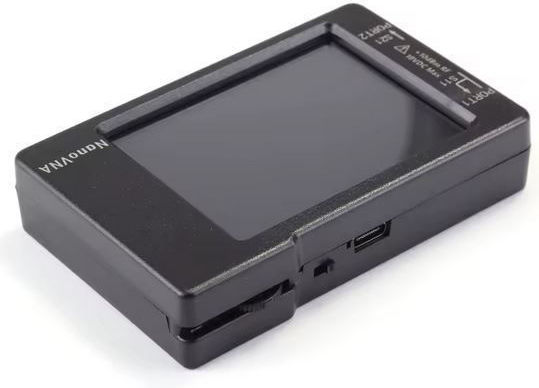

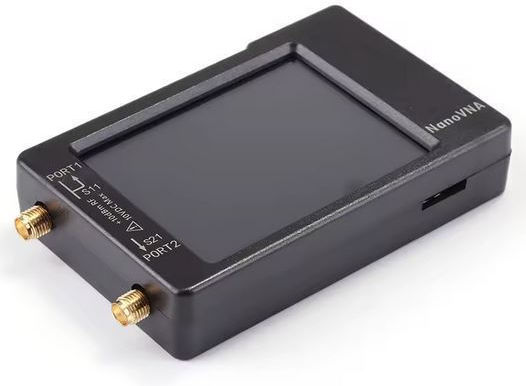

The NanoVNA-H analyzer is a portable vector network analyzer with a 2.8-inch screen, ideal for measuring parameters in radio frequency (RF) circuits.

• Wide Frequency Range: Covers from 10 kHz to 1.5 GHz, allowing measurements in HF, VHF, UHF as well as cellular and Wi-Fi bands.

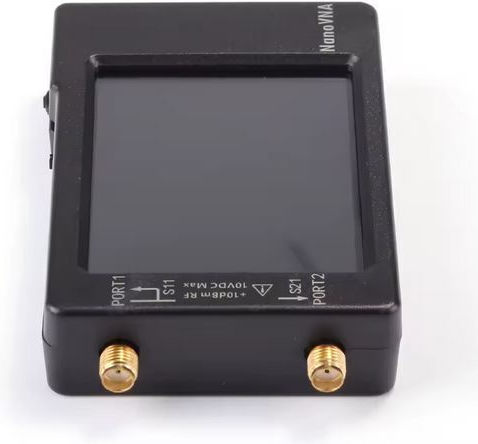

• Dual Measurement Ports:

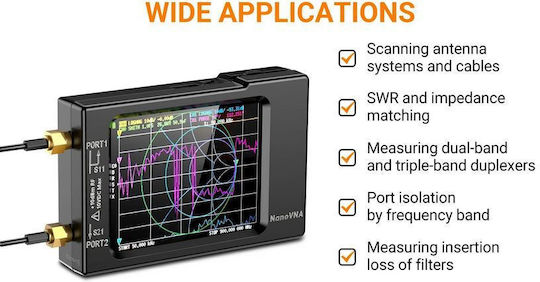

  • Port 1 (S11): For measuring standing wave ratio (SWR), return loss, and complex impedance (Smith Chart).
  • Port 2 (S21): For measuring amplifier gain and filter attenuation (Insertion Loss).

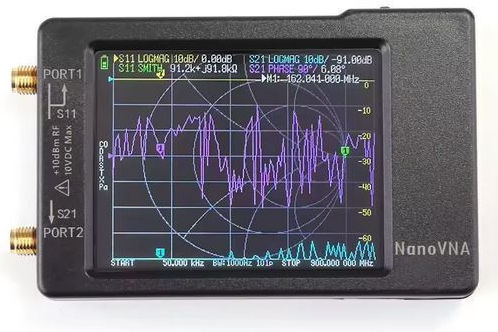

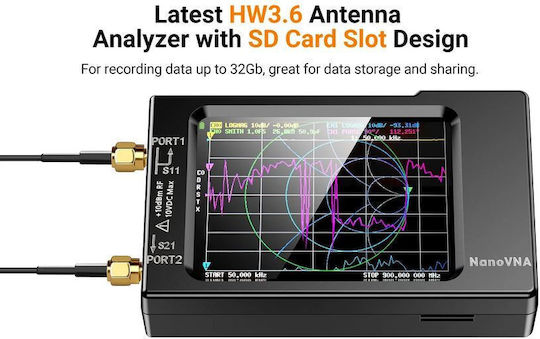

• 2.8" Color Touchscreen: Simultaneously displays up to 4 measurement traces in different colors for instant data comparison.

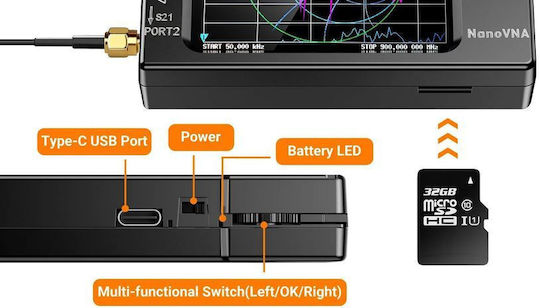

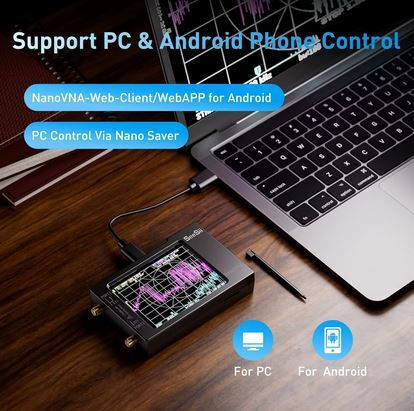

• PC & Android Connection: Via the USB-C port, the device can be connected to a computer for data analysis and Touchstone file export.
• Autonomy & Portability: Built-in 650mAh battery and pocket size for outdoor measurements.

Technical Specifications:

• Display: 2.8 inch TFT (320 x 240)
• Measurement Range: 10kHz - 1.5GHz
• RF Output: -13dbm (maximum -9dbm)
• Frequency Accuracy: <2ppm
• Dynamic Range: 70dB (up to 300MHz), 60dB (up to 900MHz), 40dB (up to 1.5GHz)
• RF Ports: SMA Female

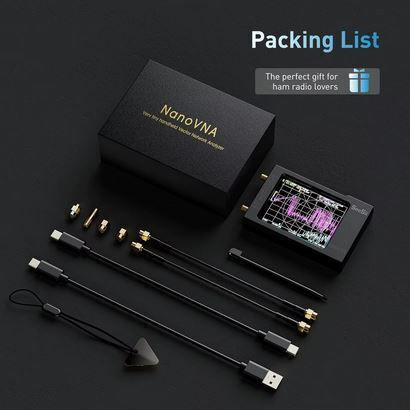

Package Contents:

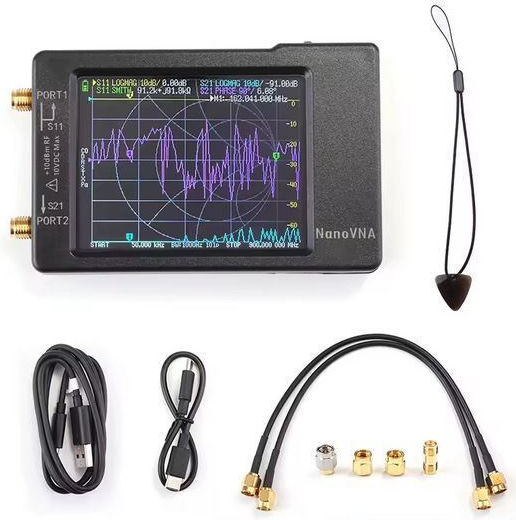

• NanoVNA-H Host (with built-in battery)

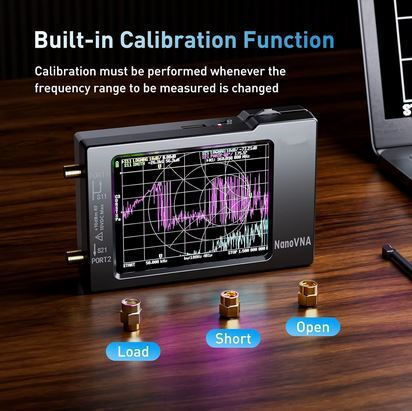

• SMA Calibration Kit: (Open, Short, Load) for guaranteed measurement accuracy.
• 2x RG174 SMA Male to Male Cables (20cm)
• USB Type-C cable for charging and PC connection.
• Type-C to Type-C cable (for connection with Android smartphones).
