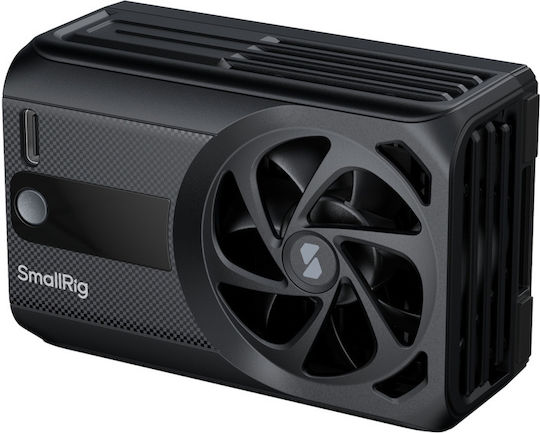

The SmallRig Cooling Fan for Mirrorless Cameras (Hybrid Cooling) is designed to cool mirrorless cameras and extend the recording time of high-specification videos. It uses a high-speed fan with a TEC cooling module to reduce the camera's temperature and effectively limit overheating.

The cooling system has the following modes:

• High
• Low
• Auto

The built-in battery offers approximately 70 minutes of operation at maximum power, and the device can be used while charging. It features protection against overvoltage, overcurrent, and overheating, as well as fan malfunction alerts.

The spring-loaded snap-in design allows for quick installation and removal, and the product can be used with or without a camera cage.

Notes:

• After installing the product, the camera's LCD screen cannot be folded away. To fold the LCD screen, first remove the cooling fan.
• The product is not waterproof. Do not store or use it in humid environments.
• Do not block the air inlet or outlet while the cooling fan is in operation.
• Do not use the cooling fan for continuous cooling when the camera is not operating.
• When not in use, press and hold the power switch for about 3 seconds to turn off the device.

Power Switch:

• Press once to display the battery level.
• Press and hold for about 3 seconds to turn the cooling fan on or off.

Battery Indicator:

• 4 lights: battery level 75%–100%
• 3 lights: battery level 50%–75%
• 2 lights: battery level 25%–50%
• 1 light: battery level 10%–25%
• 1 flashing light: battery level <10%

Charging Status:

• The four lights light up sequentially: charging in progress.
• All four lights steady: fully charged.

Operating Indicator:

• AI: Auto Mode
• L: Normal Mode
• H: Enhanced Mode

Three lights flashing simultaneously: abnormal condition.
