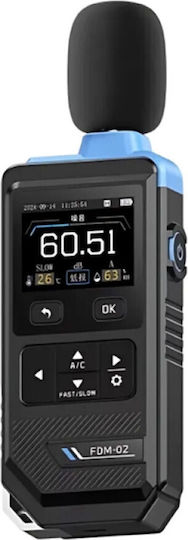

The FNIRSI FDM-02 sound level meter measures sound levels in real time and records changes in a graph. It features a condenser microphone, a 2.0″ color TFT display, A and C frequency weighting, and FAST and SLOW modes. It also measures ambient temperature and humidity.
The device displays measurements with 0.1 dB resolution and features a data hold function, an alarm log, and adjustable limits. The display brightness and auto power-off time are adjustable, and the interface can switch between day and night styles. A USB cable and carrying case are included.
- Microphone type: Condenser
- Display: 2.0″ color TFT
- Measurement range: 30 dB - 130 dB
- Resolution: 0.1 dB
- Accuracy: ±1.5 dB (standard sound source, 94 dB @ 1 kHz)
- Frequency range: 31.5 Hz - 8.5 kHz
- Frequency weighting: A and C
- Measurement modes: FAST (approx. 125 ms), SLOW (approx. 1 s)
- Reading update rate: FAST: 0.5 times per second, SLOW: 1 time per second
- Dynamic range: 3.50 dB
- Alarm log: 30 entries, with recording time and upper and lower limit type
- Limit settings: Minimum 0.0 dB, maximum 130.0 dB
- Overload indicator: For readings above or below the measurement range
- Graph recording: Updates every 0.5 seconds
- Display brightness: From 5% to 100%, in 5% increments
- Interface styles: Day and night
- Date and time settings: Year, month, day, and time
- Auto power-off: Adjustable from 1 to 60 minutes
- Sleep mode: Adjustable duration and sleep-mode brightness
- Supported languages: Chinese and English
- Ambient measurements: Temperature and humidity
- Battery: Lithium, 1500 mAh / 3.7 V
- Indicators: Battery, power, and noise level
- Dimensions: 183 x 63 x 28 mm
- Package contents: Sound level meter, USB cable, and carrying case
