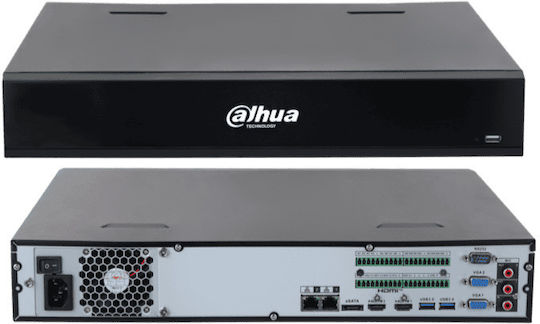

Dahua DH.NV.432.XI NVR Recorder 32 Channels with 4K Resolution
Surveillance Video Recorders

Dahua DH.NV.432.XI NVR Recorder 32 Channels with 4K Resolution

Key features:

  • 32 channels for complete coverage
  • 32MP resolution for top image quality
  • Xinghan AI models for protection
  • 8K HDMI output for maximum resolution

Upgrade your business security with advanced Xinghan Large-Scale AI models that offer real-time data analysis.

See full description

  • Type

    NVR

    Recorder that uses IP cameras and network connection for video recording and management.

  • Number of Channels

    The maximum number of cameras that can be connected to and managed by the recorder

  • Resolution

    4K

    The highest resolution available on the market (also known as 8 Megapixels). It offers 4 times more detail than Full HD. This is cinematic quality that allows for maximum possible zoom to recognize critical details, even from a great distance.

  • Incoming Bandwidth

    This is the actual processing power of the recorder. It determines how much "load" (data) it can handle simultaneously from all cameras. A high number is necessary for many channels at high 4K resolution.


    • Example 1: You have 4 cameras of 5MP (each requiring ~8 Mbps). A total of ~32 Mbps is required. An NVR with 80 Mbps Incoming Bandwidth is more than enough.
    • Example 2: You have 16 cameras of 4K (each requiring ~12 Mbps). A total of ~192 Mbps is required. An NVR with 160 Mbps is not enough and will "lose" cameras or reduce their quality. Here, you need an NVR with at least 256 Mbps.

    512

  • Ports

    HDMI

    The digital output for video and audio. It is the standard way to connect the recorder to a modern TV or monitor (PC) and view your cameras in high resolution.

    USB

    Its main use is to connect a mouse for menu navigation and settings. Additionally, it is used to connect a USB stick (flash drive) in order to export (take a backup of) specific video clips that interest you.

    VGA

    An analog video output. Used to connect the recorder to older computer monitors.

    e-Sata

    A specialized, high-speed port that allows the connection of an external hard drive. It is mainly used in professional setups to expand the total storage (recording) capacity.

    Alarm Input

    Physical ports (terminals) that allow external sensors (e.g., door magnetic contact, radar) to send a "command" to the recorder (e.g., "The door just opened, start recording or send a notification").

  • Video Compression

    H.265+

    Smart version of H.265, designed for 4K/8K surveillance. It offers very low bandwidth in static scenes, combining high image quality with significant storage space savings.

    • The standard supports approximately 50–60 days of continuous recording on a 2TB hard drive

    (Values and durations are indicative and based on standard settings. Actual performance may vary depending on resolution, frame rate, scene movement, and hardware.)
  • See all
Review the product
Product report

Description

Description

At a glance

  • 32 IP channels: Allows connection and simultaneous management of up to 32 high-definition cameras for complete supervision of large installations.
  • 32 MP support: Ensures compatibility with top-resolution cameras, capturing every detail with absolute clarity.
  • 8K HDMI output: Offers the ability to display the recorder on ultra-high-definition screens for detailed monitoring of live footage.
  • 512 Mbps bandwidth: Guarantees smooth and uninterrupted transfer, recording, and playback of massive image data volumes.


Advanced AI Artificial Intelligence for Ultimate Protection

Shield your professional space with the most advanced AI technology on the market. The device features intelligent analysis based on large-scale Xinghan AI models, supporting 8-channel face detection and recognition, with the capacity to store up to 200,000 face images. Additionally, 16-channel perimeter protection and the AcuPick function allow you to instantly locate the person or vehicle you are searching for.

Top decoding and streaming performance

Manage your network’s video without lags or delays. With a maximum decoding capability of up to 40 channels at 1080p or 20 channels at 4 MP, you always have smooth motion on your control screens. Support for the advanced compression formats Smart H.265+ and Smart H.264+ drastically reduces the required hard disk space while preserving video quality.

Professional functions and maximum security

Simplify the management of your security system with advanced networking features. The recorder supports N+M cluster architecture and ISCSI protocol for top-tier storage reliability and backup creation. With the EPTZ function and the ability to arm or disarm with just one click (one-click arming/disarming), you have complete control of your security in your hands.

Specifications

  • Channels: 32 IP Channels
  • Compression Formats: Smart H.265+, H.265, Smart H.264+, H.264, MJPEG
  • Maximum Bandwidth: 512 Mbps (Incoming) / 512 Mbps (Recording) / 384 Mbps (Outgoing)
  • Camera Resolution Support: Up to 32 MP
  • Video Output: 8K HDMI
  • Decoding Capability: 40 × 1080p @ 30 fps or 20 × 4 MP @ 30 fps
  • AI Functions by Recorder: Face detection/recognition (8 channels, 20 databases, 200,000 faces), Metadata (8 channels), AcuPick (8 channels), Perimeter protection (16 channels)
  • AI Functions by Camera: Face detection/recognition, Perimeter protection, SMD Plus, Metadata, ANPR (License plate recognition), Stereoscopic analysis, Heat map, People counting, AcuPick
  • Protocols & Functions: N+M cluster, ISCSI, EPTZ, One-click arming/disarming

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Specifications

Type
NVR

Type

NVR
Recorder that uses IP cameras and network connection for video recording and management.
Number of Channels Outputs
32

Number of Channels Outputs

The maximum number of cameras that can be connected to and managed by the recorder
Resolution
4K

Resolution

4K

The highest resolution available on the market (also known as 8 Megapixels). It offers 4 times more detail than Full HD. This is cinematic quality that allows for maximum possible zoom to recognize critical details, even from a great distance.
WiFi
No

WiFi

Specifies whether the device can connect wirelessly to your router (Wi-Fi)
Incoming Bandwidth
512 Mbps

Incoming Bandwidth: 512

This is the actual processing power of the recorder. It determines how much "load" (data) it can handle simultaneously from all cameras. A high number is necessary for many channels at high 4K resolution.


  • Example 1: You have 4 cameras of 5MP (each requiring ~8 Mbps). A total of ~32 Mbps is required. An NVR with 80 Mbps Incoming Bandwidth is more than enough.
  • Example 2: You have 16 cameras of 4K (each requiring ~12 Mbps). A total of ~192 Mbps is required. An NVR with 160 Mbps is not enough and will "lose" cameras or reduce their quality. Here, you need an NVR with at least 256 Mbps.
Gigabit Port
Yes

Gigabit Port

Specifies the speed of the wired network connection (LAN). "Gigabit" (1000 Mbps) is 10 times faster than standard "Fast Ethernet" (100 Mbps). It is essential for multi-channel 4K NVRs to handle the large volume of data from the cameras without delay.
Ports
HDMI, USB, VGA, e-Sata, Alarm Input

Ports

HDMI
The digital output for video and audio. It is the standard way to connect the recorder to a modern TV or monitor (PC) and view your cameras in high resolution.
USB

Its main use is to connect a mouse for menu navigation and settings. Additionally, it is used to connect a USB stick (flash drive) in order to export (take a backup of) specific video clips that interest you.

VGA

An analog video output. Used to connect the recorder to older computer monitors.

e-Sata
A specialized, high-speed port that allows the connection of an external hard drive. It is mainly used in professional setups to expand the total storage (recording) capacity.
Alarm Input
Physical ports (terminals) that allow external sensors (e.g., door magnetic contact, radar) to send a "command" to the recorder (e.g., "The door just opened, start recording or send a notification").
ONVIF
No

ONVIF

ONVIF is a protocol that allows cameras and recorders from different manufacturers to communicate with each other.
Video Compression
H.265+

Video Compression

H.265+

Smart version of H.265, designed for 4K/8K surveillance. It offers very low bandwidth in static scenes, combining high image quality with significant storage space savings.

  • The standard supports approximately 50–60 days of continuous recording on a 2TB hard drive

(Values and durations are indicative and based on standard settings. Actual performance may vary depending on resolution, frame rate, scene movement, and hardware.)

Smart AI Detection

Human Detection
No

Human Detection

The technology recognizes human shapes in real time. Ideal for security, area monitoring, or alarms, reducing false alarms caused by other objects.
Vehicle Detection
Yes

Vehicle Detection

Recognizes and tracks vehicles, distinguishing them from other objects. Useful for parking, traffic management, or road surveillance.

HDD

Includes Hard Drive
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

At a glance

  • 32 IP channels: Allows connection and simultaneous management of up to 32 high-definition cameras for complete supervision of large installations.
  • 32 MP support: Ensures compatibility with top-resolution cameras, capturing every detail with absolute clarity.
  • 8K HDMI output: Offers the ability to display the recorder on ultra-high-definition screens for detailed monitoring of live footage.
  • 512 Mbps bandwidth: Guarantees smooth and uninterrupted transfer, recording, and playback of massive image data volumes.


Advanced AI Artificial Intelligence for Ultimate Protection

Shield your professional space with the most advanced AI technology on the market. The device features intelligent analysis based on large-scale Xinghan AI models, supporting 8-channel face detection and recognition, with the capacity to store up to 200,000 face images. Additionally, 16-channel perimeter protection and the AcuPick function allow you to instantly locate the person or vehicle you are searching for.

Top decoding and streaming performance

Manage your network’s video without lags or delays. With a maximum decoding capability of up to 40 channels at 1080p or 20 channels at 4 MP, you always have smooth motion on your control screens. Support for the advanced compression formats Smart H.265+ and Smart H.264+ drastically reduces the required hard disk space while preserving video quality.

Professional functions and maximum security

Simplify the management of your security system with advanced networking features. The recorder supports N+M cluster architecture and ISCSI protocol for top-tier storage reliability and backup creation. With the EPTZ function and the ability to arm or disarm with just one click (one-click arming/disarming), you have complete control of your security in your hands.

Specifications

  • Channels: 32 IP Channels
  • Compression Formats: Smart H.265+, H.265, Smart H.264+, H.264, MJPEG
  • Maximum Bandwidth: 512 Mbps (Incoming) / 512 Mbps (Recording) / 384 Mbps (Outgoing)
  • Camera Resolution Support: Up to 32 MP
  • Video Output: 8K HDMI
  • Decoding Capability: 40 × 1080p @ 30 fps or 20 × 4 MP @ 30 fps
  • AI Functions by Recorder: Face detection/recognition (8 channels, 20 databases, 200,000 faces), Metadata (8 channels), AcuPick (8 channels), Perimeter protection (16 channels)
  • AI Functions by Camera: Face detection/recognition, Perimeter protection, SMD Plus, Metadata, ANPR (License plate recognition), Stereoscopic analysis, Heat map, People counting, AcuPick
  • Protocols & Functions: N+M cluster, ISCSI, EPTZ, One-click arming/disarming

Manufacturer

Manufacturer Details

Warnings & Safety Information

Specifications

Type
NVR

Type

NVR
Recorder that uses IP cameras and network connection for video recording and management.
Number of Channels Outputs
32

Number of Channels Outputs

The maximum number of cameras that can be connected to and managed by the recorder
Resolution
4K

Resolution

4K

The highest resolution available on the market (also known as 8 Megapixels). It offers 4 times more detail than Full HD. This is cinematic quality that allows for maximum possible zoom to recognize critical details, even from a great distance.
WiFi
No

WiFi

Specifies whether the device can connect wirelessly to your router (Wi-Fi)
Incoming Bandwidth
512 Mbps

Incoming Bandwidth: 512

This is the actual processing power of the recorder. It determines how much "load" (data) it can handle simultaneously from all cameras. A high number is necessary for many channels at high 4K resolution.


  • Example 1: You have 4 cameras of 5MP (each requiring ~8 Mbps). A total of ~32 Mbps is required. An NVR with 80 Mbps Incoming Bandwidth is more than enough.
  • Example 2: You have 16 cameras of 4K (each requiring ~12 Mbps). A total of ~192 Mbps is required. An NVR with 160 Mbps is not enough and will "lose" cameras or reduce their quality. Here, you need an NVR with at least 256 Mbps.
Gigabit Port
Yes

Gigabit Port

Specifies the speed of the wired network connection (LAN). "Gigabit" (1000 Mbps) is 10 times faster than standard "Fast Ethernet" (100 Mbps). It is essential for multi-channel 4K NVRs to handle the large volume of data from the cameras without delay.
Ports
HDMI, USB, VGA, e-Sata, Alarm Input

Ports

HDMI
The digital output for video and audio. It is the standard way to connect the recorder to a modern TV or monitor (PC) and view your cameras in high resolution.
USB

Its main use is to connect a mouse for menu navigation and settings. Additionally, it is used to connect a USB stick (flash drive) in order to export (take a backup of) specific video clips that interest you.

VGA

An analog video output. Used to connect the recorder to older computer monitors.

e-Sata
A specialized, high-speed port that allows the connection of an external hard drive. It is mainly used in professional setups to expand the total storage (recording) capacity.
Alarm Input
Physical ports (terminals) that allow external sensors (e.g., door magnetic contact, radar) to send a "command" to the recorder (e.g., "The door just opened, start recording or send a notification").
ONVIF
No

ONVIF

ONVIF is a protocol that allows cameras and recorders from different manufacturers to communicate with each other.
Video Compression
H.265+

Video Compression

H.265+

Smart version of H.265, designed for 4K/8K surveillance. It offers very low bandwidth in static scenes, combining high image quality with significant storage space savings.

  • The standard supports approximately 50–60 days of continuous recording on a 2TB hard drive

(Values and durations are indicative and based on standard settings. Actual performance may vary depending on resolution, frame rate, scene movement, and hardware.)

Smart AI Detection

Human Detection
No

Human Detection

The technology recognizes human shapes in real time. Ideal for security, area monitoring, or alarms, reducing false alarms caused by other objects.
Vehicle Detection
Yes

Vehicle Detection

Recognizes and tracks vehicles, distinguishing them from other objects. Useful for parking, traffic management, or road surveillance.

HDD

Includes Hard Drive
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
