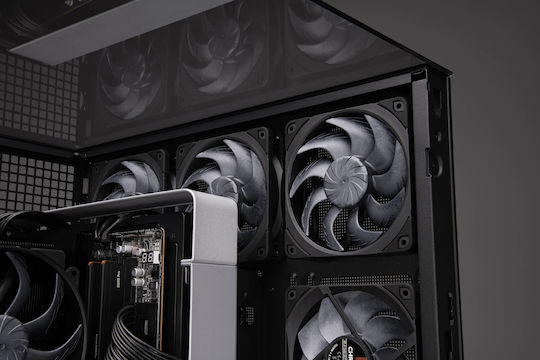

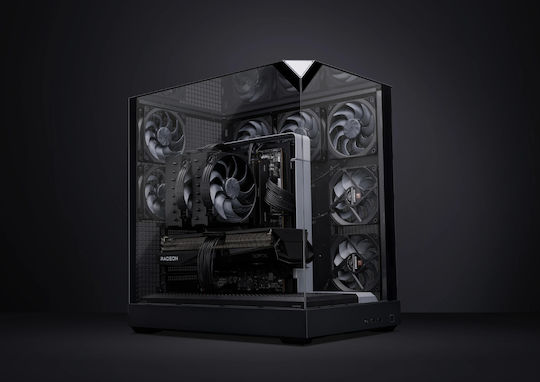

Chromax Case Fan 120mm (1800rpm / 63.15cfm) Without LED Lighting
Case Fans

Chromax Case Fan 120mm (1800rpm / 63.15cfm) Without LED Lighting

The Noctua Chromax case fan measures 120 120 25 mm and operates at speeds of up to 1,800 rpm. Its design features Progressive-Bend blades, a Centrifugal Turbulator hub, flow acceleration channels...

The Noctua Chromax case fan measures 120 120 25 mm and operates at speeds of up to 1,800 rpm. Its design features Progressive-Bend blades, a Centrifugal Turbulator hub, flow acceleration channels and Winglets, as well as an AAO frame and Sterrox liquid-crystal polymer material. It is equipped with an etaPERF motor with an NE-FD6 PWM IC and a 4-pin PWM...

See full description See full description

Learn more about invoicing
Product report

Description

Description

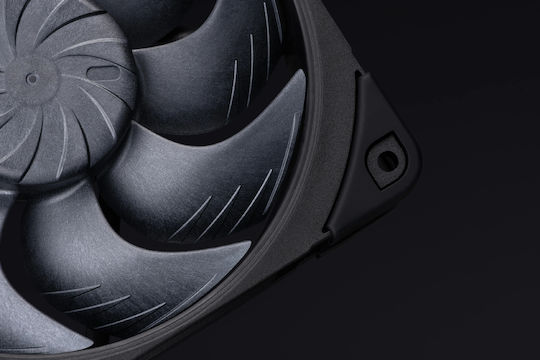

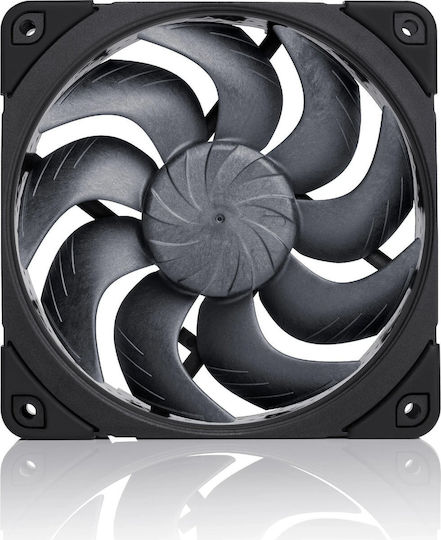

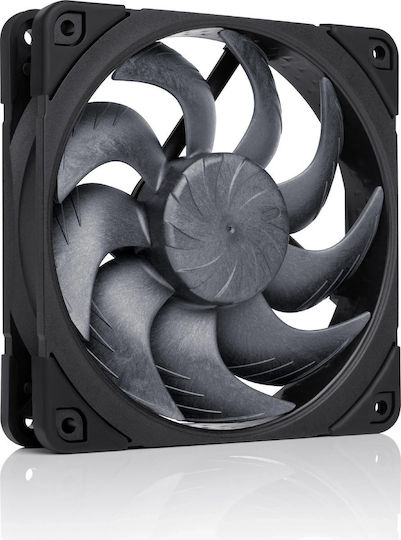

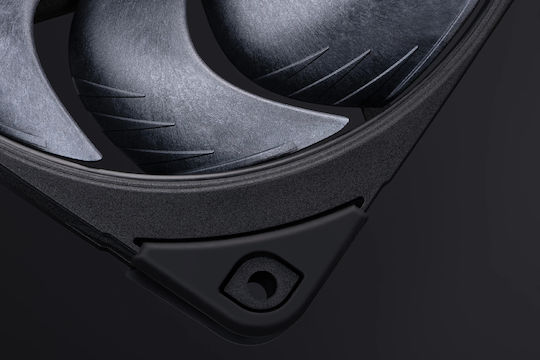

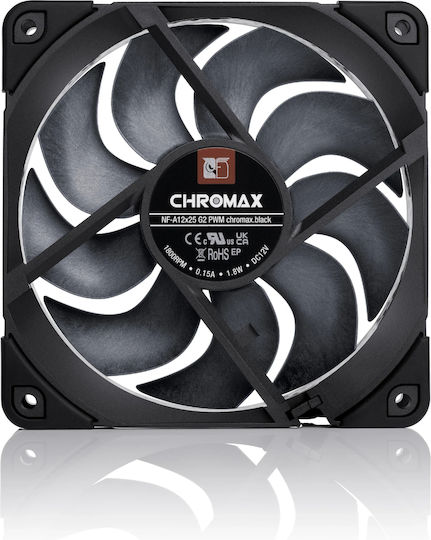

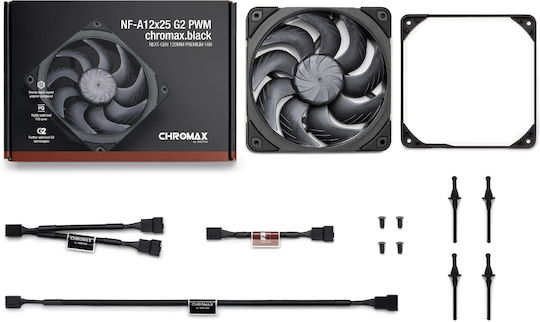

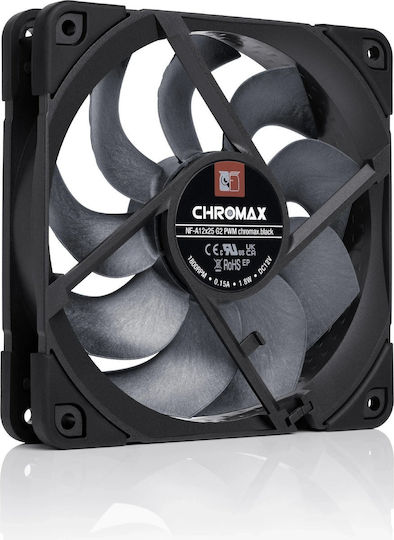

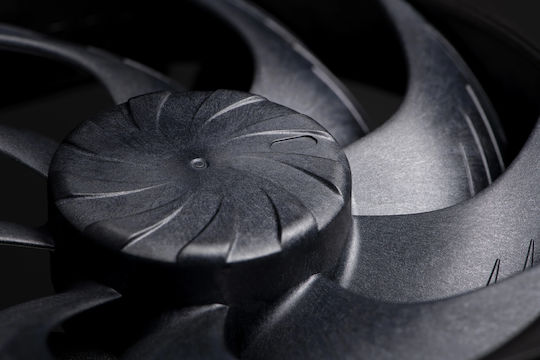

The Noctua Chromax case fan measures 120 × 120 × 25 mm and operates at speeds of up to 1,800 rpm. Its design features Progressive-Bend blades, a Centrifugal Turbulator hub, flow acceleration channels and Winglets, as well as an AAO frame and Sterrox® liquid-crystal polymer material. It is equipped with an etaPERF™ motor with an NE-FD6 PWM IC and a 4-pin PWM connector.

  • Type: Case fan
  • Dimensions: 120 × 120 × 25 mm
  • Rotational speed: 0–1,800 rpm
  • Maximum airflow: 63.15 cfm (107.3 m³/h)
  • Air pressure: 3.14 mmH₂O
  • Noise level: 22.5 dBA
  • Bearing: SSO2
  • Material: Sterrox® liquid-crystal polymer
  • Frame: AAO
  • Motor: etaPERF™ with NE-FD6 PWM IC
  • Connection: 4-pin PWM
  • Voltage: 12 V DC
  • Current: 0.15 A
  • Power consumption: 1.8 W
  • Service life: 150,000 hours
  • Color: Black
  • LED lighting: No LED lighting
  • Quantity: 1

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Main Specifications

Dimension
120 mm

Dimension

The diameter of the fan in millimeters. The larger the fan, the more effective the cooling and the quieter its operation compared to a smaller one. The most common size is 120mm, with some computer cases supporting larger sizes such as 140mm.
Colour
Black
Packaging
1 pcs

Technical Specifications

Fan Speed (Max)
1800 rpm

Fan Speed (Max)

The maximum rotations at which the fan turns. To reduce the rotations, it should be connected to a speed controller, either through a port on the motherboard that supports this function. Usually, the higher the rotations, the greater the flow but also the noise. As long as the needs for noise and air flow are covered, the rotations do not need to be taken into account.
Air Flow (Max)
63.15 cfm

Air Flow (Max)

The amount of air that the fan can push in one minute (cubic feet per minute) when operating at maximum speed.

The higher the number, the more effective the cooling that the fan can provide.

Higher quality fans can produce the same airflow with less noise and speed.
LED Color
Without LEDs
Reverse Blade
No

Reverse Blade

Reverse blade fans reverse the airflow, allowing for intake without the interference of the frame, which reduces aerodynamic turbulence and noise. Additionally, apart from enhancing aesthetics and lighting, they make it easier to clean the blades and offer better cable management, as the wiring remains hidden behind the frame.
Air Pressure
3.14 mmH₂O: millimeters of water

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Reviews (2)

Reviews

5.0
2
5.0
Review this product
  1. 2
  2. 4 stars
    0
  3. 3 stars
    0
  4. 2 stars
    0
  5. 1 star
    0
Review this product

Description & Specifications

The Noctua Chromax case fan measures 120 × 120 × 25 mm and operates at speeds of up to 1,800 rpm. Its design features Progressive-Bend blades, a Centrifugal Turbulator hub, flow acceleration channels and Winglets, as well as an AAO frame and Sterrox® liquid-crystal polymer material. It is equipped with an etaPERF™ motor with an NE-FD6 PWM IC and a 4-pin PWM connector.

  • Type: Case fan
  • Dimensions: 120 × 120 × 25 mm
  • Rotational speed: 0–1,800 rpm
  • Maximum airflow: 63.15 cfm (107.3 m³/h)
  • Air pressure: 3.14 mmH₂O
  • Noise level: 22.5 dBA
  • Bearing: SSO2
  • Material: Sterrox® liquid-crystal polymer
  • Frame: AAO
  • Motor: etaPERF™ with NE-FD6 PWM IC
  • Connection: 4-pin PWM
  • Voltage: 12 V DC
  • Current: 0.15 A
  • Power consumption: 1.8 W
  • Service life: 150,000 hours
  • Color: Black
  • LED lighting: No LED lighting
  • Quantity: 1

Manufacturer

Manufacturer Details

Warnings & Safety Information

Main Specifications

Dimension
120 mm

Dimension

The diameter of the fan in millimeters. The larger the fan, the more effective the cooling and the quieter its operation compared to a smaller one. The most common size is 120mm, with some computer cases supporting larger sizes such as 140mm.
Colour
Black
Packaging
1 pcs

Technical Specifications

Fan Speed (Max)
1800 rpm

Fan Speed (Max)

The maximum rotations at which the fan turns. To reduce the rotations, it should be connected to a speed controller, either through a port on the motherboard that supports this function. Usually, the higher the rotations, the greater the flow but also the noise. As long as the needs for noise and air flow are covered, the rotations do not need to be taken into account.
Air Flow (Max)
63.15 cfm

Air Flow (Max)

The amount of air that the fan can push in one minute (cubic feet per minute) when operating at maximum speed.

The higher the number, the more effective the cooling that the fan can provide.

Higher quality fans can produce the same airflow with less noise and speed.
LED Color
Without LEDs
Reverse Blade
No

Reverse Blade

Reverse blade fans reverse the airflow, allowing for intake without the interference of the frame, which reduces aerodynamic turbulence and noise. Additionally, apart from enhancing aesthetics and lighting, they make it easier to clean the blades and offer better cable management, as the wiring remains hidden behind the frame.
Air Pressure
3.14 mmH₂O: millimeters of water

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
