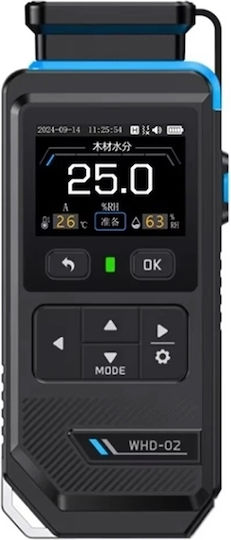

Pin-type wood moisture meter FNIRSI WHD-02

The FNIRSI WHD-02 features a 2-inch color display that allows for quick and accurate measurement of wood moisture content, as well as monitoring of ambient temperature and humidity.

• Measurement modes: 7 measurement modes with 0.1% resolution and sampling time of about 0.5 seconds.
• Measurement range:
  • Mode A: 12.4%–55.0%
  • Mode B: 10.9%–48.0%
  • Mode C: 1.6%–22.1%
  • Mode D: 0.1%–11.0%
  • Mode E: 1.1%–8.7%
  • Mode F: 0.6%–9.9%
  • Mode G: 0.3%–16.6%
• Features: Ability to store up to 30 events and visualize data in graph form.
• Dimensions: Approximately 63 × 28 × 148 mm.
• Weight: Approximately 185 g.

Notable is the ability to set moisture alarm limits and use a triple alarm (audible, visual, and vibration), which highlights abnormal measurements.

The USB-C port allows for software updates and easy charging. The meter also offers adjustable screen brightness and sound volume.

Included: Wood moisture meter, carrying case, USB-A to USB-C cable.

Manufacturer: FNIRSI

Model: WHD-02
