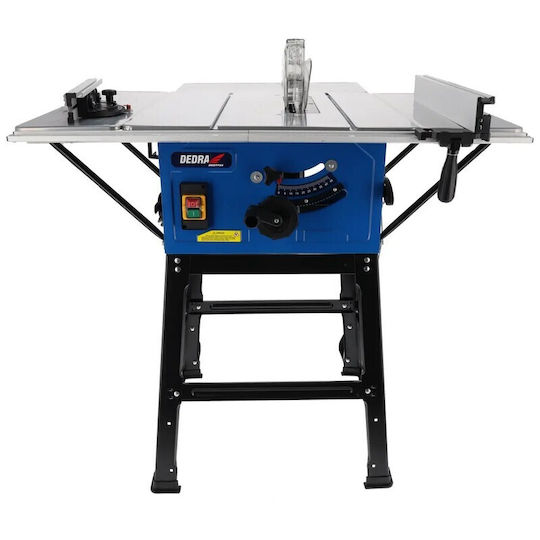

The Dedra DED7754T3 table saw cuts wood and wood-based materials with a 2000 W motor and a 254 mm blade. The rotational speed is 4800 rpm, and the cutting angle can be adjusted up to 45°.

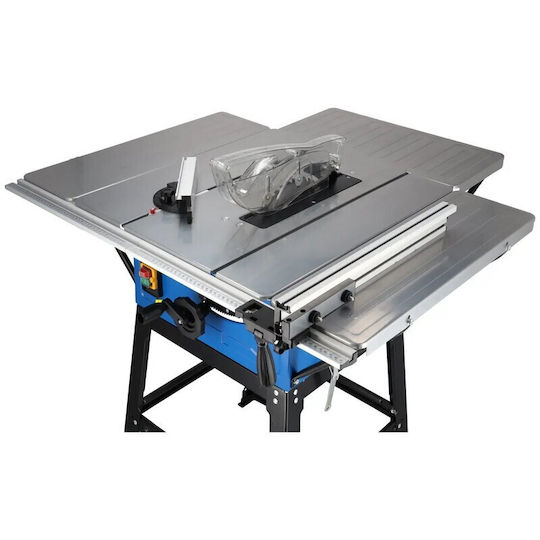

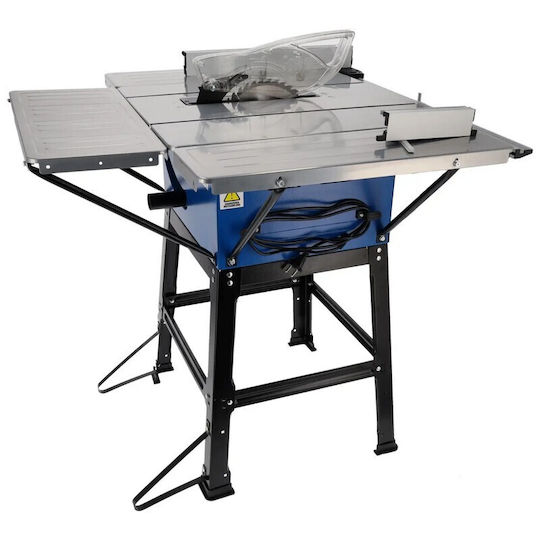

The main table measures 630 × 546 mm and comes with two 630 × 190 mm extensions and one 540 × 250 mm extension. The package includes three carbide-tipped blades, measuring 254 × 30 mm, with 24, 40 and 60 teeth respectively.
- Power: 2000 W
- Power supply: Mains, 230 V / 50 Hz
- Motor type: Brushed
- Motor winding: Copper
- Blade diameter: 254 mm
- Blade bore diameter: 30 mm
- Rotational speed: 4800 rpm
- Maximum cutting height at 45°: 87 mm
- Maximum cutting height at 90°: 87 mm
- Adjustable cutting angle: Up to 45°
- Main table dimensions: 630 × 546 mm
- Table extension dimensions: 2 × 630 × 190 mm and 540 × 250 mm
- Weight: 25 kg
- Package contents: Table saw body, 3 cutting blades measuring 254 × 30 mm with 24, 40 and 60 teeth, 1 table length extension, 2 table width extensions, 1 crosscut guide, 1 blade guard, 1 rip fence, 1 guide, 4 legs, 4 horizontal leg supports, 4 side table extension supports, 2 stabilisers, 1 push stick, 4 rubber feet, 32 6 mm nuts, 24 6 mm spring washers, 24 6 mm flat washers, 24 6 × 12 mm round-head bolts, 12 6 mm hex bolts with flat and spring washers, 1 Allen key and 1 open-ended wrench
Specifications
- Power
- 2000 W
- Disc Diameter
- 254 mm
- Cutting Speed
- 4800 rpm
- Maximum Cutting Height 45°
- 87 mm
- Maximum Cutting Height 90°
- 87 mm
- Power Source
- Electric
Additional Specifications
- Cutting Guide (laser)
- No
- Dust Suction System
- -
- Soft Start
- No
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
