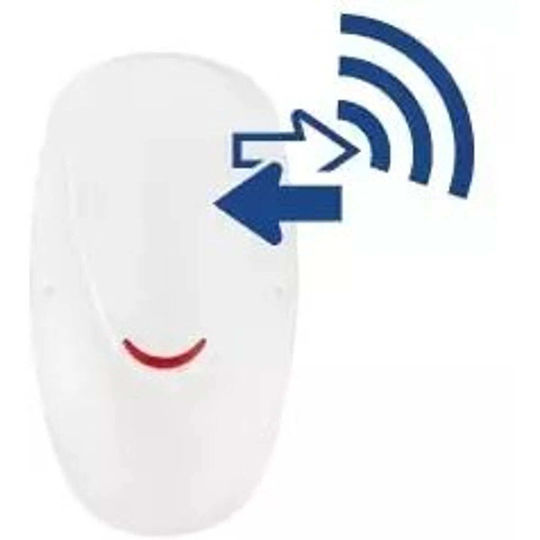

The Satel MPD-310 wireless motion detector detects movement using a passive infrared sensor and a wide-angle lens. It works with PERFECTA control panels and VERSA-MCU and MTX-300 controllers, and supports encrypted radio transmission and battery status monitoring. Tamper protection covers both opening the housing and removing the detector from the mounting surface.
- Connectivity: RF
- Detection type: Infrared
- Detection angle: 90°
- Range: 12 m
- Power supply: CR123A 3 V battery
- Tamper protection: Housing opening and removal from the mounting surface
- Motion detection speed: 0.3–3 m/s
- Operating temperature: -10 °C to +55 °C
- Recommended mounting height: 2.4 m
- Maximum power consumption: 48 mA
- Standby power consumption: 45 µA
- Battery life: Up to 3 years in energy-saving mode
- Operating frequency: 433.05–434.79 MHz
- Start-up time: 15 s
- Standard sensitivity detection area: 14 m × 11.5 m, 82°
- High sensitivity detection area: 18 m × 16.5 m, 92°
- Compatibility: PERFECTA, VERSA-MCU, MTX-300
- Certification: CE
- Standards: EN 50131-1, EN 50130-4, EN 50130-5
- Environmental class: II according to EN 50130-5
- Security grade: Grade 2 according to EN 50131-2-2, for direct wall mounting
- Maximum humidity: 93 ± 3%
- Dimensions: 62 × 137 × 42 mm
- Weight: 147 g
Manufacturer
OEMSpecifications
- Detection Type
- Infrared
- Detection Angle
- 90 °
- Scope
- 12 m
- Connector
- Wireless
- Battery
- Yes
Additional Features
- Antimasking
- No
- Tamper
- Yes
- Curtain
- No
- Recessed
- No
- PET
- No
- Built-in Camera
- No
Smart Attributes
- Connectivity
- RF
