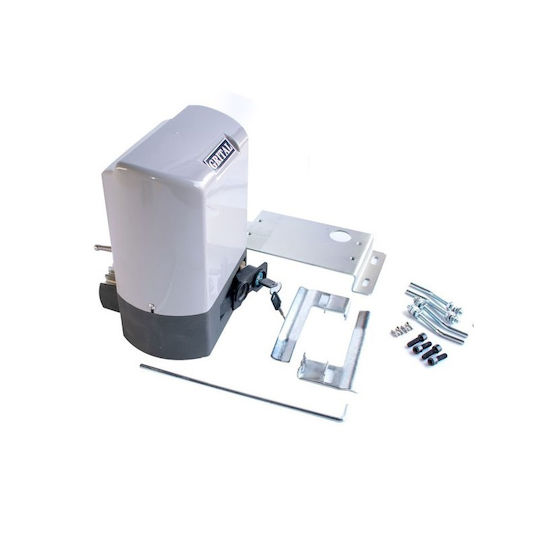

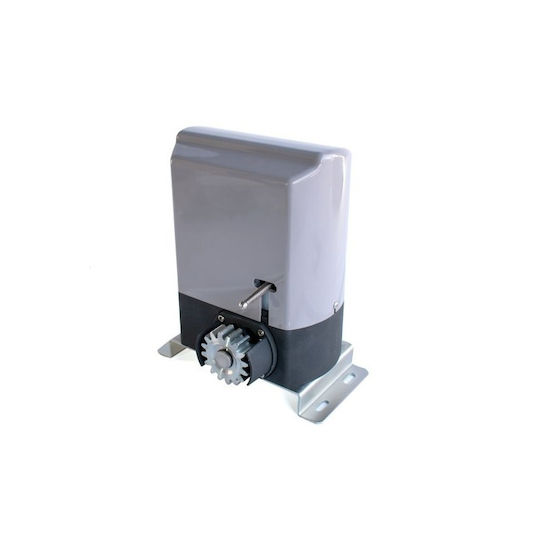

Sliding Garage Door Motor Set up to 500kg GR 5 Kit Full GRITAL 2003102

Complete automation kit for sliding garage doors up to 500kg, with a powerful motor, 2 rolling code remote controls, and a 4-meter metal rack. It features soft start functions, automatic closing, and manual release with a key for reliable and safe operation.

Features:

• Deceleration on opening and closing with electronic adjustment
• Storage of up to 150 different rolling code, dip-switch, or random codes
• Electronic brake
• Soft Start for smooth startup
• Pedestrian passage – partial door opening
• Automatic closing
• Constructed from reinforced aluminum
• Protection in case of power outage with release door
• Integrated Seav Lrs 2102 New electronic board, programmed and ready to operate

Technical Specifications:

• Weight capacity: 500kg
• Power consumption: 250W
• Supply voltage: 230V
• Current: 1.1A
• Torque: 500Nm
• Thermal protection: 150°C
• Starting capacitor: 8 μF
• Operating temperature: -25° C ~ +60° C
• Insulation class: 1
• Duty cycle: 30%
• Motor speed: 1400 rpm
• Limit switches: Spring
• Protection rating: IP 55
• Release: Manual with key
• Lubrication: Grease
• Noise level: 50 dB
• Door speed: 10 m/min
• Drive: Rack Module 4
• Product weight: 10.50kg
• Dimensions: 22.50 x 18.00 x 32.00 cm

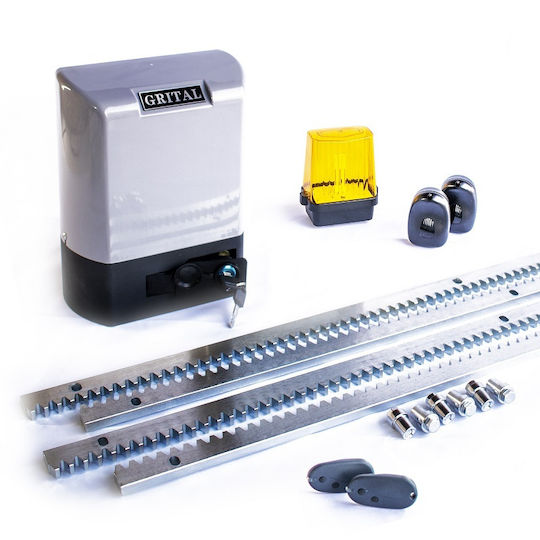

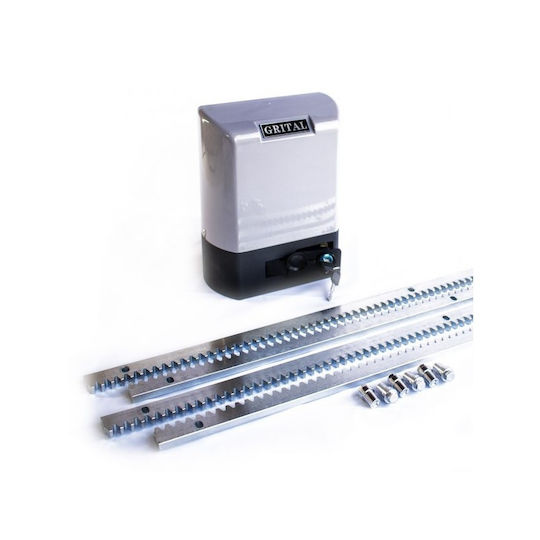

Includes:

• Board kit + 2 remote controls (rolling code)
• 4-meter metal rack (pack of 4 pcs x 1 meter each)
