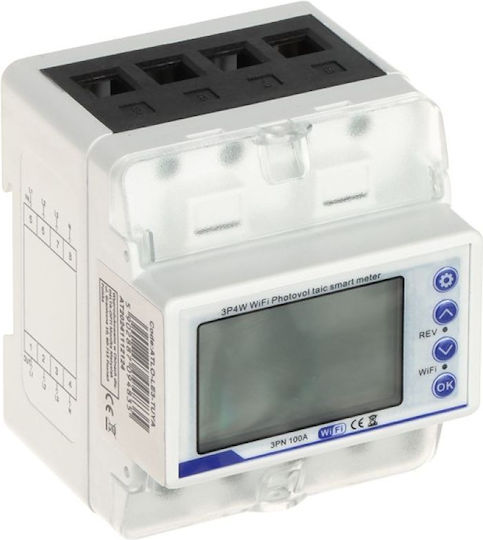

The Atlo ATLO-LE3-TUYA energy analyzer monitors consumption and measures power, voltage, and current. It connects via 2.4 GHz Wi-Fi and lets you remotely control connected devices using the Tuya Smart app, as well as schedule them to turn on and off. It supports voice control via Amazon Alexa and Google Assistant and features an LCD screen.
- Type: Energy analyzer
- Display: Digital
- Number of phases: Single-phase
- Connectivity: 2.4 GHz Wi-Fi, IEEE 802.11 b/g/n
- Compatibility: Google Home, Alexa, Tuya
- Maximum current: 60 A
- Power supply: 90–250 V
- Automatic shutdown: Based on voltage, current, or energy consumption settings
- Pairing button: Available
- Wi-Fi indicator light: Available
- Connection: Screw terminals
- Inputs/outputs: 3 x phase + neutral / 3 x phase + neutral
- Mounting: On a TS-35 DIN rail
- Housing material: Plastic
- Color: White
- Maximum cable cross-section: 16 mm²
- Permissible relative humidity: Up to 85%
- Dimensions: 77 x 89 x 75 mm
- Weight: 0.43 kg
Specifications
- Type
- Energy Analyzer
- Display Type
- Digital
- Number of Phases
- Single-phase
- Maximum Current
- 60 A
Smart Features
- Connectivity
- Wi-Fi
- Smart Ecosystem
- Google Home, Alexa, Tuya
