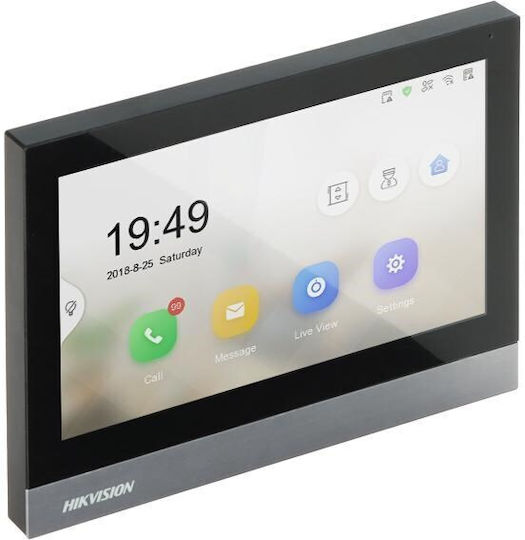

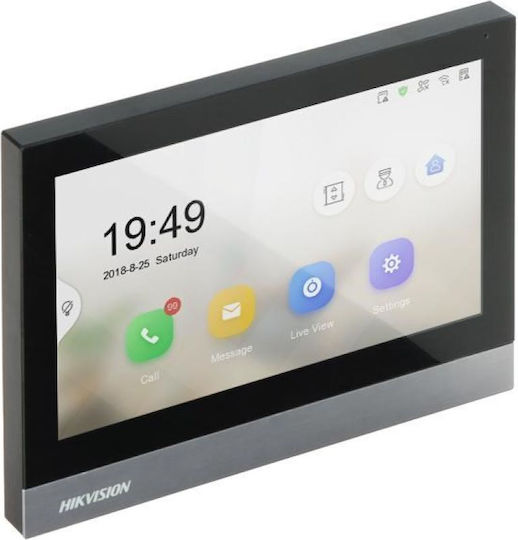

The Hikvision DS-KH8380-TE1 intercom set includes an IP indoor station with a 7" color TFT touchscreen and a resolution of 1024 × 600. It works with IP video intercom systems and supports remote call answering, door unlocking, live viewing, and elevator access control.

The station supports up to 8 alarm inputs, up to 16 network cameras, and up to 16 indoor extensions. It can be wall-mounted or installed in a flush-mount box, and features a built-in microphone and speaker.

• Type: Intercom set
• Display: 7" color TFT touchscreen
• Display resolution: 1024 × 600
• Compatibility: Works with IP video intercom systems
• Alarm inputs: Up to 8
• Network camera support: Up to 16
• Indoor extensions: Up to 16
• Functions: Remote call answering, door unlocking, live viewing, and elevator access control
• Installation: Wall-mounted or in a flush-mount box
• Operating system: Embedded Linux
• ROM: 32 MB
• RAM: 128 MB
• Audio: 1 built-in omnidirectional microphone and 1 speaker
• Audio codecs: G.711u, G.711a, Opus, AAC-LD, AAC-LC, G.726, G.722.1
• Audio bit rate: 16, 32, or 64 Kbps
• Storage with TF card: 200 photos and 200 alarm records
• Storage without TF card: 2 MB RAM
• Notifications: 200
• Network protocols: TCP/IP, SIP, RTSP
• Network port: 1 × RJ-45, 10/100 Mbps
• Power supply: IEEE802.3at or 12 VDC, 1.5 A
• Power consumption: ≤ 12 W
• Housing material: Plastic
• Dimensions: 178.4 × 126.4 × 21.8 mm
• Weight: 366.7 g
• Operating temperature: -10 °C to 50 °C
• Operating humidity: 10% to 90%, non-condensing
• Languages: English, Arabic, French, Russian, Spanish, Italian, German, Polish, Turkish, Portuguese, Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, and Traditional Chinese
