The Ferro 25-40 180 circulation pump is intended exclusively for drinking water. It has a maximum delivery head of 3.8 m and operates at a flow rate of 0.2–3.5 m³/h.
It must be installed with the shaft in a horizontal position. The terminal box can be oriented in any direction except downward, beneath the pump.
- Fluid type: Drinking water
- Flow rate range: 0.2–3.5 m³/h
- Maximum delivery head: 3.8 m
- Fluid temperature: +2 °C to +110 °C
- Maximum pressure: 10 bar
- Protection rating: IP 44
- Insulation class: H
- Cable gland: PG 11
- Voltage and frequency: ~230 V, 50–60 Hz
- Power consumption: 35/45/65 W (I/II/III)

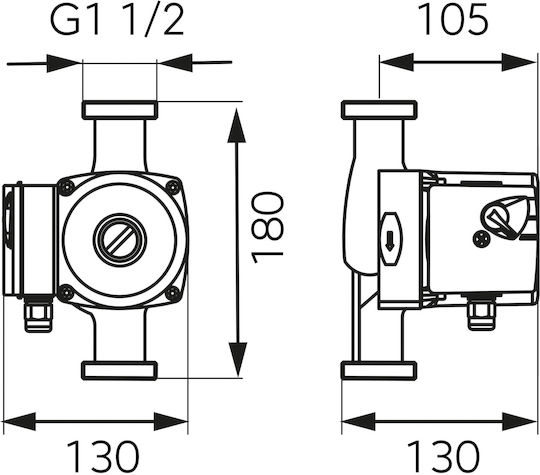

- Connection distance: 180 mm
- Connection: G1 1/2
- Ambient temperature: +2 °C to +40 °C
- Wine / Must
- No
- Olive Oil / Oil
- No
- Oil / Diesel / Fuels
- No
- Milk / Food
- No
- Chemicals / Acids / AdBlue
- No
- Water (Fresh / Sea)
- Yes
