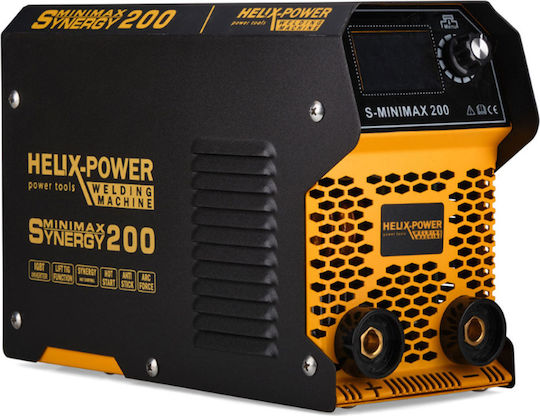

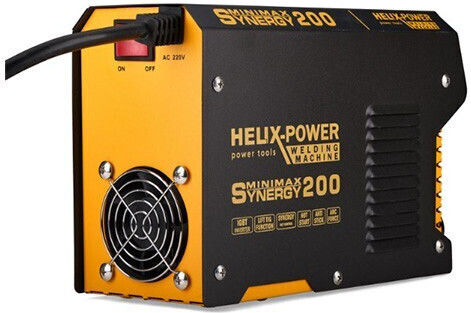

Helix Minimax Synergy Welding Machine Inverter MMA / TIG with Maximum Welding Current 200A and Duty Cycle 60%
Welding Machines

Helix Minimax Synergy Welding Machine Inverter MMA / TIG with Maximum Welding Current 200A and Duty Cycle 60%

Key features:

  • Synergy Digital Control Technology
  • Dual function MMA and Lift TIG
  • High welding current 200 Amps
  • Compatible with electrode up to 4mm

Adjust your settings with digital precision thanks to the smart synergic system that automatically adapts the power.

See full description

  • Welding Current

    200

    Suitable for professional use on thick metals, such as steel or cast iron constructions.

  • Duty Cycle

    The Duty Cycle is the portion of a ten-minute period that a welding machine can operate continuously at maximum Amperes before it needs to stop and cool down.

    2.

    For example, a welding machine with a maximum Amperage of 200 A and a Duty Cycle of 30% can operate continuously at 200 A for 3 minutes before it needs to stop.

  • Power

    7

    Affects the power consumption of the machine and determines if it can be supported by the electrical network you are using.
  • See all
126 00 €
Delivery by Mon, 10 Aug
14,00 €   shipping cost
Sent from Greece
From Vidakatsavidi 4.9 (11)
4.9 (11 reviews)
Greece
5 pieces
See Tools on the page of Vidakatsavidi
Review the product
Product report

Description

Description

At a glance

  • Synergy Digital Control Technology: Intelligent digital system that automatically coordinates parameters for perfect arc stability.
  • Dual MMA and Lift TIG Function: Absolute flexibility with the ability to weld with classic electrode as well as specialized TIG torch.
  • High welding current 200 Amperes: Top intensity with excellent 60% performance and 7 KVA power for demanding and continuous work.
  • Compatible with electrode up to 4mm: High penetration allowing the use of thick electrodes for very strong metal joints.

Specifications

  • Model: Minimax Synergy 200A (New Sminimax)
  • Technology: IGBT Inverter
  • Operating system: Synergy Digital Control
  • Welding current: 200 A
  • Duty cycle: 60%
  • Input power: 7 KVA
  • Cutting/welding functions: MMA (Electrode) & Lift TIG
  • Maximum electrode diameter: 4 mm
  • Digital systems: Adjustable Arc Force, Hot Start, Antistick
  • Safety system: VRD Safety (Voltage Reduction)
  • Device dimensions: 270 x 130 x 190 mm
  • Weight: 2.5 kg

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Dimensions

Type
MMA, TIG

Type

MMA

Creates thick and strong bonds without the need for external gas supply, making it ideal for out-of-lab welding.

TIG

Slow welding for detailed work on aluminum and stainless steel, mainly. Requires experience and connection to an external gas cylinder. Does not create "spatters".
Welding Current (max)
200 A

Welding Current (max): 200


Suitable for professional use on thick metals, such as steel or cast iron constructions.
Operation Cycle (max Ampere)
60 %

Operation Cycle (max Ampere)

The Duty Cycle is the portion of a ten-minute period that a welding machine can operate continuously at maximum Amperes before it needs to stop and cool down.

2.

For example, a welding machine with a maximum Amperage of 200 A and a Duty Cycle of 30% can operate continuously at 200 A for 3 minutes before it needs to stop.
Power
7 kVA

Power: 7


Affects the power consumption of the machine and determines if it can be supported by the electrical network you are using.
Maximum Electrode Diameter
4 mm

Maximum Electrode Diameter: 4


The maximum electrode thickness that the machine can support, depending on the maximum current it can provide.
Weight
2500 gr

Additional Features

Inverter
Yes

Inverter


New technology welding. Very good in terms of performance, durability, and weight, but with a high cost of repair in case of damage. They have automation for better and safer work. If connected to a generator, it is recommended to choose one with 8kVA or more.
IGBT
Yes

IGBT


Allows the conversion of direct current (DC) voltage to alternating current (AC) or the output of direct current at a higher or lower intensity.
VRD
Yes

VRD


It is a voltage reduction device used in welding machines to improve user safety.
with Voltage Stabilizer
No
for Generator with AVR
No

Features

Hot Start
Yes

Hot Start


Temporarily increases the current intensity at the moment of welding initiation.
Anti Stick
Yes

Anti Stick


Cuts off the current if the electrode sticks to the metal, to prevent it from burning.
Arc Force
Yes

Arc Force


Helps in the stability of the arc during welding.
2T Operation
No
4T Mode
No
Spot Function
No
Pulsed
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

At a glance

  • Synergy Digital Control Technology: Intelligent digital system that automatically coordinates parameters for perfect arc stability.
  • Dual MMA and Lift TIG Function: Absolute flexibility with the ability to weld with classic electrode as well as specialized TIG torch.
  • High welding current 200 Amperes: Top intensity with excellent 60% performance and 7 KVA power for demanding and continuous work.
  • Compatible with electrode up to 4mm: High penetration allowing the use of thick electrodes for very strong metal joints.

Specifications

  • Model: Minimax Synergy 200A (New Sminimax)
  • Technology: IGBT Inverter
  • Operating system: Synergy Digital Control
  • Welding current: 200 A
  • Duty cycle: 60%
  • Input power: 7 KVA
  • Cutting/welding functions: MMA (Electrode) & Lift TIG
  • Maximum electrode diameter: 4 mm
  • Digital systems: Adjustable Arc Force, Hot Start, Antistick
  • Safety system: VRD Safety (Voltage Reduction)
  • Device dimensions: 270 x 130 x 190 mm
  • Weight: 2.5 kg

Manufacturer

Manufacturer Details

Warnings & Safety Information

Dimensions

Type
MMA, TIG

Type

MMA

Creates thick and strong bonds without the need for external gas supply, making it ideal for out-of-lab welding.

TIG

Slow welding for detailed work on aluminum and stainless steel, mainly. Requires experience and connection to an external gas cylinder. Does not create "spatters".
Welding Current (max)
200 A

Welding Current (max): 200


Suitable for professional use on thick metals, such as steel or cast iron constructions.
Operation Cycle (max Ampere)
60 %

Operation Cycle (max Ampere)

The Duty Cycle is the portion of a ten-minute period that a welding machine can operate continuously at maximum Amperes before it needs to stop and cool down.

2.

For example, a welding machine with a maximum Amperage of 200 A and a Duty Cycle of 30% can operate continuously at 200 A for 3 minutes before it needs to stop.
Power
7 kVA

Power: 7


Affects the power consumption of the machine and determines if it can be supported by the electrical network you are using.
Maximum Electrode Diameter
4 mm

Maximum Electrode Diameter: 4


The maximum electrode thickness that the machine can support, depending on the maximum current it can provide.
Weight
2500 gr

Additional Features

Inverter
Yes

Inverter


New technology welding. Very good in terms of performance, durability, and weight, but with a high cost of repair in case of damage. They have automation for better and safer work. If connected to a generator, it is recommended to choose one with 8kVA or more.
IGBT
Yes

IGBT


Allows the conversion of direct current (DC) voltage to alternating current (AC) or the output of direct current at a higher or lower intensity.
VRD
Yes

VRD


It is a voltage reduction device used in welding machines to improve user safety.
with Voltage Stabilizer
No
for Generator with AVR
No

Features

Hot Start
Yes

Hot Start


Temporarily increases the current intensity at the moment of welding initiation.
Anti Stick
Yes

Anti Stick


Cuts off the current if the electrode sticks to the metal, to prevent it from burning.
Arc Force
Yes

Arc Force


Helps in the stability of the arc during welding.
2T Operation
No
4T Mode
No
Spot Function
No
Pulsed
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
