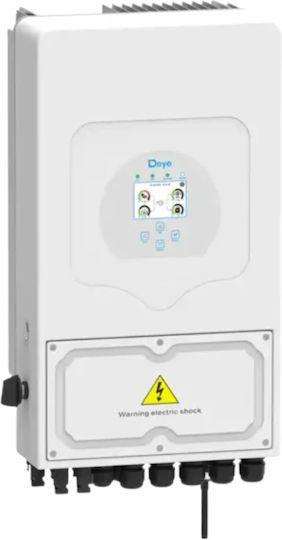

The DEYE SUN-6K-SG05LP1-EU is an advanced, single-phase hybrid inverter with a power capacity of 6,000W, specially designed for self-consumption photovoltaic systems with energy storage. It supports parallel operation On-Grid, Off-Grid, and backup, and is compatible with low-voltage (48V/51.2V) Lithium and Lead-Acid batteries. Equipped with 2 independent MPPTs, a built-in 135A charger, a color touch screen, and the ability to connect to a generator, it offers top flexibility and complete energy security for residential or commercial installations.

• Multifunctional Hybrid Operation: Operates as On-Grid, Off-Grid, and as a standalone Backup system (UPS) for uninterrupted power supply during grid outages.

• Dual MPPT & High DC Input: Features 2 independent MPPT trackers supporting a total photovoltaic power of up to 7,800W DC and a startup voltage as low as 125V for maximum output.

• Smart Battery Management (48V): Supports Lithium & Lead-Acid batteries with charging current up to 135A and charging/discharging up to 190A. Offers 6 programmable charging/discharging time periods for optimal use of electricity tariffs.

• AC Coupling & Generator Support: Capability to upgrade existing photovoltaic systems (AC Coupling), as well as automatic start/charging from a diesel generator.

• Parallel Capability up to 16 Units: Allows connection of up to 16 inverters in parallel for future system power expansion.

• Color Touchscreen & WiFi Monitoring: Built-in touchscreen for easy configuration and integrated WiFi for full remote monitoring via smartphone app.

• IP65 Protection & Zero Feed-In: Fully waterproof IP65 design for outdoor installation and support for zero feed-in operation to the grid.

• Manufacturer / Model: DEYE SUN-6K-SG05LP1-EU
• Inverter Type: Single-Phase Hybrid (On-Grid / Off-Grid / Hybrid)
• Rated AC Power: 6,000 W
• Maximum DC Input Power (PV): 7,800 W
• Maximum DC Voltage: 500 V (Starting Voltage: 125 V)
• Number of MPPT / Inputs: 2 MPPT (1+1 Inputs)
• Maximum PV Input Current: 13A + 13A (Short Circuit: 17A + 17A)
• Maximum Efficiency: 97.6% (European: 96.5%)
• Battery Voltage: 48V / 51.2V (Lithium / Lead-Acid)
• Maximum Battery Charging Current: 135 A
• Maximum Charging/Discharging Current: 190 A
• Maximum AC Output Current: 28.7 A
• Communication / Ports: WiFi, RS485, CAN Bus (Supports BMS / Smart Meter)
• Protection Rating: IP65
• Dimensions (W x D x H): 580 x 330 x 232 mm
• Weight: 24.9 kg
