Legrand Automatic Circuit Breaker 32A AC 403360
Automatic Circuit Breaker

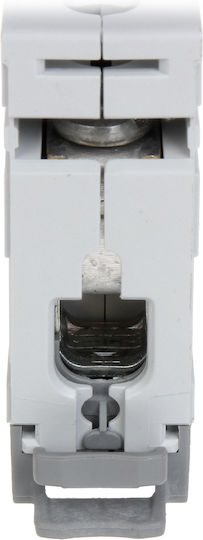

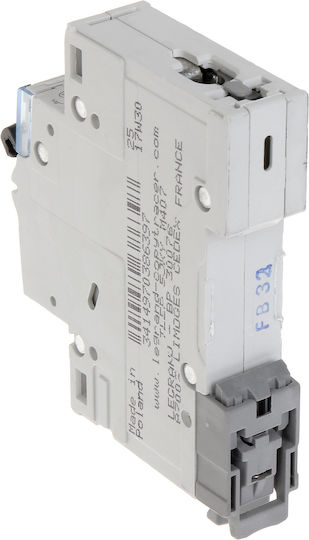

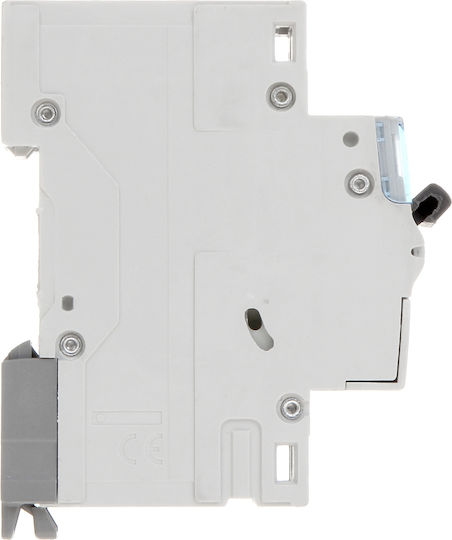

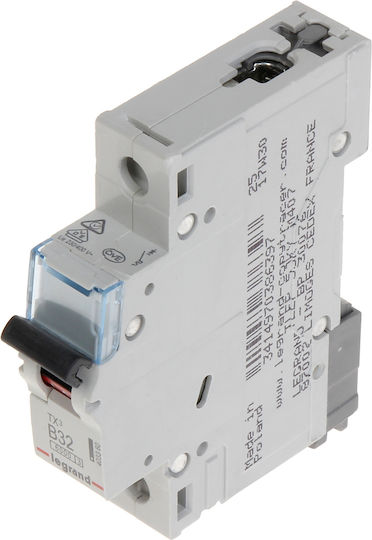

Legrand Automatic Circuit Breaker 32A AC 403360

The Legrand 403360 miniature circuit breaker is single-pole, with a rated current of 32 A and a B trip curve. It is designed to protect lighting, control and socket circuits against short circuits and...

The Legrand 403360 miniature circuit breaker is single-pole, with a rated current of 32 A and a B trip curve. It is designed to protect lighting, control and socket circuits against short circuits and overloads.

It mounts on a TS-35 DIN rail and connects via screw terminals or a comb busbar with pin terminals. It can be fitted with auxiliary contacts, coils...

See Description & Specifications See Description & Specifications
7 91 €
Delivery Fri, 13 Nov - Thu, 19 Nov
14,00 €   shipping cost
Sent from Greece
From Papantoniou 4.5 (31)
4.5 (31 reviews)
Greece
20+ pieces
See Electrical Panel Supplies on the page of Papantoniou

Shop selection criteria

Why do we recommend buying from this shop?

We don’t only look at the price. We weigh different factors to find an offer that combines a good price, fast delivery and a reliable purchase.

  • Product price

    We calculate the total price you will pay and any discounts available from the shop.

  • Shipping & delivery time

    We check how quickly the product can be shipped and when you will receive it, based on your address.

  • Shop reliability

    We look at how often shops complete their orders successfully and how consistently they serve their customers.

  • Official reseller

    Where available, we take into account whether the shop is an official reseller of the brand.

Learn more about invoicing
Review the product
Product report

Description & Specifications

The Legrand 403360 miniature circuit breaker is single-pole, with a rated current of 32 A and a B trip curve. It is designed to protect lighting, control and socket circuits against short circuits and overloads.

It mounts on a TS-35 DIN rail and connects via screw terminals or a comb busbar with pin terminals. It can be fitted with auxiliary contacts, coils and operating mechanisms from the DX3 range, and includes space for a description label.

  • Rated current: 32 A
  • Current type: AC
  • Poles: 1
  • Trip curve: B
  • Short-circuit breaking capacity: 6,000 A according to IEC 60898-1 and 10 kA according to IEC 60947-2
  • Rated voltage: 230/400 V~
  • Frequency: 50 Hz
  • Terminal type: Screw
  • Mounting: TS-35 DIN rail
  • Width: 1 module, 17.5 mm
  • Dimensions: 83 x 74 x 17.5 mm
  • Weight: 0.136 kg
  • Connection to residual current device: Not supported

Manufacturer

Manufacturer Details

Warnings & Safety Information

Specifications

Rated Current
32 A
Operating Curve
Curve B

Operating Curve

The tripping curve shows the time required for the circuit breaker to switch off in relation to the current passing through it. For small overcurrents, the tripping is delayed to avoid unnecessary interruptions, while for very high values, such as in the case of a short circuit, the breaker operates immediately to protect the circuit. Different types of curves are used depending on the needs of each installation and the type of loads.

Curve B

Suitable for domestic circuits and lighting, it activates quickly at low overcurrents.

Power Supply

AC
Yes
DC
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
