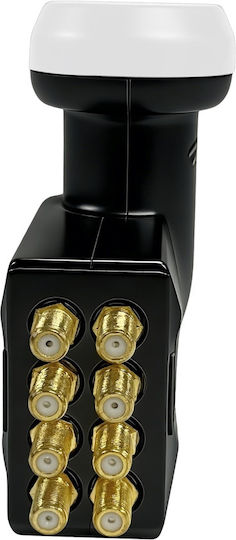

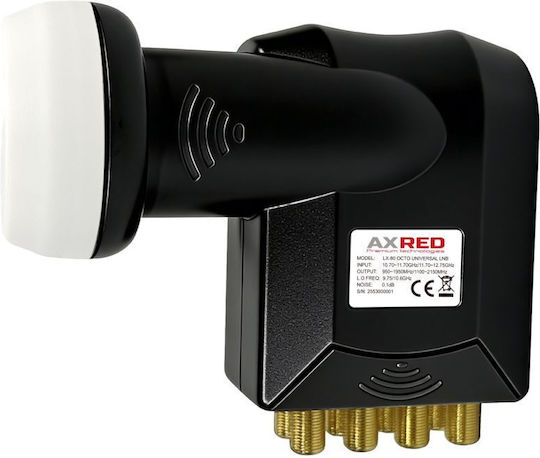

AXRED Octo LNB LX-80 0.1dB GOLD LINE UNIVERSAL
The AXRED LX-80 Octo GOLD LINE Universal LNB offers reliable satellite signal reception and is ideal for installations with multiple televisions without the use of a multiswitch.
- Noise Figure: 0.1 dB Low Noise for clear signal reception
- Umbrella weather protection cap: for protection from rain and humidity
- Gold-plated F connectors: for better conductivity
- Golden connector tips: for corrosion resistance
- Stable and strong signal even in difficult weather conditions
Technical specifications:
- Noise Figure: 0.1 dB
- Frequency range: 10.7 – 12.75 GHz
- Output frequency: 950 – 2150 MHz
- Local Oscillator: 9.75 / 10.6 GHz
- Conversion Gain: 55 – 65 dB
- Power consumption: Max 210 mA
Compatibility:
- DVB-S satellite receivers
- DVB-S2 satellite receivers
- HD / Full HD / 4K receivers
Ideal for:
- Installations with up to 8 televisions
- Large residential installations
- Stable reception on Astra, Hotbird, and other satellites
- Product Number
- AX-14523
- Type
- Octo
- Low Noise Limit
- 0.1 dB
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
