Welding Consumables

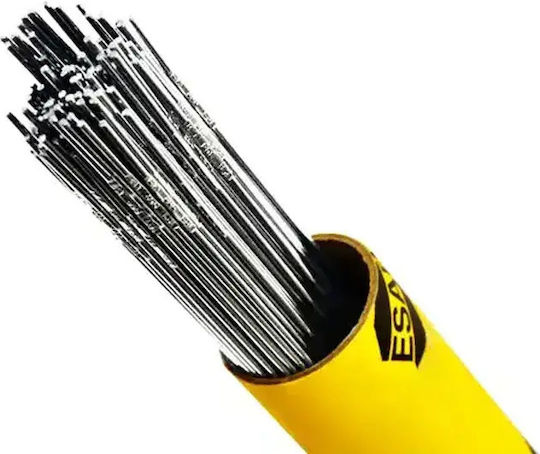

Tig Rods Stainless Steel Ok Tigrod 316l Diameter 2.0x1000mm A5.9 Er 316l

The ESAB Tigrod 316L stainless steel TIG rod is designed for welding 18% Cr - 8% Ni and 18% Cr - 10% Ni - 3% Mo austenitic alloys. Its low carbon content helps resist intergranular corrosion, while it...

The ESAB Tigrod 316L stainless steel TIG rod is designed for welding 18% Cr - 8% Ni and 18% Cr - 10% Ni - 3% Mo austenitic alloys. Its low carbon content helps resist intergranular corrosion, while it offers corrosion resistance in acidic and chloride-containing environments. It is used in the chemical industry, food industry, shipbuilding, and architectural...

See Description & Specifications See Description & Specifications
30 82 €
Delivery by Mon, 23 Nov
14,00 €   shipping cost
Sent from Greece
From Weldingshop

Learn more about invoicing

Description & Specifications

The ESAB Tigrod 316L stainless steel TIG rod is designed for welding 18% Cr - 8% Ni and 18% Cr - 10% Ni - 3% Mo austenitic alloys. Its low carbon content helps resist intergranular corrosion, while it offers corrosion resistance in acidic and chloride-containing environments. It is used in the chemical industry, food industry, shipbuilding, and architectural construction.

  • Type: TIG rod
  • Material: Stainless steel
  • Diameter: 2 mm
  • Length: 1000 mm
  • Pieces: 1
  • Weld metal yield strength: 470 MPa
  • Weld metal tensile strength: 600 MPa
  • Elongation: 32%
  • Charpy V-notch impact toughness at 20 °C: 175 J
  • Charpy V-notch impact toughness at -60 °C: 130 J
  • Charpy V-notch impact toughness at -110 °C: 120 J
  • Charpy V-notch impact toughness at -196 °C: 75 J
  • Weld metal composition: C 0.01%, Mn 1.8%, Si 0.4%, S 0.01%, P 0.02%, Ni 12%, Cr 19%, Mo 2.6%, Cu 0.1%, N 0.05%, FN (WRC-92) 7
  • Rod composition: C 0.01%, Mn 1.7%, Si 0.4%, S 0.010%, P 0.015%, Ni 12.0%, Cr 18.2%, Mo 2.6%, Cu 0.10%, N 0.04%, FN (WRC-92) 7

Manufacturer

Specifications

Type
Electrodes
Pieces
1 pcs

Dimensions

Diameter
2 mm

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
