Electric Panel Meters

Atlo Electric Panel Meter Analog Single Phase Wi-Fi Bluetooth Tuya

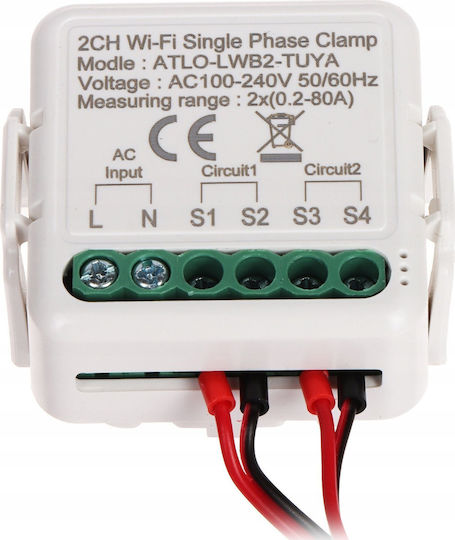

The Atlo electrical energy meter operates in single-phase circuits and performs semi-indirect measurements using current transformers. It is suitable for lighting circuits and high-power outlets,...

The Atlo electrical energy meter operates in single-phase circuits and performs semi-indirect measurements using current transformers. It is suitable for lighting circuits and high-power outlets, while Wi-Fi and Bluetooth connectivity allow access via the Tuya Smart app for Android and iOS.

  • Display type: Analog
  • Number of phases: Single-phase
  • Channels: 2
  • ...
See full description See full description

Top specs

See all
  • Connectivity Wi-Fi, Bluetooth
  • Smart Ecosystem Tuya
44 01 €
Delivery Thu, 26 Nov - Wed, 02 Dec
14,00 €   shipping cost
Sent from Greece
From Getters 4.5 (118)

Learn more about invoicing

Description & Specifications

The Atlo electrical energy meter operates in single-phase circuits and performs semi-indirect measurements using current transformers. It is suitable for lighting circuits and high-power outlets, while Wi-Fi and Bluetooth connectivity allow access via the Tuya Smart app for Android and iOS.

  • Display type: Analog
  • Number of phases: Single-phase
  • Channels: 2
  • Connectivity: 2.4 GHz Wi-Fi, IEEE 802.11 b/g/n, and Bluetooth LE
  • Smart ecosystem: Tuya Smart
  • Operating voltage: 230 V AC, 50 / 60 Hz
  • Maximum current: 2 × 80 A
  • Measurement method: Semi-indirect, using current transformers
  • Measured parameters: Voltage, current, power consumption
  • Connection: Screw terminals
  • Housing material: Plastic
  • Operating temperature: -10 °C to 40 °C
  • Dimensions: 44 × 39 × 22 mm
  • Weight: 0.13 kg

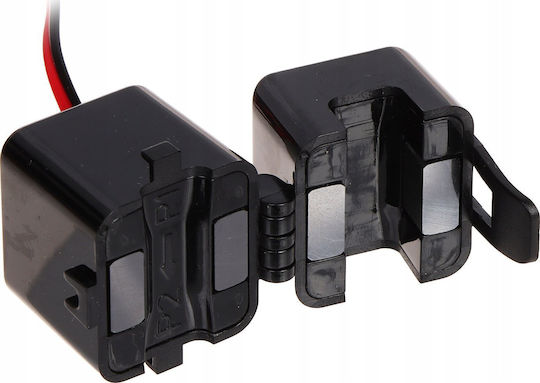

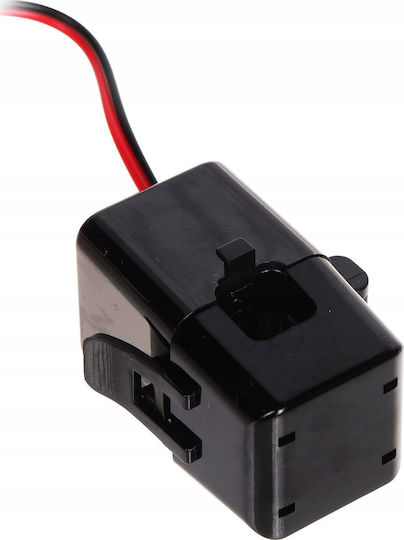

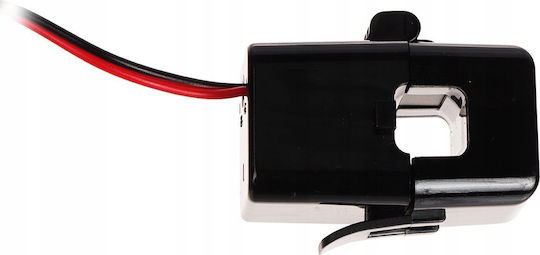

  • Package contents: 2 current transformers

Manufacturer

Specifications

Display Type
Analog
Number of Phases
Single-phase
Maximum Current
80 A

Smart Features

Connectivity
Wi-Fi, Bluetooth
Smart Ecosystem
Tuya

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
