Description
Specifications

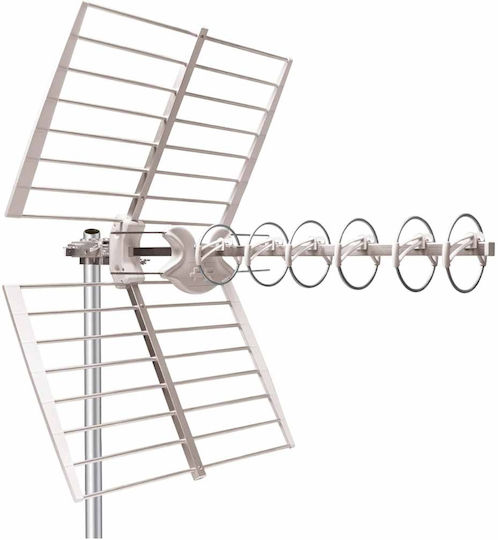

The Fracarro ALPHA10EVO 5G is an outdoor UHF “loop Yagi” TV antenna with 6 elements. Its integrated dipole reflector includes an LTE filter that isolates interference from 4G and 5G signals in the 694–860 MHz band. The elements are pre-assembled for tool-free installation.
It attaches to a mast using an elevation adjustment system and a wing nut. Its construction is designed to withstand weather conditions.
- Installation: Outdoor, on a mast
- Antenna type: UHF “loop Yagi”
- Elements: 6
- Channels: E21–E48
- Bandwidth: 470–694 MHz
- Gain: 15.5 dBi
- Front-to-back ratio: 30 dB
- Return loss: −18 dB
- Beamwidth (3 dB): ±22°
- Connector: F connector, 75 Ω
- Maximum mast diameter: 60 mm
- Dimensions: 91 × 54 cm
- Weight: 1.75 kg
- Filter: LTE for the 694–860 MHz band
- Assembly: Tool-free
- Power supply: Not required
- Placement
- Outdoor
- Requires Power
- No
- Colour
- -
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
