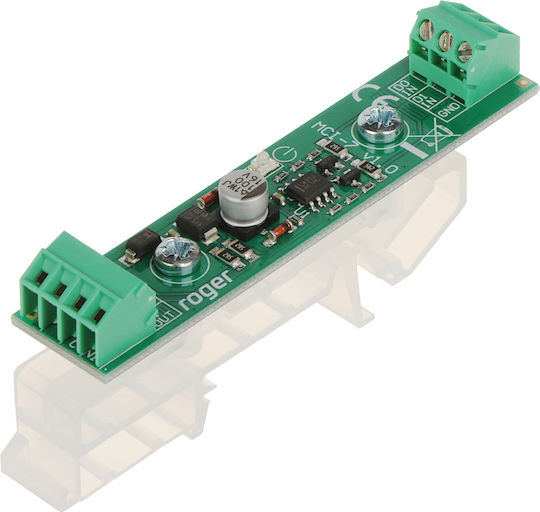

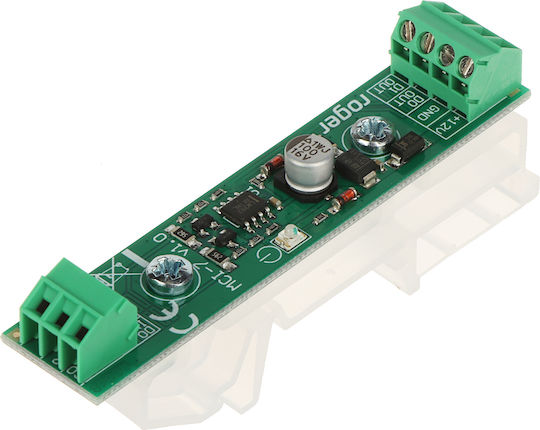

The MCI-7 interface is a isolator and matching device used in cases of Wiegand electrical interface incompatibility between ROGER devices and devices from other manufacturers. The interface enhances and improves data transfer stability in accordance with the Wiegand standard.

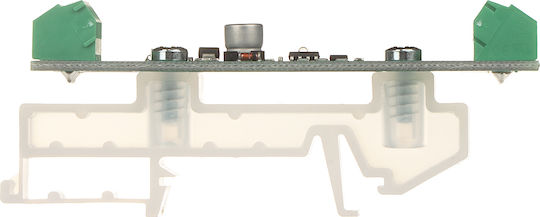

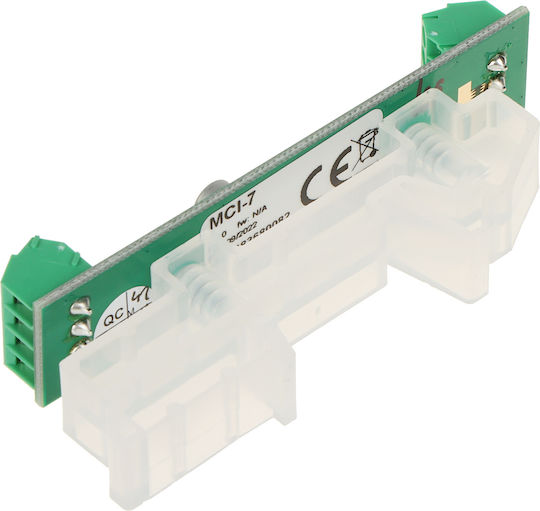

Installation: Can be installed on a TS-35 DIN rail.

Technical specifications:

• Power supply: 10 V ... 15 VDC
• Power consumption: 10 mA
• Operating temperature: 5 °C ... 40 °C
• Suitable relative humidity: 10 % ... 95 % (non-condensing)
• Weight: 0.016 kg
• Dimensions: 85 x 17 x 34 mm
• Manufacturer / Brand: ROGER

Selected features:

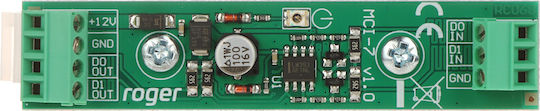

• D0 IN, D1 IN trigger threshold approximately 3.3V
• D0 OUT, D1 OUT open-collector outputs with load capacity of 5mA in low state
• LED indicator
• Distance between the unit and the reader: 150 m
• Distance between the unit and the controller: as short as possible, installation inside the controller enclosure is recommended
• Internal Category I
