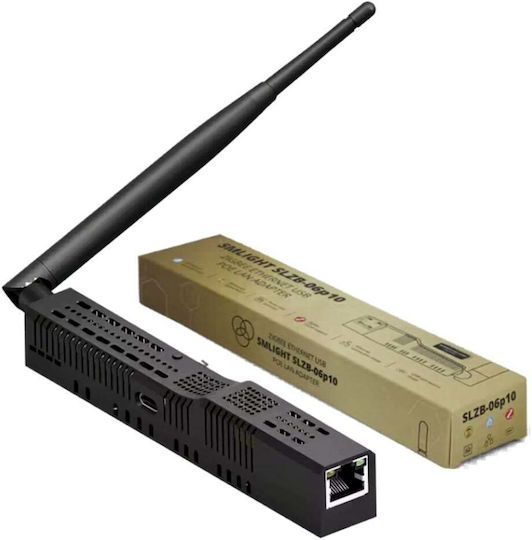

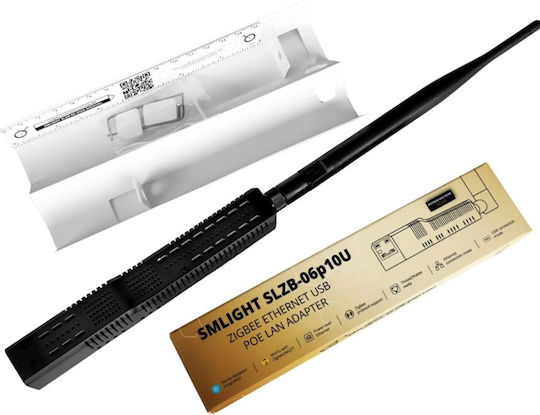

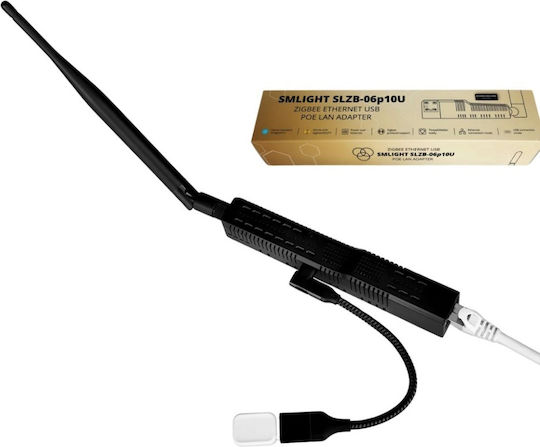

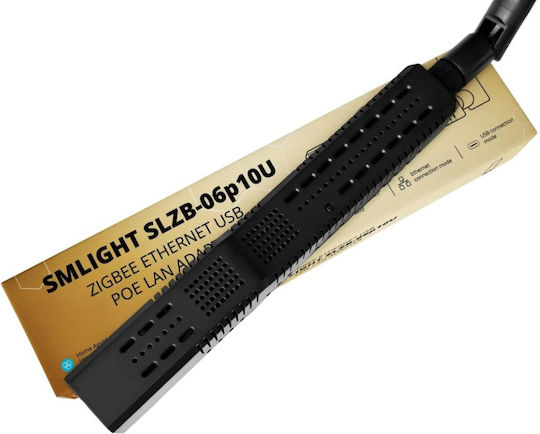

The SMLIGHT SLZB-06p10U is a professional Zigbee 3.0 coordinator and router designed for use with Home Assistant, Zigbee2MQTT, ZHA, and other local smart home platforms. It supports Ethernet, PoE, Wi-Fi, and USB connectivity, offering exceptional installation flexibility.

At its core is the Texas Instruments CC2674P10 Zigbee chipset, one of the most powerful Zigbee radio systems available. It is combined with a +20 dBm power amplifier and an external +5 dBi antenna, significantly improving the stability and coverage of the Zigbee network.

The SLZB-06p10U can operate either as a Zigbee Coordinator or as a Zigbee Router. The operating mode can be selected through the built-in web interface. Thanks to Ethernet connectivity, it can be installed in the optimal radio location, minimizing interference from computers and NAS devices.

The device supports Zigbee2MQTT and ZHA, while the OpenThread Border Router capability enables deployment in Matter-over-Thread environments. PoE support provides both power and data through a single Ethernet cable, suitable for server rooms and structured network installations.

The advanced web interface provides access to firmware updates, network settings, mode changes, and diagnostic functions. Firmware updates for Zigbee and ESP can be performed directly from the web interface.

• Zigbee chipset: Texas Instruments CC2674P10
• Multiple connectivity options: Ethernet, PoE, Wi-Fi, and USB
• Zigbee Coordinator and Router modes
• Mode selection via firmware switching
• +20 dBm RF amplifier for extended Zigbee coverage
• External +5 dBi antenna for improved signal performance
• PoE support for power and data over a single Ethernet cable
• Built-in web management interface
• OTA firmware updates for Zigbee and ESP
• Matter-over-Thread support via OpenThread Border Router

• Power supply: PoE (IEEE 802.3af) or USB-C
• PoE power: 15 W
• Ethernet speed: 10/100 Mbps
• Zigbee RF output: +20 dBm
• External antenna gain: +5 dBi
• Low power consumption for continuous operation

• Product name: SMLIGHT SLZB-06p10U
• Product type: Zigbee Coordinator Ethernet / PoE / USB / Wi-Fi
• Processor: ESP32
• Zigbee protocol: Zigbee 3.0
• Dimensions: 160 × 22 × 24 mm
• Operating temperature: +5°C to +35°C
• Mounting options: Wall, furniture, or surface
• Application area: Indoor use
