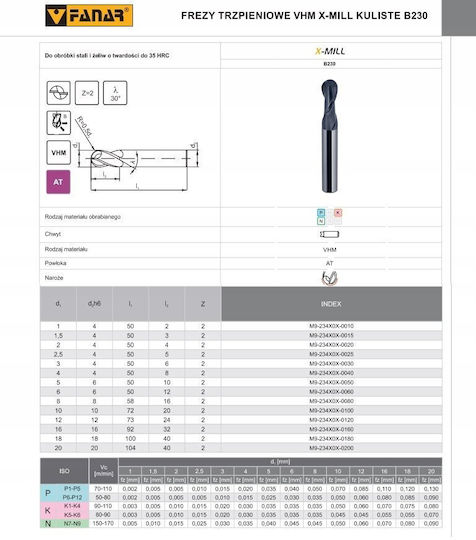

Fanar Carbide End Mill Dia 1.0 R0.5 2/50 Z2 Ha4 Vhm At B230 X-mill B230

The Fanar X-MILL B230 cylindrical end mill is used for machining steel and cast iron with a hardness of up to 35 HRC, as well as for creating grooves and straight cuts. Its solid carbide construction...

The Fanar X-MILL B230 cylindrical end mill is used for machining steel and cast iron with a hardness of up to 35 HRC, as well as for creating grooves and straight cuts. Its solid carbide construction and variable cutting-edge geometry help reduce vibration during operation.

  • Type: End mill
  • Quantity: 1
  • Material: Solid carbide
  • Workpiece material: Steel and...
See Description & Specifications See Description & Specifications
40 90 €
Delivery Wed, 18 Nov - Tue, 24 Nov
14,00 €   shipping cost
Sent from Greece
From Getters 4.5 (115)

Learn more about invoicing

Description & Specifications

The Fanar X-MILL B230 cylindrical end mill is used for machining steel and cast iron with a hardness of up to 35 HRC, as well as for creating grooves and straight cuts. Its solid carbide construction and variable cutting-edge geometry help reduce vibration during operation.

  • Type: End mill
  • Quantity: 1
  • Material: Solid carbide
  • Workpiece material: Steel and cast iron
  • Maximum workpiece hardness: 35 HRC
  • Diameter: 1 mm
  • Shank diameter: 1 mm
  • Shape: Cylindrical
  • Shank type: Cylindrical
  • Number of cutting edges: 2
  • Working length: 50 mm
  • Cutting length: 2 mm
  • Overall length: 50 mm
  • Point angle: 2°
  • Helix angle: 30°

Manufacturer

Dimensions

Type
Cutter Bit
Pieces
1 pcs
Shape
Cylindrical
Material Construction
Carbide
Shank
1 mm
Case
No
Diameter
2 mm

Processing Material

Metal
No
Wood
No
Building Materials
No
Aluminum
No
Drywall
No
Glass
No
Plastic
No
