Kanlux Four-Pole Rail Switch 25A
Electrical Panel Push Buttons Switches

Kanlux Four-Pole Rail Switch 25A

The Kanlux KRD10-4/25/30-AC four-pole AC residual current circuit breaker is designed to protect against electric shock in electrical installations. It is mounted on a TH35 rail and has a breaking...

The Kanlux KRD10-4/25/30-AC four-pole AC residual current circuit breaker is designed to protect against electric shock in electrical installations. It is mounted on a TH35 rail and has a breaking capacity of 10 kA.

  • Type: AC
  • Number of poles: 4
  • Rated current: 25 A
  • Residual current: 30 mA
  • Operating and insulation voltage Ui: 400 V
  • Breaking capacity: 10,000 A...
See Description & Specifications See Description & Specifications

Learn more about invoicing
Review the product
Product report

Description & Specifications

The Kanlux KRD10-4/25/30-AC four-pole AC residual current circuit breaker is designed to protect against electric shock in electrical installations. It is mounted on a TH35 rail and has a breaking capacity of 10 kA.

  • Type: AC
  • Number of poles: 4
  • Rated current: 25 A
  • Residual current: 30 mA
  • Operating and insulation voltage Ui: 400 V
  • Breaking capacity: 10,000 A (10 kA)
  • Protection rating: IP20
  • Modules: 4
  • Frequency: 50 Hz
  • Conductor cross-section: up to 35 mm²
  • Operating temperature: -25 °C to +40 °C
  • Installation: On a TH35 rail

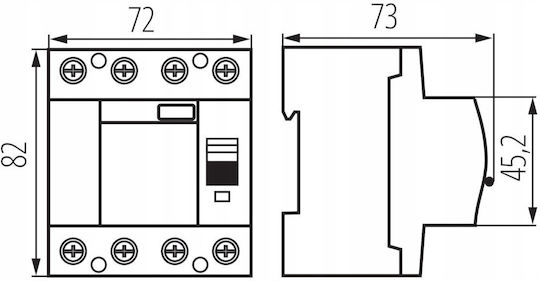

  • Dimensions: 72 × 82 × 73 mm (length × width × depth)
  • Colour: Grey
  • Compliance: CE

Manufacturer

Manufacturer Details

Warnings & Safety Information

Specifications

Number of Poles
4
Rated Voltage
25 A

Features & Functions

WiFi
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

30,90 €
14,00 €   shipping cost
