Schneider Electric Panel Switch
Electrical Panel Push Buttons Switches

Schneider Electric Panel Switch

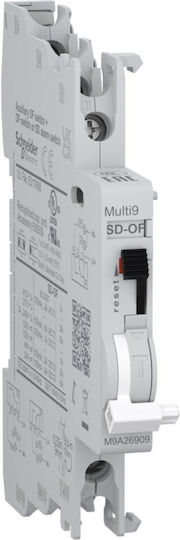

The Schneider Electric M9A26909 auxiliary and signal contact is designed for mounting on a DIN rail. It has two C/O contacts, a mechanical indicator, and screw terminals at the top and bottom.

  • Type:...

The Schneider Electric M9A26909 auxiliary and signal contact is designed for mounting on a DIN rail. It has two C/O contacts, a mechanical indicator, and screw terminals at the top and bottom.

  • Type: Auxiliary and signal contact
  • Contacts: 2 C/O
  • Indication: Mechanical
  • Connection: Screw terminals at the top and bottom
  • Mounting: On a DIN rail
  • Current: 100 mA to...
See Description & Specifications See Description & Specifications

Learn more about invoicing
Review the product
Product report

Description & Specifications

The Schneider Electric M9A26909 auxiliary and signal contact is designed for mounting on a DIN rail. It has two C/O contacts, a mechanical indicator, and screw terminals at the top and bottom.

  • Type: Auxiliary and signal contact
  • Contacts: 2 C/O
  • Indication: Mechanical
  • Connection: Screw terminals at the top and bottom
  • Mounting: On a DIN rail
  • Current: 100 mA to 6 A
  • AC voltage: 24 VAC to 415 VAC
  • DC voltage: 24 VDC to 130 VDC
  • Maximum insulation voltage: 500 V
  • Maximum impulse withstand voltage: 4 kV
  • Dimensions: 90 × 9 × 68 mm
  • Weight: 38 g
  • Color: Gray
  • Protection rating: IP20
  • Operating temperature: -25 to 70 °C
  • Storage temperature: -40 to 85 °C
  • Standards: EN/IEC 60947-5-1, UL 1077, UL 489
  • Certifications: CE, UKCA, UL
  • Pollution degree: 3
  • Tropicalization: 2
