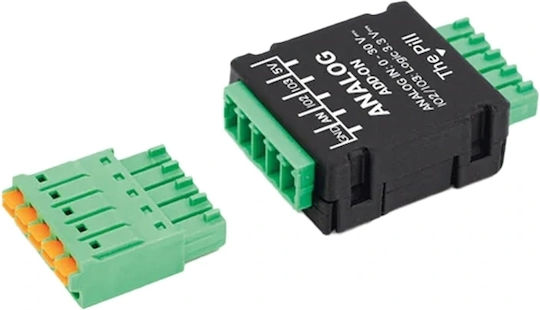

The Shelly 0-30 V analog module is an add-on accessory for Shelly The Pill and enables accurate DC voltage measurement up to 30 V. This module expands the capabilities of Shelly The Pill, allowing monitoring of analog sensors and power sources that operate across wider voltage fluctuations.

• DC voltage measurement range: 0 to 30 V
• Accurate monitoring: Ideal for 4.2 V, 12 V, and 24 V batteries, as well as popular 0–5 V analog sensors.
• Adaptability: Supports especially DIY projects and demanding technical installations.
• Features: Operating temperature range from 0°C to 40°C, with humidity of 30–70% RH.

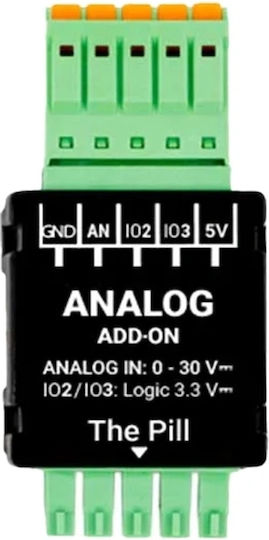

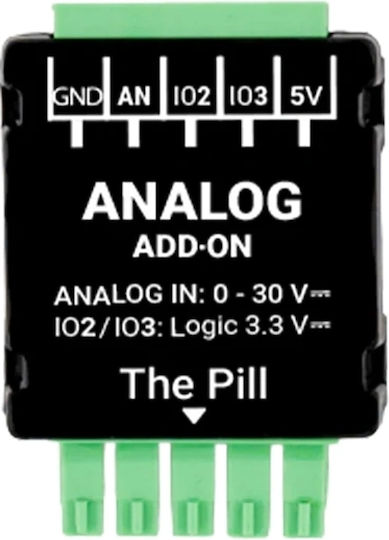

The module’s compact design (36.5 × 26.5 × 11.5 mm) makes installation easy in limited spaces. The additional configurable IO2 and IO3 terminals, operating at 3.3 V logic, expand integration possibilities in automation.

The Shelly 0-30 V analog module is designed for easy integration with Shelly The Pill, requiring the 5-Terminal Add-on for installation. This enables data collection from connected analog sensors and voltage sources for automation and monitoring.

General information:

• Manufacturer: Shelly
• Model: Analog 0 - 30V Add-on
• Compatibility: Shelly The Pill

Physical specifications:

• Dimensions: 36.5 × 26.5 × 11.5 mm
• Weight: 8 g
• Enclosure color: Black

Environmental conditions:

• Operating temperature: 0°C to 40°C
• Storage temperature: -20°C to 40°C
• Humidity: 30% to 70% relative humidity
• Maximum operating altitude: 2,000 m

Sensors and measurements:

• DC voltage measurement range: 0 to 30 V
• Measurement accuracy: ±(2% + 5 digits)

Input specifications:

• Digital input activation voltage: Low (LOW): 2.48 V
• Maximum digital input voltage: 3.3 V

Output specifications:

• Maximum switching voltage: 3.3 V
• Maximum switching current: 20 mA
