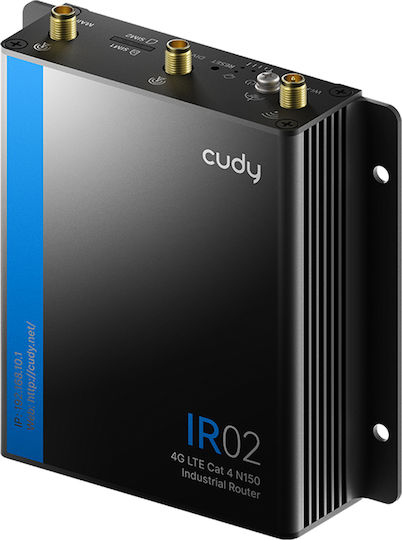

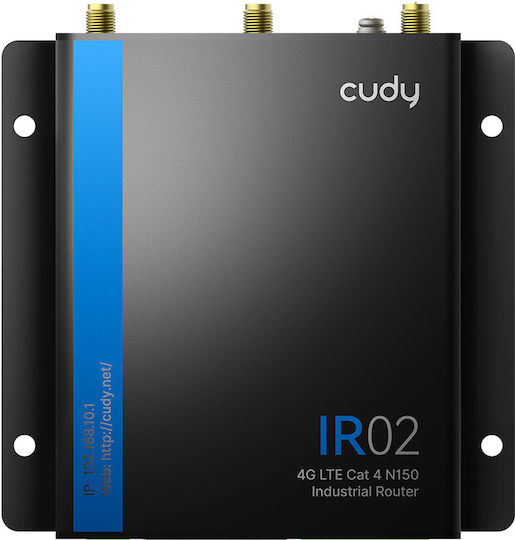

The Cudy IR02_EU combines 4G LTE Cat. 4 router and modem functions for industrial applications and automation. It features 2.4 GHz N150 Wi-Fi, slots for two Nano SIM cards with automatic connection switching, RS232/RS485 interfaces, and digital inputs and outputs (DI/DO). Its IP30 metal enclosure is suitable for operating temperatures from -40 °C to 75 °C.

It supports Modbus TCP over a serial connection, remote management, and VPN via PPTP, L2TP, OpenVPN, WireGuard, Zerotier, and IPsec. It also includes an SPI firewall, DoS attack protection, and WPA/WPA2/WPA3 security features.

• Type: 4G LTE router and modem
• Quantity: 1
• Networks: 4G LTE / 3G
• Standards: LTE Cat. 4, 3G WCDMA
• LTE download speed: Up to 150 Mbps
• LTE upload speed: 50 Mbps
• Wi-Fi: 2.4 GHz, up to 150 Mbps
• SIM cards: 2 Nano SIM

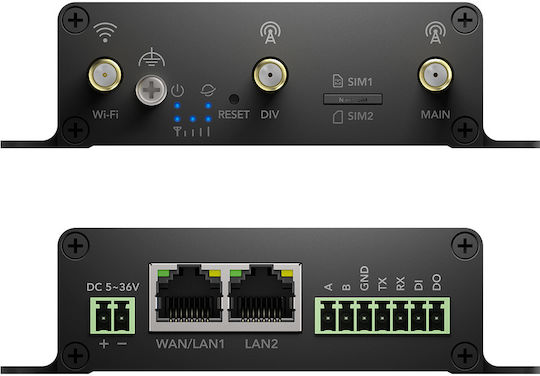

• Antennas: 2 omnidirectional 4G LTE antennas and 1 omnidirectional Wi-Fi antenna with an SMA connector
• LAN/WAN ports: 1 x 10/100 Mbps LAN/WAN and 1 x 10/100 Mbps LAN
• Industrial interfaces: RS232, RS485, DI/DO
• VPN: PPTP, L2TP, OpenVPN, WireGuard, Zerotier, IPsec
• Network features: Modbus TCP over a serial connection, automatic SIM switching, port forwarding, IGMP Snooping, seamless roaming, network topology and status monitoring
• Security: WPA/WPA2/WPA3, SPI firewall, protection against DoS, DDoS, SYN, SSH, and HTTP/HTTPS attacks, and MAC and IP address filtering
• Enclosure protection rating: IP30
• Enclosure material: Metal
• Operating temperature: -40 °C to 75 °C
• Operating relative humidity: 5% to 95%, non-condensing
• Power supply: 5–36 VDC, 2-pin industrial connector
• Protection standards: EN61373, EMC Level 3
• Dimensions: 104.4 x 103 x 28.3 mm
