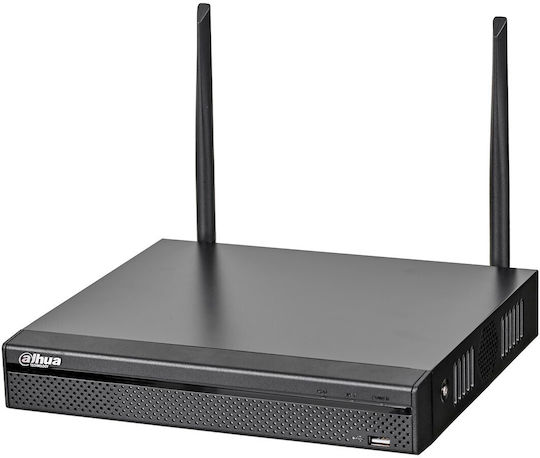

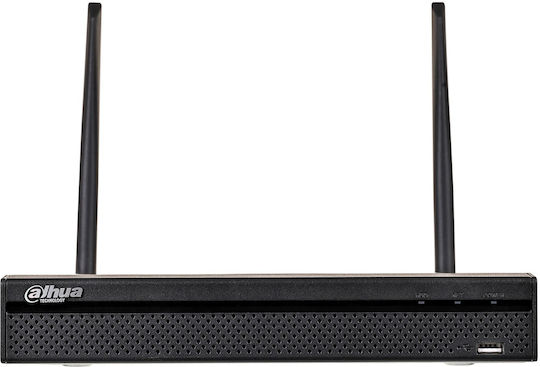

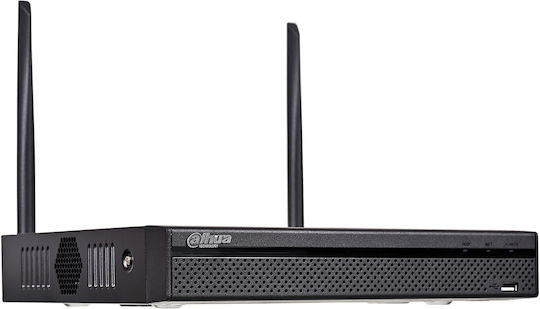

Dahua NVR1104HS-W-S2-CE NVR WiFi 4 Channel Recorder with Full HD Resolution
Surveillance Video Recorders

Dahua NVR1104HS-W-S2-CE NVR WiFi 4 Channel Recorder with Full HD Resolution

Key features:

  • 4-channel Wi-Fi Network NVR
  • Supports resolution up to 6MP
  • Smart H.265+/H.265 compression
  • Disk capacity up to 16TB

Discover advanced security with Smart H.265+ technology for superior image quality and maximum storage savings.

See full description

Top specs

  • Type

    NVR

    Recorder that uses IP cameras and network connection for video recording and management.

  • Number of Channels

    The maximum number of cameras that can be connected to and managed by the recorder

  • Resolution

    Full HD

    It offers a sharp, clear image (2 Megapixels), allowing you to distinguish details, such as faces or objects, with clarity.

  • WiFi

    Specifies whether the device can connect wirelessly to your router (Wi-Fi)

  • Incoming Bandwidth

    This is the actual processing power of the recorder. It determines how much "load" (data) it can handle simultaneously from all cameras. A high number is necessary for many channels at high 4K resolution.


    • Example 1: You have 4 cameras of 5MP (each requiring ~8 Mbps). A total of ~32 Mbps is required. An NVR with 80 Mbps Incoming Bandwidth is more than enough.
    • Example 2: You have 16 cameras of 4K (each requiring ~12 Mbps). A total of ~192 Mbps is required. An NVR with 160 Mbps is not enough and will "lose" cameras or reduce their quality. Here, you need an NVR with at least 256 Mbps.

    40

  • HDD Slots

    The number of internal hard drives (SATA) that can be installed simultaneously in the recorder.

  • Maximum Capacity per Disk

    The maximum size (in TB - Terabytes) of the hard drive that the device "recognizes" and supports in each slot.

  • ONVIF

    ONVIF is a protocol that allows cameras and recorders from different manufacturers to communicate with each other.

  • Ports

    HDMI

    The digital output for video and audio. It is the standard way to connect the recorder to a modern TV or monitor (PC) and view your cameras in high resolution.

    PoE

    These ports allow you to connect IP cameras directly to the recorder. The camera receives power and transmits video through the same network cable, making installation extremely simple (plug-and-play).

    USB

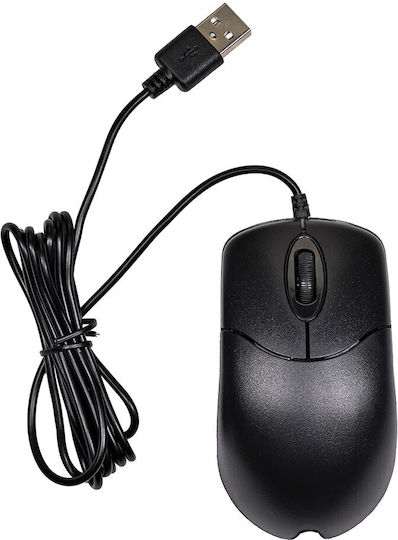

    Its main use is to connect a mouse for menu navigation and settings. Additionally, it is used to connect a USB stick (flash drive) in order to export (take a backup of) specific video clips that interest you.

    VGA

    An analog video output. Used to connect the recorder to older computer monitors.

  • Video Compression

    H.265+

    Smart version of H.265, designed for 4K/8K surveillance. It offers very low bandwidth in static scenes, combining high image quality with significant storage space savings.

    • The standard supports approximately 50–60 days of continuous recording on a 2TB hard drive

    (Values and durations are indicative and based on standard settings. Actual performance may vary depending on resolution, frame rate, scene movement, and hardware.)
  • See all

Learn more about invoicing
Review the product
Product report

Description

Description

At a glance

  • 4-channel Wi-Fi Network NVR: Wireless IEEE 802.11 b/g/n connectivity for easy installation without complicated cabling.
  • Supports resolution up to 6MP: High-definition image recording up to 3072 x 2048 pixels for exceptional detail clarity.
  • Smart H.265+/H.265 compression: Efficient bandwidth management and significant reduction in required storage space.
  • Drive capacity up to 16TB: Supports one SATA hard drive to meet long-term recording needs.

Wireless Wi-Fi Connectivity

Forget time-consuming installations and visible cables in your space. The built-in 2.4 GHz Wi-Fi module enables immediate and automatic pairing with compatible Dahua cameras, providing a stable signal and fast data transfer. This way, you can easily set up your security system while keeping the aesthetics of your space intact.

High Resolution and Smart H.265 Compression

Capture every critical detail with clarity reaching 6 Megapixels. Thanks to the advanced Smart H.265 compression algorithm, you maintain top video quality while saving up to 50% on bandwidth (bitrate) and hard drive storage space. Enjoy a crystal-clear image without burdening your network.

DMSS Remote Control

Have full control of your space, wherever you are, directly from your mobile phone. Through the free DMSS app for iOS and Android, you can monitor live channel footage, review recorded events, and receive instant notifications. P2P technology enables your device to connect quickly without complicated network settings.

Specifications

  • Manufacturer: DAHUA
  • Model: NVR1104HS-W-S2-CE
  • IP Channels: 4
  • Supported Resolution: Up to 6 Mpx (3072 x 2048 px)
  • Wi-Fi Standard: IEEE 802.11 b/g/n (2.4 GHz)
  • Bitrate: Up to 40 Mbps (16 Mbps via Wi-Fi)
  • Image Compression: Smart H.265 / H.265 / Smart H.264 / H.264 / MJPEG
  • Internal Drive Bay: 1 x SATA up to 16 TB

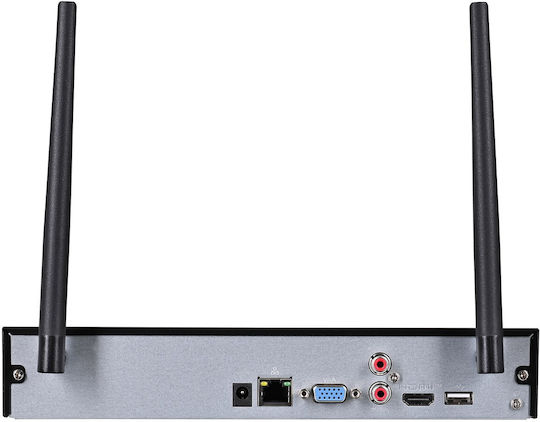

  • Video Outputs: 1 x HDMI, 1 x VGA
  • Audio Inputs/Outputs: 1 x CINCH In / 1 x CINCH Out (4 Audio Channels from cameras)
  • Network Ports: 1 x RJ-45 (10/100 Base-TX)
  • USB Ports: 2 x USB 2.0
  • Mobile App: DMSS (Android / iOS)
  • Network Protocols: HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, NTP, DHCP, DNS, P2P
  • Power Supply: 12 V DC / 1.5 A
  • Power Consumption: ≤ 10 W (without hard drive)
  • Operating Temperature: -10 °C to 45 °C
  • Dimensions: 260 x 248 x 48 mm
  • Weight: 0.83 kg

Package Contents

  • 1 x DAHUA NVR1104HS-W-S2-CE NVR Recorder

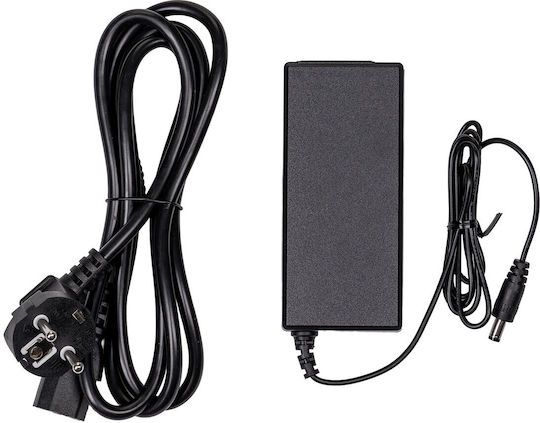

  • 1 x 12V DC / 1.5A Power Supply

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Specifications

Type
NVR

Type

NVR
Recorder that uses IP cameras and network connection for video recording and management.
Number of Channels Outputs
4

Number of Channels Outputs

The maximum number of cameras that can be connected to and managed by the recorder
Resolution
Full HD

Resolution

Full HD

It offers a sharp, clear image (2 Megapixels), allowing you to distinguish details, such as faces or objects, with clarity.
WiFi
Yes

WiFi

Specifies whether the device can connect wirelessly to your router (Wi-Fi)
Incoming Bandwidth
40 Mbps

Incoming Bandwidth: 40

This is the actual processing power of the recorder. It determines how much "load" (data) it can handle simultaneously from all cameras. A high number is necessary for many channels at high 4K resolution.


  • Example 1: You have 4 cameras of 5MP (each requiring ~8 Mbps). A total of ~32 Mbps is required. An NVR with 80 Mbps Incoming Bandwidth is more than enough.
  • Example 2: You have 16 cameras of 4K (each requiring ~12 Mbps). A total of ~192 Mbps is required. An NVR with 160 Mbps is not enough and will "lose" cameras or reduce their quality. Here, you need an NVR with at least 256 Mbps.
Gigabit Port
No

Gigabit Port

Specifies the speed of the wired network connection (LAN). "Gigabit" (1000 Mbps) is 10 times faster than standard "Fast Ethernet" (100 Mbps). It is essential for multi-channel 4K NVRs to handle the large volume of data from the cameras without delay.
Ports
HDMI, PoE, USB, VGA

Ports

HDMI
The digital output for video and audio. It is the standard way to connect the recorder to a modern TV or monitor (PC) and view your cameras in high resolution.
PoE

These ports allow you to connect IP cameras directly to the recorder. The camera receives power and transmits video through the same network cable, making installation extremely simple (plug-and-play).

USB

Its main use is to connect a mouse for menu navigation and settings. Additionally, it is used to connect a USB stick (flash drive) in order to export (take a backup of) specific video clips that interest you.

VGA

An analog video output. Used to connect the recorder to older computer monitors.
ONVIF
Yes

ONVIF

ONVIF is a protocol that allows cameras and recorders from different manufacturers to communicate with each other.
Video Compression
H.265+

Video Compression

H.265+

Smart version of H.265, designed for 4K/8K surveillance. It offers very low bandwidth in static scenes, combining high image quality with significant storage space savings.

  • The standard supports approximately 50–60 days of continuous recording on a 2TB hard drive

(Values and durations are indicative and based on standard settings. Actual performance may vary depending on resolution, frame rate, scene movement, and hardware.)

Smart AI Detection

Human Detection
No

Human Detection

The technology recognizes human shapes in real time. Ideal for security, area monitoring, or alarms, reducing false alarms caused by other objects.
Vehicle Detection
No

Vehicle Detection

Recognizes and tracks vehicles, distinguishing them from other objects. Useful for parking, traffic management, or road surveillance.

HDD

HDD Slots
1

HDD Slots

The number of internal hard drives (SATA) that can be installed simultaneously in the recorder.
Maximum Capacity per Disk
16 TB

Maximum Capacity per Disk

The maximum size (in TB - Terabytes) of the hard drive that the device "recognizes" and supports in each slot.
Includes Hard Drive
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

At a glance

  • 4-channel Wi-Fi Network NVR: Wireless IEEE 802.11 b/g/n connectivity for easy installation without complicated cabling.
  • Supports resolution up to 6MP: High-definition image recording up to 3072 x 2048 pixels for exceptional detail clarity.
  • Smart H.265+/H.265 compression: Efficient bandwidth management and significant reduction in required storage space.
  • Drive capacity up to 16TB: Supports one SATA hard drive to meet long-term recording needs.

Wireless Wi-Fi Connectivity

Forget time-consuming installations and visible cables in your space. The built-in 2.4 GHz Wi-Fi module enables immediate and automatic pairing with compatible Dahua cameras, providing a stable signal and fast data transfer. This way, you can easily set up your security system while keeping the aesthetics of your space intact.

High Resolution and Smart H.265 Compression

Capture every critical detail with clarity reaching 6 Megapixels. Thanks to the advanced Smart H.265 compression algorithm, you maintain top video quality while saving up to 50% on bandwidth (bitrate) and hard drive storage space. Enjoy a crystal-clear image without burdening your network.

DMSS Remote Control

Have full control of your space, wherever you are, directly from your mobile phone. Through the free DMSS app for iOS and Android, you can monitor live channel footage, review recorded events, and receive instant notifications. P2P technology enables your device to connect quickly without complicated network settings.

Specifications

  • Manufacturer: DAHUA
  • Model: NVR1104HS-W-S2-CE
  • IP Channels: 4
  • Supported Resolution: Up to 6 Mpx (3072 x 2048 px)
  • Wi-Fi Standard: IEEE 802.11 b/g/n (2.4 GHz)
  • Bitrate: Up to 40 Mbps (16 Mbps via Wi-Fi)
  • Image Compression: Smart H.265 / H.265 / Smart H.264 / H.264 / MJPEG
  • Internal Drive Bay: 1 x SATA up to 16 TB
  • Video Outputs: 1 x HDMI, 1 x VGA
  • Audio Inputs/Outputs: 1 x CINCH In / 1 x CINCH Out (4 Audio Channels from cameras)
  • Network Ports: 1 x RJ-45 (10/100 Base-TX)
  • USB Ports: 2 x USB 2.0
  • Mobile App: DMSS (Android / iOS)
  • Network Protocols: HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, NTP, DHCP, DNS, P2P
  • Power Supply: 12 V DC / 1.5 A
  • Power Consumption: ≤ 10 W (without hard drive)
  • Operating Temperature: -10 °C to 45 °C
  • Dimensions: 260 x 248 x 48 mm
  • Weight: 0.83 kg

Package Contents

  • 1 x DAHUA NVR1104HS-W-S2-CE NVR Recorder
  • 1 x 12V DC / 1.5A Power Supply

Manufacturer

Manufacturer Details

Warnings & Safety Information

Specifications

Type
NVR

Type

NVR
Recorder that uses IP cameras and network connection for video recording and management.
Number of Channels Outputs
4

Number of Channels Outputs

The maximum number of cameras that can be connected to and managed by the recorder
Resolution
Full HD

Resolution

Full HD

It offers a sharp, clear image (2 Megapixels), allowing you to distinguish details, such as faces or objects, with clarity.
WiFi
Yes

WiFi

Specifies whether the device can connect wirelessly to your router (Wi-Fi)
Incoming Bandwidth
40 Mbps

Incoming Bandwidth: 40

This is the actual processing power of the recorder. It determines how much "load" (data) it can handle simultaneously from all cameras. A high number is necessary for many channels at high 4K resolution.


  • Example 1: You have 4 cameras of 5MP (each requiring ~8 Mbps). A total of ~32 Mbps is required. An NVR with 80 Mbps Incoming Bandwidth is more than enough.
  • Example 2: You have 16 cameras of 4K (each requiring ~12 Mbps). A total of ~192 Mbps is required. An NVR with 160 Mbps is not enough and will "lose" cameras or reduce their quality. Here, you need an NVR with at least 256 Mbps.
Gigabit Port
No

Gigabit Port

Specifies the speed of the wired network connection (LAN). "Gigabit" (1000 Mbps) is 10 times faster than standard "Fast Ethernet" (100 Mbps). It is essential for multi-channel 4K NVRs to handle the large volume of data from the cameras without delay.
Ports
HDMI, PoE, USB, VGA

Ports

HDMI
The digital output for video and audio. It is the standard way to connect the recorder to a modern TV or monitor (PC) and view your cameras in high resolution.
PoE

These ports allow you to connect IP cameras directly to the recorder. The camera receives power and transmits video through the same network cable, making installation extremely simple (plug-and-play).

USB

Its main use is to connect a mouse for menu navigation and settings. Additionally, it is used to connect a USB stick (flash drive) in order to export (take a backup of) specific video clips that interest you.

VGA

An analog video output. Used to connect the recorder to older computer monitors.
ONVIF
Yes

ONVIF

ONVIF is a protocol that allows cameras and recorders from different manufacturers to communicate with each other.
Video Compression
H.265+

Video Compression

H.265+

Smart version of H.265, designed for 4K/8K surveillance. It offers very low bandwidth in static scenes, combining high image quality with significant storage space savings.

  • The standard supports approximately 50–60 days of continuous recording on a 2TB hard drive

(Values and durations are indicative and based on standard settings. Actual performance may vary depending on resolution, frame rate, scene movement, and hardware.)

Smart AI Detection

Human Detection
No

Human Detection

The technology recognizes human shapes in real time. Ideal for security, area monitoring, or alarms, reducing false alarms caused by other objects.
Vehicle Detection
No

Vehicle Detection

Recognizes and tracks vehicles, distinguishing them from other objects. Useful for parking, traffic management, or road surveillance.

HDD

HDD Slots
1

HDD Slots

The number of internal hard drives (SATA) that can be installed simultaneously in the recorder.
Maximum Capacity per Disk
16 TB

Maximum Capacity per Disk

The maximum size (in TB - Terabytes) of the hard drive that the device "recognizes" and supports in each slot.
Includes Hard Drive
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

92,76 €
14,00 €   shipping cost
