• 4G Cat1 bands for China+India: B1/B3/B5/B8/B34/B38/B39/B40/B41
• 4G Cat1 bands for Europe: B1/3/5/7/8/20/28
• 4G Cat1 bands for Latin America: B2/3/4/5/7/8/28/66
• Mainboard size: Approximately 20 x 35 x 5.2 mm
• Battery: 1000mAh (built-in)
• Standby current: Approximately 10uA
• Operating current: Approximately 3mA (adjustable depending on functionality)
• Input/output interface: Built-in TYPE-C (compatible with magnetic charging)
• LED: Supports multicolor effects
• Sensor: 3D G sensor with hardware pedometer
• GPS chip: Single-band 5-mode (supports simultaneous GPS/GLONASS/BeiDou/Galileo/QZSS positioning)
• GPS accuracy: Within 1.5 meters GPS fix time: Cold start-38 seconds, Warm start-2 seconds
• GPS antennas: High-performance 15X15 ceramic antennas
• WIFI positioning accuracy: Within 50 meters
• GSM positioning accuracy: 50-200 meters (depends on the network)
• Speed accuracy: 0.1 m/s
• Materials: PC+ABS
• Antennas: 4G antennas
• Standby time: Approximately 25 days
• Charging current: 5V 500mA (adjustable based on battery capacity)
• Interfaces: UART/I2C/INT/GPIO for external functions

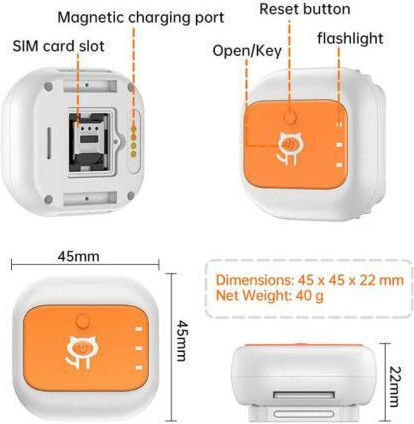

• Dimensions: 4.4 x 4.2 x 2.2 cm

1. Fully charge the product.

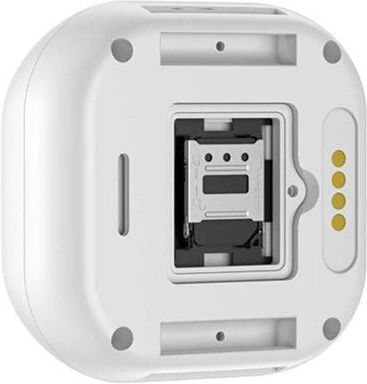

2. Insert the corresponding SIM card.

3. Follow the instructions in the manual to operate it and start using it.

• 1 x GPS pet tracker
• 1 x Magnetic charging cable
• 1 x User manual in English
• 2 x Replacement screws
• 1 x Lanyard
