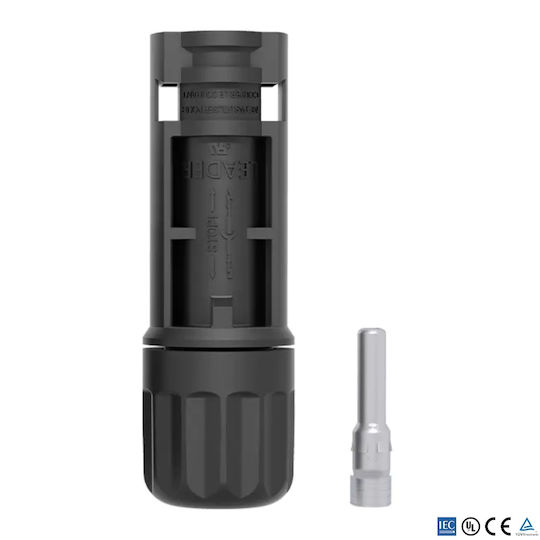

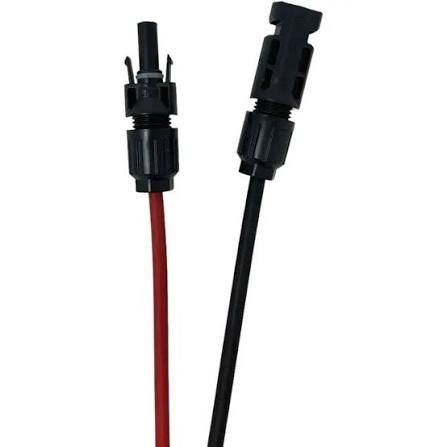

MC4 plugs are suitable for photovoltaic systems. They are available as pairs, male and female. T6 connectors use high-quality materials that guarantee long-term reliability. The lower contact resistance and higher current carrying capacity ensure high product performance. T6 connectors have an IP68 waterproof rating and can be used across a wide range of operating temperatures from -40°C to 90°C.

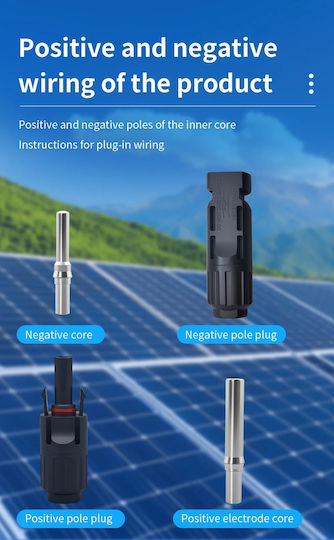

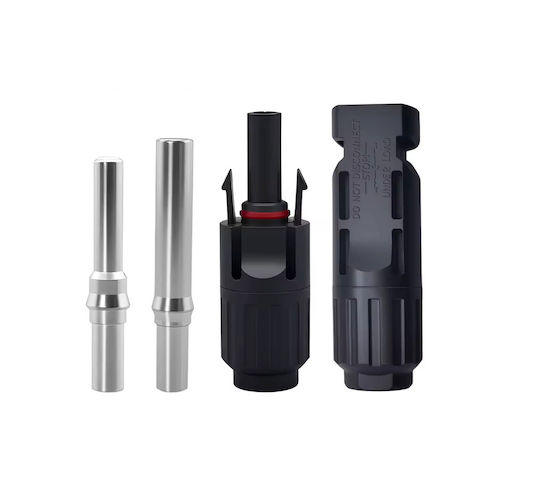

• Male/Female Set: Includes male and female connectors for complete custom cable assembly.
• T6 and T4 Interconnection: Any T6 or T4 products can be interconnected for flexible compatibility.
• High Current Capacity: Rated 41A (4mm² / 12 AWG) and 50A (6mm² / 10 AWG).
• Rated Voltage 1500V DC: High rated voltage suitable for modern photovoltaic systems.
• Low Contact Resistance: ≤0.25 mΩ for efficient power transfer.
• Waterproof IP68: Weather protection when combined for reliability outdoors.
• Wide Temperature Range: Operates reliably from -40°C to +90°C.
• Fire Resistance UL94-V0: Flame-retardant materials for enhanced safety.
• Compliance: Complies with RoHS, REACH, and NEC (no sealing sleeve required).

Technical Specifications

• Plug: 3 – 6 mm
• Rated Current: 30A
• Protection Rating: IP 67
• Ambient Temperature Range: -40º to 85º C
• Fully compliant with RoHS Standard
