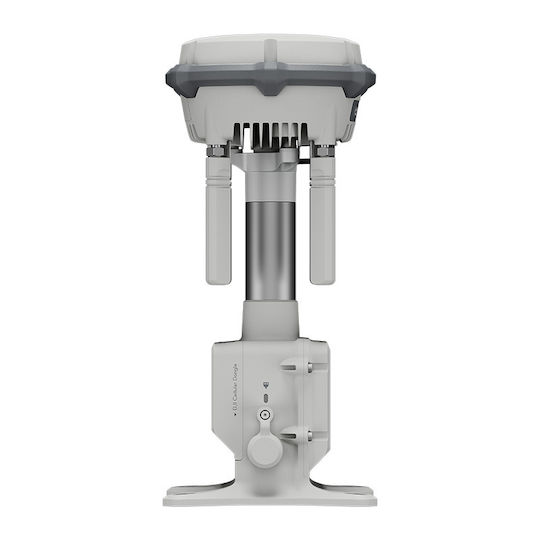

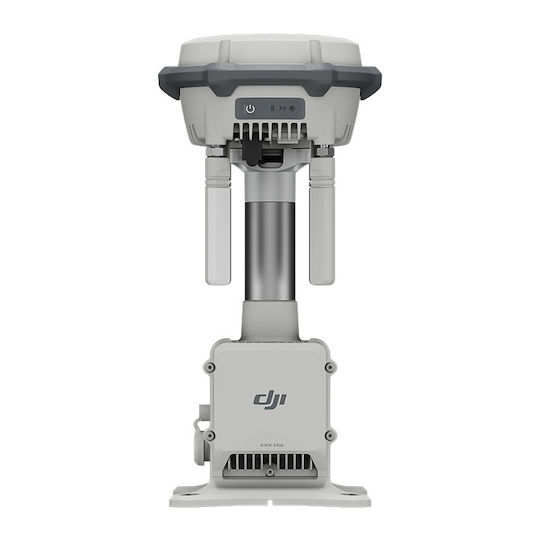

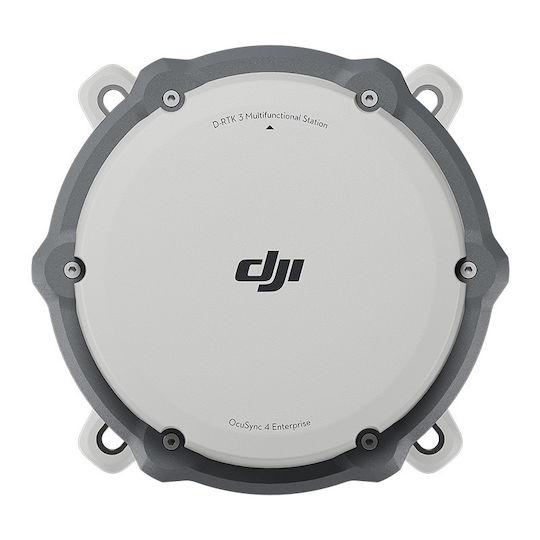

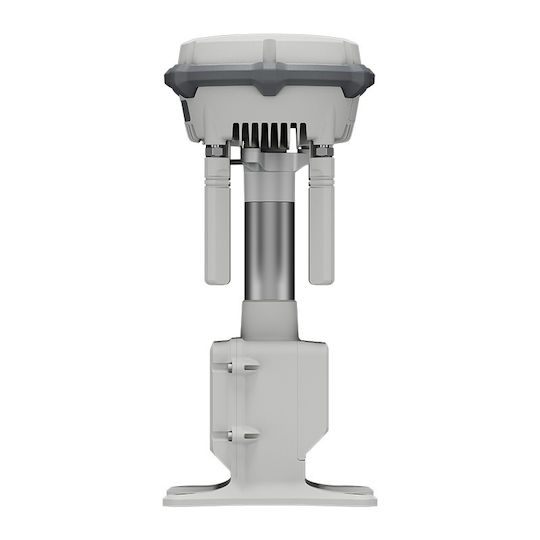

The DJI Relay fixed relay station is designed for use with the DJI Dock 3 and functions as a relay for Matrice 4 series drones. It supports Power-over-Ethernet (PoE) and installation in fixed or semi-permanent locations.
- Function: Relay
- Operating temperature range: -30 to 50 °C
- Protection rating: IP67
- Maximum operating altitude: 6000 m
- Operating time: Approximately 4 hours
- Dimensions: 163 × 344 mm
- Weight: Approximately 2.24 kg
- Transmission range: Up to 25 km unobstructed and up to 5 km with obstructions, depending on conditions and FCC/CE standards
- Antennas: 4 OcuSync 4 directional antennas
- Connections: USB Type-C, Ethernet (PoE)
- Battery type: LiPo
- Battery capacity: 6500 mAh
- Compatibility: DJI Dock 3, Matrice 4 series drones
