Afriso Electronic Heating Circulator Pump
Circulator Pumps

Afriso Electronic Heating Circulator Pump

The Afriso electronic heating circulator incorporates a Grundfos UPM3S AUTO pump with three control modes and AUTOADAPT functionality. The unit has a compact, insulated design and allows the flow and...

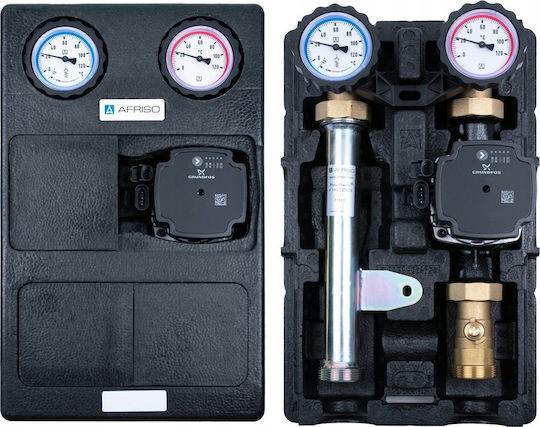

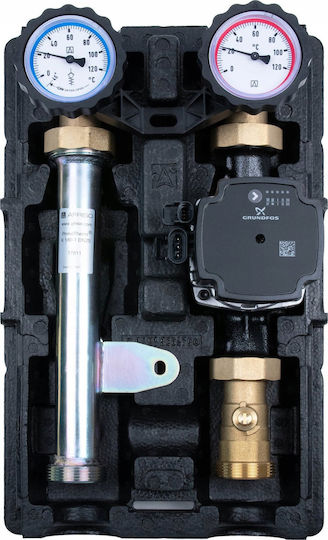

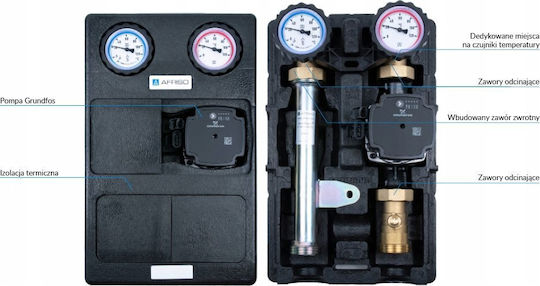

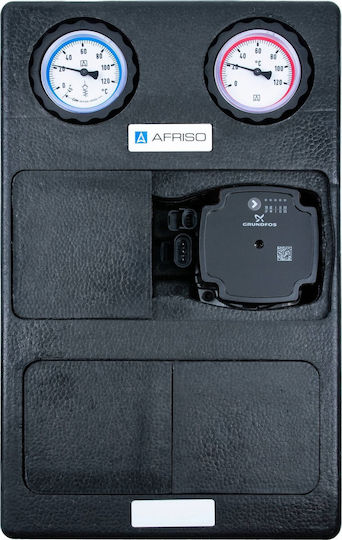

The Afriso electronic heating circulator incorporates a Grundfos UPM3S AUTO pump with three control modes and AUTOADAPT functionality. The unit has a compact, insulated design and allows the flow and return directions to be reversed.

  • Application: Heating

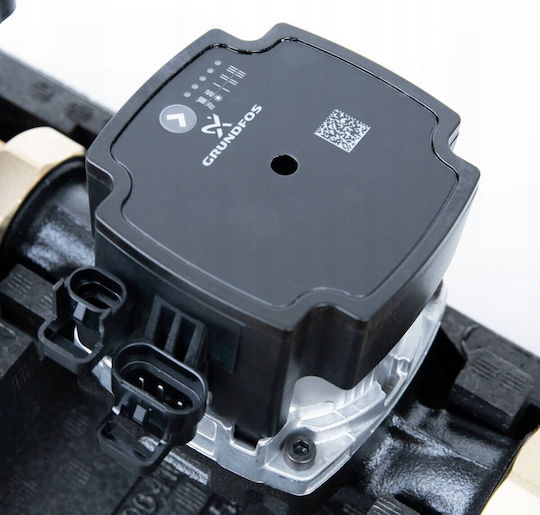

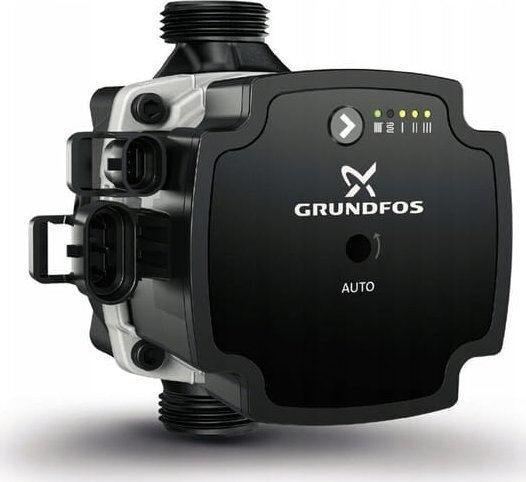

  • Pump: Grundfos UPM3S AUTO
  • Control modes: 3
  • Function: AUTOADAPT
  • Maximum head: 6 m
  • Kvs: 4.8 m³/h
  • Power...
See full description See full description

Learn more about invoicing
Review the product
Product report

Description

Description

The Afriso electronic heating circulator incorporates a Grundfos UPM3S AUTO pump with three control modes and AUTOADAPT functionality. The unit has a compact, insulated design and allows the flow and return directions to be reversed.

  • Application: Heating
  • Pump: Grundfos UPM3S AUTO
  • Control modes: 3
  • Function: AUTOADAPT
  • Maximum head: 6 m
  • Kvs: 4.8 m³/h
  • Power supply: 230 V AC
  • Boiler-side connections: G1 ½'
  • System-side connections: GW G1'
  • Maximum medium temperature: 110 °C
  • Permissible fluid temperature: 0–95 °C
  • Maximum ambient temperature: 70 °C
  • Power consumption: 2–42 W
  • Maximum operating pressure: 10 bar
  • Mains frequency: 50 Hz
  • Protection rating: IP44
  • Installation length: 180 mm

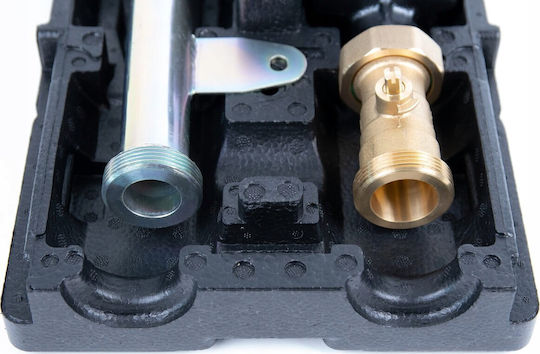

  • Isolation valves: On the flow and return

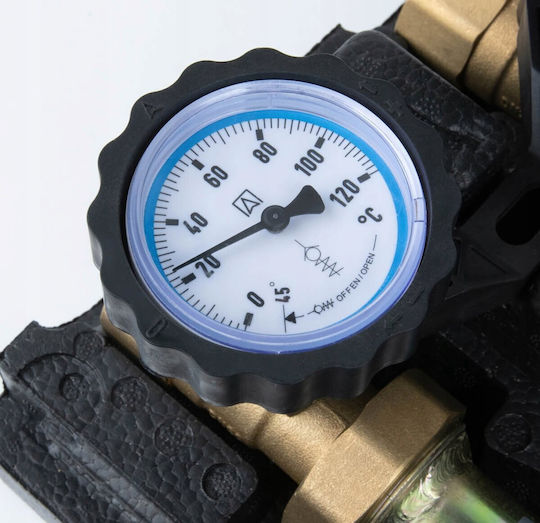

  • Thermometers: 2

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Product Details

Electronic
Yes

Electronic

Latest technology browsers. They provide high energy efficiency and consume up to 80% less electricity.
Application
Heating

Application

Heating
It concerns installations of closed circuit hot and cold water.
Maximum Pressure Head (m)
6 m

Maximum Pressure Head (m)

A professional engineer is required for the calculation. It is the sum of flow resistances and does not concern the static height of the installation.

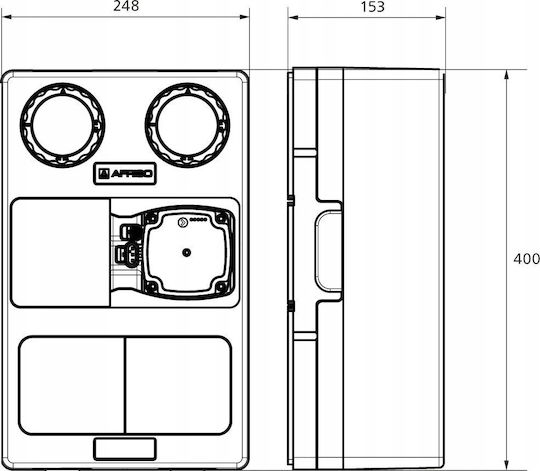

Dimensions

Connection Diameter
-
Length
-

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

The Afriso electronic heating circulator incorporates a Grundfos UPM3S AUTO pump with three control modes and AUTOADAPT functionality. The unit has a compact, insulated design and allows the flow and return directions to be reversed.

  • Application: Heating
  • Pump: Grundfos UPM3S AUTO
  • Control modes: 3
  • Function: AUTOADAPT
  • Maximum head: 6 m
  • Kvs: 4.8 m³/h
  • Power supply: 230 V AC
  • Boiler-side connections: G1 ½'
  • System-side connections: GW G1'
  • Maximum medium temperature: 110 °C
  • Permissible fluid temperature: 0–95 °C
  • Maximum ambient temperature: 70 °C
  • Power consumption: 2–42 W
  • Maximum operating pressure: 10 bar
  • Mains frequency: 50 Hz
  • Protection rating: IP44
  • Installation length: 180 mm
  • Isolation valves: On the flow and return
  • Thermometers: 2

Manufacturer

Manufacturer Details

Warnings & Safety Information

Product Details

Electronic
Yes

Electronic

Latest technology browsers. They provide high energy efficiency and consume up to 80% less electricity.
Application
Heating

Application

Heating
It concerns installations of closed circuit hot and cold water.
Maximum Pressure Head (m)
6 m

Maximum Pressure Head (m)

A professional engineer is required for the calculation. It is the sum of flow resistances and does not concern the static height of the installation.

Dimensions

Connection Diameter
-
Length
-

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
