Afriso Electronic Heating Circulator Pump
Circulator Pumps

Afriso Electronic Heating Circulator Pump

The mixing unit is designed as a link between the heating installation on the heat source side and the surface heating collector, such as underfloor heating. It prepares the medium at the appropriate...

The mixing unit is designed as a link between the heating installation on the heat source side and the surface heating collector, such as underfloor heating. It prepares the medium at the appropriate temperature for circulation through the collector's heating loops.

Features:

  • Can be used with collectors from 2 to 12 heating circuits.
  • Includes an ATM...
See full description See full description

Learn more about invoicing
Review the product
Product report

Description

Description

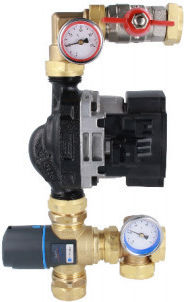

The mixing unit is designed as a link between the heating installation on the heat source side and the surface heating collector, such as underfloor heating. It prepares the medium at the appropriate temperature for circulation through the collector's heating loops.

Features:

  • Can be used with collectors from 2 to 12 heating circuits.

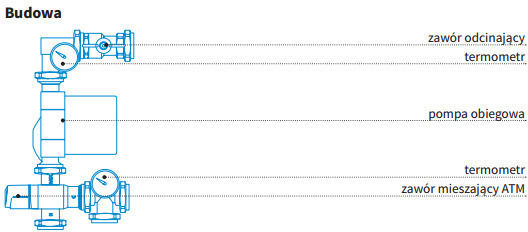

  • Includes an ATM thermostatic mixing valve, pump, two thermometers, isolation valve, and brass connecting fittings.
  • Connected to the installation on the heat source side via two GW G1″ nuts.
  • It is recommended to use ball shut-off valves.
  • Includes two brackets spaced 220 mm apart for brass collectors C7.

Technical specifications:

  • Maximum operating pressure: 5 bar
  • Maximum operating temperature: 90°C
  • ATM valve adjustment range: 20÷43°C
  • Kvs of ATM valve: 2.5 m³/h
  • ATM valve adjustment accuracy: ±2°C
  • Pump power supply: 230 V AC

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Product Details

Electronic
Yes

Electronic

Latest technology browsers. They provide high energy efficiency and consume up to 80% less electricity.
Application
Heating

Application

Heating
It concerns installations of closed circuit hot and cold water.
Maximum Pressure Head (m)
-

Maximum Pressure Head (m)

A professional engineer is required for the calculation. It is the sum of flow resistances and does not concern the static height of the installation.

Dimensions

Connection Diameter
25.4 mm
Length
-

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

The mixing unit is designed as a link between the heating installation on the heat source side and the surface heating collector, such as underfloor heating. It prepares the medium at the appropriate temperature for circulation through the collector's heating loops.

Features:

  • Can be used with collectors from 2 to 12 heating circuits.
  • Includes an ATM thermostatic mixing valve, pump, two thermometers, isolation valve, and brass connecting fittings.
  • Connected to the installation on the heat source side via two GW G1″ nuts.
  • It is recommended to use ball shut-off valves.
  • Includes two brackets spaced 220 mm apart for brass collectors C7.

Technical specifications:

  • Maximum operating pressure: 5 bar
  • Maximum operating temperature: 90°C
  • ATM valve adjustment range: 20÷43°C
  • Kvs of ATM valve: 2.5 m³/h
  • ATM valve adjustment accuracy: ±2°C
  • Pump power supply: 230 V AC

Manufacturer

Manufacturer Details

Warnings & Safety Information

Product Details

Electronic
Yes

Electronic

Latest technology browsers. They provide high energy efficiency and consume up to 80% less electricity.
Application
Heating

Application

Heating
It concerns installations of closed circuit hot and cold water.
Maximum Pressure Head (m)
-

Maximum Pressure Head (m)

A professional engineer is required for the calculation. It is the sum of flow resistances and does not concern the static height of the installation.

Dimensions

Connection Diameter
25.4 mm
Length
-

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

426,90 €
14,00 €   shipping cost
