Ferro Electronic Heating Circulator Pump
Circulator Pumps

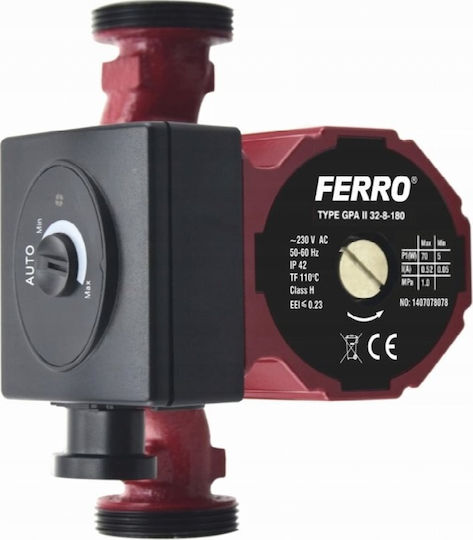

Ferro Electronic Heating Circulator Pump Code: 0607W

The Ferro 0607W electronic circulator is suitable for heating systems and for circulating clean liquids without solids, fibers, or oily substances. The motor is electronically controlled, while the...

The Ferro 0607W electronic circulator is suitable for heating systems and for circulating clean liquids without solids, fibers, or oily substances. The motor is electronically controlled, while the flow rate is adjusted via a potentiometer and automatically adapts to the system.

It can be used with water or a water-glycol mixture containing up to 30% glycol....

See full description See full description

Learn more about invoicing
Review the product
Product report

Description

Description

The Ferro 0607W electronic circulator is suitable for heating systems and for circulating clean liquids without solids, fibers, or oily substances. The motor is electronically controlled, while the flow rate is adjusted via a potentiometer and automatically adapts to the system.

It can be used with water or a water-glycol mixture containing up to 30% glycol. During installation, the shaft must be positioned horizontally.

  • Type: Electronic
  • Application: Heating
  • Maximum flow rate: 5 m³/h
  • Maximum head: 8 m
  • Power: 5–70 W
  • Voltage: ~230 V (−6% to +10%), 50/60 Hz
  • Protection class: IP 42
  • Fluids: Water and glycol up to 30%
  • Fluid temperature: +2 to +110 °C
  • Water connection: G1 2

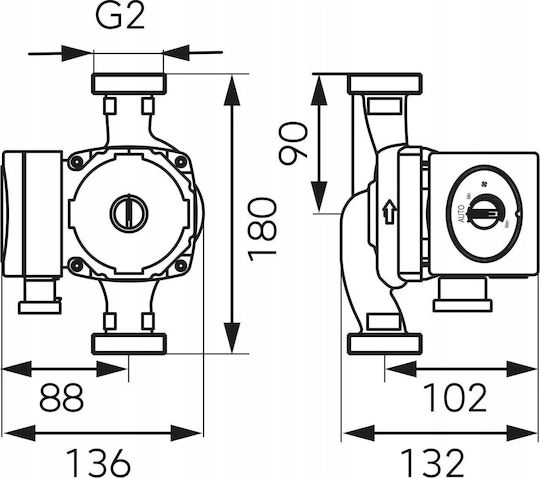

  • Connection spacing: 180 mm
  • Maximum operating pressure: 10 bar
  • Minimum inlet pressure: 0.50 bar up to 85 °C, 0.28 bar up to 90 °C, 1 bar up to 110 °C
  • Shaft position during installation: Horizontal

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Product Number
0607W

Product Details

Electronic
Yes

Electronic

Latest technology browsers. They provide high energy efficiency and consume up to 80% less electricity.
Application
Heating

Application

Heating
It concerns installations of closed circuit hot and cold water.
Maximum Pressure Head (m)
8 m

Maximum Pressure Head (m)

A professional engineer is required for the calculation. It is the sum of flow resistances and does not concern the static height of the installation.

Dimensions

Connection Diameter
-
Length
-

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

The Ferro 0607W electronic circulator is suitable for heating systems and for circulating clean liquids without solids, fibers, or oily substances. The motor is electronically controlled, while the flow rate is adjusted via a potentiometer and automatically adapts to the system.

It can be used with water or a water-glycol mixture containing up to 30% glycol. During installation, the shaft must be positioned horizontally.

  • Type: Electronic
  • Application: Heating
  • Maximum flow rate: 5 m³/h
  • Maximum head: 8 m
  • Power: 5–70 W
  • Voltage: ~230 V (−6% to +10%), 50/60 Hz
  • Protection class: IP 42
  • Fluids: Water and glycol up to 30%
  • Fluid temperature: +2 to +110 °C
  • Water connection: G1 2
  • Connection spacing: 180 mm
  • Maximum operating pressure: 10 bar
  • Minimum inlet pressure: 0.50 bar up to 85 °C, 0.28 bar up to 90 °C, 1 bar up to 110 °C
  • Shaft position during installation: Horizontal

Manufacturer

Manufacturer Details

Warnings & Safety Information
Product Number
0607W

Product Details

Electronic
Yes

Electronic

Latest technology browsers. They provide high energy efficiency and consume up to 80% less electricity.
Application
Heating

Application

Heating
It concerns installations of closed circuit hot and cold water.
Maximum Pressure Head (m)
8 m

Maximum Pressure Head (m)

A professional engineer is required for the calculation. It is the sum of flow resistances and does not concern the static height of the installation.

Dimensions

Connection Diameter
-
Length
-

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
