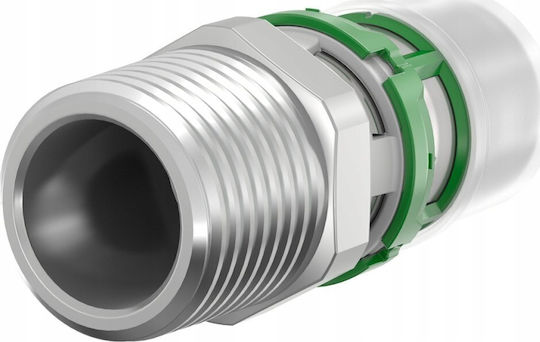

The Comap GZ MultiSkin press fitting joins multilayer pipes in plumbing, heating and cooling applications. It is made of tinned brass and features an improved hydraulic design that reduces pressure losses by an average of 17% compared with older models.
The removable Visu-Control ring allows visual and tactile inspection. Thanks to the “no press, no seal” technology, water flows during the pressure test if the fitting has not been pressed. The connection can be completed in 7 seconds.
- Type: Straight fitting
- Material: Tinned brass
- Diameter: 26 mm
- Thread: External tapered 26x3 - 3/4"
- Compatibility: Multilayer pipes
- Press profiles: TH, H and U
- Connection time: 7 seconds
- Visu-Control ring: Removable
- Protective cap: Included
- Domestic water temperature: +5 °C to +95 °C
- Maximum operating pressure for domestic water: 10 bar
- Heating and cooling temperature: -10 °C to +95 °C
- Maximum operating pressure for heating and cooling: 10 bar
- Rainwater temperature: -10 °C to +95 °C
- Maximum operating pressure for rainwater: 10 bar
Specifications
- Material
- Multilayered Pipe
- Compression Tube Fitting
- No
- Type
- -
Dimensions
- Diameter
- 26 mm
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
