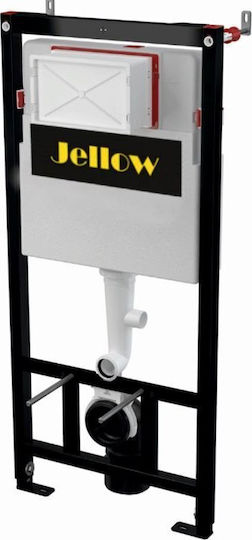

The Alcadrain concealed cistern has a rectangular, low-pressure metal frame for wall-hung toilets. It can be installed in front of a load-bearing wall or in a drywall partition. The cistern is a single-piece unit.
The water supply connection is at the rear or top. The frame has adjustable anchoring legs with a brake and expanded polystyrene insulation. The toilet and flush plate are not included.
- Installation: Concealed
- Shape: Rectangular
- Material: Powder-coated metal
- Pressure: Low
- Colour: Pink
- Wall type: Load-bearing wall or drywall partition

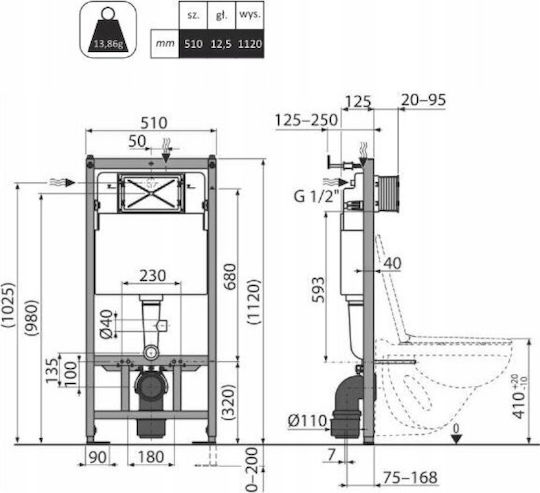

- Fixing bolt spacing: 180 mm or 230 mm
- Anchoring leg adjustment range: 0–200 mm
- Adjustable installation depth: 20–95 mm
- Installation depth: 125 mm
- Connection: 1/2″ for bidet-function boards
- Water supply: Rear or top
- Load test: 400 kg
- Package contents: Concealed frame
Specifications
- Placement
- Built-in
- Shape
- Rectangular
- Pressure
- Low
- Material
- Metallic
- Double Flow
- No
- Colour
- Pink
- Built-ins Installation
- for Drywall
- Seating
- No
Dimensions
- Height
- -
- Length
- -
- Length
- -
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
