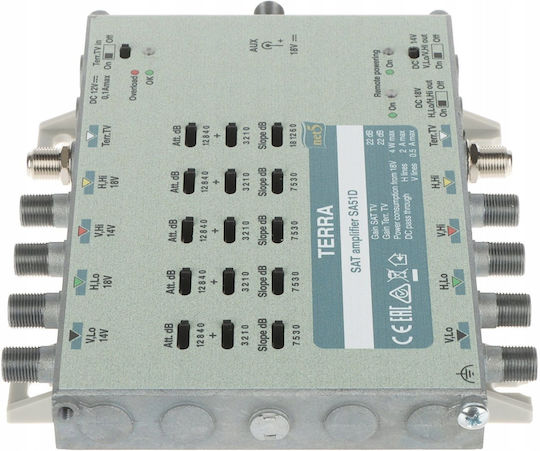

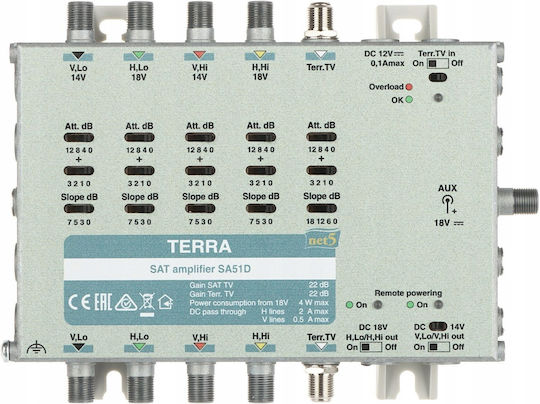

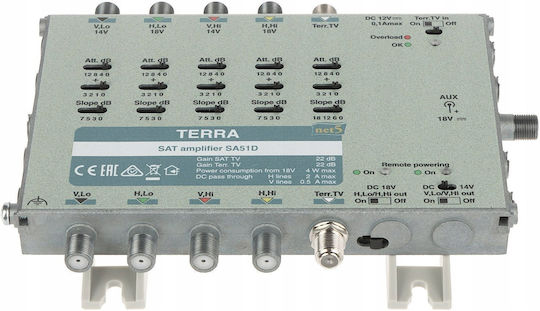

Amplifier for multiswitch SA-51D with 5 inputs and 5 outputs, designed for collective SMATV systems based on 5-input multiswitches. The gain level of the SAT and TV signals is adjusted via switches. The molded casing provides Class A shielding.

• Model: SA-51D
• Brand: Terra
• EAN (GTIN): 5907634566276
• Manufacturer code: 5907634566276
• Weight with packaging: 0.590 kg
• Inputs: 4x 950 MHz ... 2400 MHz, 1x 47 MHz ... 790 MHz
• Outputs: V.Lo, H.Lo, V.Hi, H.Hi, RTV
• SAT branch amplification: 22 dB
• SAT gain adjustment: 0 ... 15 dB, with 1 dB step
• SAT gain (cable pre-correction): 0 / 3 / 5 / 7 dB
• TV branch amplification: 22 dB
• TV gain adjustment: 0 ... 15 dB, with 1 dB step
• TV gain (cable pre-correction): 0 / 6 / 12 / 18 dB
• Isolation: SAT/SAT 30 dB, TV/SAT 30 dB
• Noise:
• Maximum SAT output level: 114 dBµV
• Maximum TV output level: 109 dBµV
• Pre-amplifier power supply: 12 V DC / 0.1 A
• DC pass-through (max): 2 A
• Power supply: 9 ... 18 V DC
• Power consumption: 4 W
• Operating temperature: -20 °C ... 50 °C
• Dimensions: 178 x 135 x 32 mm
• Weight: 0.53 kg
• Manufacturer / Brand: TERRA
