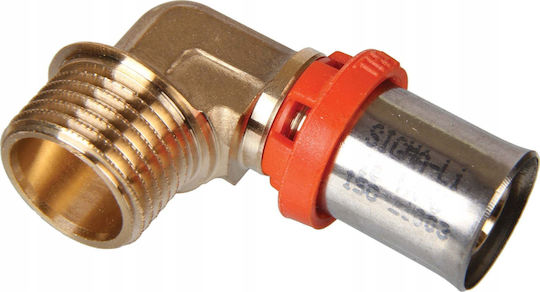

The corner GZ 20x1/2 PEX is a component of the SiGMA-Li Premium system for central heating and domestic hot water installations. It features pressed brass connectors and is suitable for pipe connection.

• Connection material 1: brass
• Surface protection and treatment of connection 1: raw/uncoated
• Connection material 2: brass
• Surface protection and treatment of connection 2: raw/uncoated
• Model/shape: angle
• Model: one-piece
• Bend angle: 90°
• Outer diameter of connection pipe 1: 20 mm
• Connection 1: pressed sleeve
• Nominal diameter of connection 2: 1/2 inch (15)
• Connection 2: external metric thread
• Sealing material: ethylene-propylene-diene rubber (EPDM)
• Maximum operating pressure at 20°C: 10 bar
• With seals: Yes
• Brand: Sigma
• Weight: 0.07 kg
