Rehau Brass Pipe Elbow 20mm
Pipe Elbow Fittings

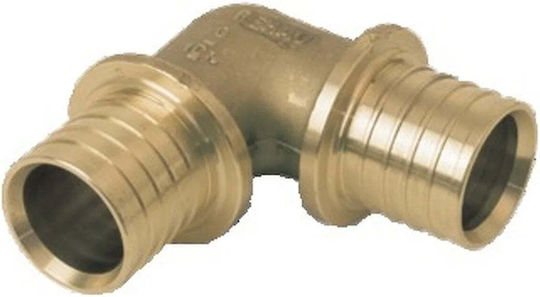

Rehau Brass Pipe Elbow 20mm

The Rehau 20x1.9/90° SDR11 RAUPEX pipe elbow is a one-piece fitting made of brass. It has a 90° angle and a DN 15 connection at both ends, with an outer connection diameter of 20 mm. It is suitable...

The Rehau 20x1.9/90° SDR11 RAUPEX pipe elbow is a one-piece fitting made of brass. It has a 90° angle and a DN 15 connection at both ends, with an outer connection diameter of 20 mm. It is suitable for construction and gardening applications.

The permitted medium temperature for continuous operation ranges from -1 to 70 °C. The maximum operating pressure is...

See Description & Specifications See Description & Specifications
14 90 €
Delivery Wed, 18 Nov - Tue, 24 Nov
14,00 €   shipping cost
Sent from Greece
From Getters 4.5 (115)
4.5 (115 reviews)
Greece
8 pieces
See Hose Connections on the page of Getters

Shop selection criteria

Why do we recommend buying from this shop?

We don’t only look at the price. We weigh different factors to find an offer that combines a good price, fast delivery and a reliable purchase.

  • Product price

    We calculate the total price you will pay and any discounts available from the shop.

  • Shipping & delivery time

    We check how quickly the product can be shipped and when you will receive it, based on your address.

  • Shop reliability

    We look at how often shops complete their orders successfully and how consistently they serve their customers.

  • Official reseller

    Where available, we take into account whether the shop is an official reseller of the brand.

Learn more about invoicing
Review the product
Product report

Description & Specifications

The Rehau 20x1.9/90° SDR11 RAUPEX pipe elbow is a one-piece fitting made of brass. It has a 90° angle and a DN 15 connection at both ends, with an outer connection diameter of 20 mm. It is suitable for construction and gardening applications.

The permitted medium temperature for continuous operation ranges from -1 to 70 °C. The maximum operating pressure is 15.8 bar at 20 °C and 6.8 bar at the maximum medium temperature.

  • Material: Brass
  • Construction: One-piece
  • Angle: 90°
  • Nominal connection diameter: DN 15 at both ends
  • Outer connection diameter: 20 mm at both ends
  • Medium temperature: From -1 to 70 °C in continuous operation
  • Maximum operating pressure: 15.8 bar at 20 °C and 6.8 bar at the maximum medium temperature
  • Length: 57 mm
  • Connection length: 44 mm at both ends
  • Approvals: VdS, UL, ULC, KIWA, DVGW, Gastec QA
  • Seal: Other material
  • Package contents: 1 piece

Manufacturer

Manufacturer Details

Warnings & Safety Information

Specifications

Material
Brass
for Pex Pipe
No
Type
-

Dimensions

Diameter
20 mm
