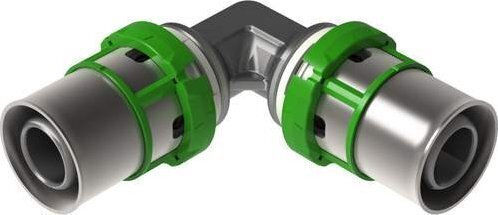

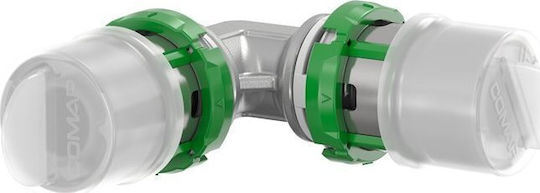

Comap 7090W40 Elbow made of stainless steel, with double pressed connection and EPDM gaskets. It is part of the MultiSkin system and is compatible with TH, H, U profiles and various pressing tools from different manufacturers.

The shaped body protects the o-ring gasket during installation. It features a removable Visu-Control® ring and an inspection window.

• Length: 144 mm
• Angle: 90°
• Outer diameter of connections: 40 mm and 40 mm
• Wall thickness: 3.5 mm
• Connection types: persmof
• Improved hydraulic performance: Yes
• Inspection window: Yes
• Compatibility with profiles: TH, H, U
• DVGW water certificate: Yes
• Maximum medium temperature: 70 °C
• Medium temperature range: 0 - 110 °C
• Maximum operational pressure at 20°C: 10 bar
• Maximum operational pressure at maximum medium temperature: 10 bar
