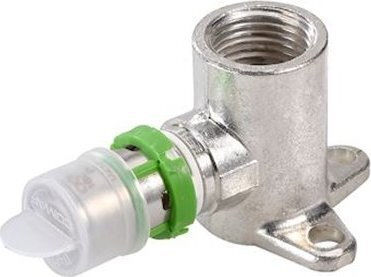

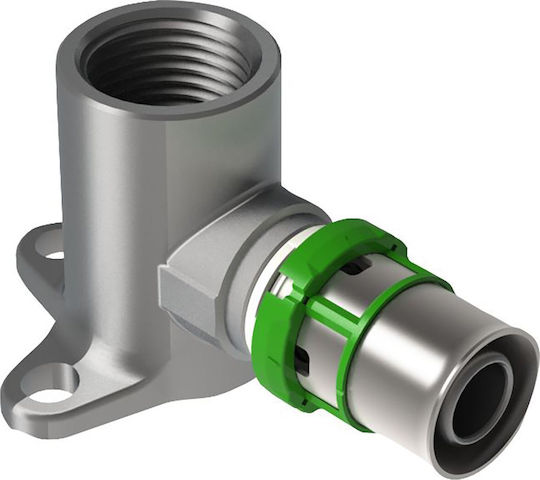

Wall-mounted corner GW pressed MultiSkin made of brass with tin-plated coating. The connection is of Persmof type and intended for plumbing applications.

• Material: brass
• Size: 20x1/2''
• Coating: tin-plated
• Connection type: Persmof
• Maximum medium temperature: 70 °C
• Distance from the wall: 40 mm
• Connection length 1: 50 mm
• Connection length 2: 23 mm
• Nominal connection diameter 1: DN 15
• Nominal connection diameter 2: DN 15
• Maximum operating pressure at 20 °C: 10 bar
• Wall thickness of connection 2: 7 mm
• Usable length of connection 1: 26 mm
• Usable length of connection 2: 23 mm
• Outer diameter of connection pipe 1: 20 mm
• Outer diameter of connection pipe 2: 20 mm
